Throttle Position Sensor: Locations

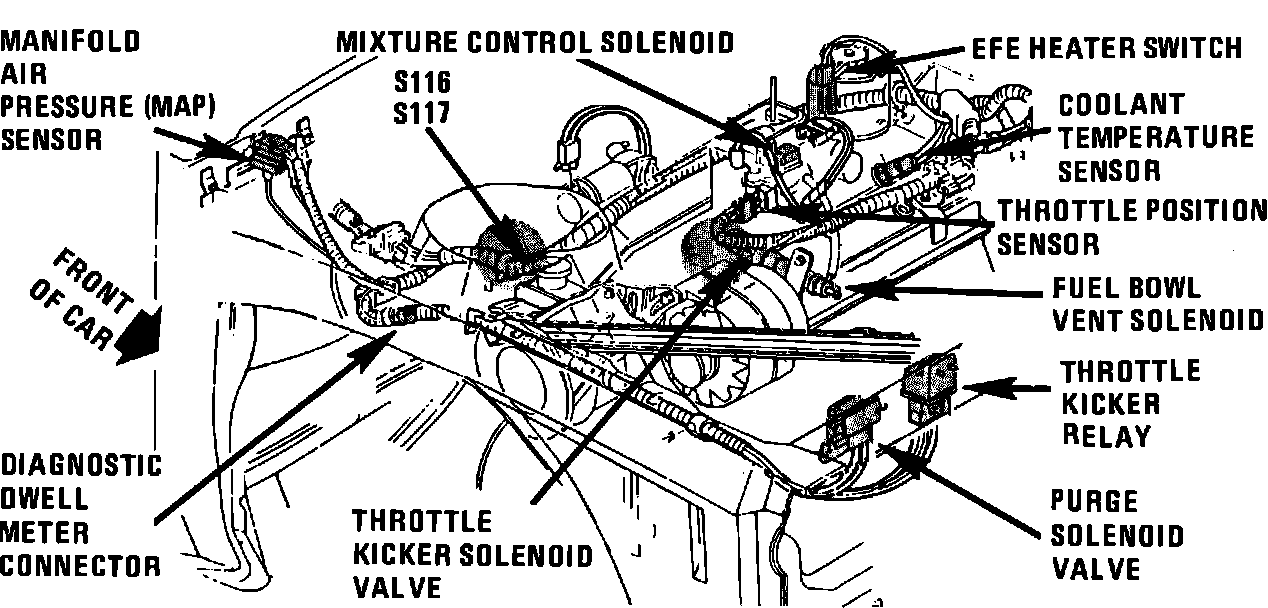

RH Top Front Of Engine.:




In Carburetor

Applicable to: 1984-85 Celebrity w/V6-173 VIN X



LH Rear Of Engine.:




In Carburetor

Applicable to: 1984-85 Celebrity w/4-151
