Manual Shift Linkage Adjust
1. Place shift control lever in park position.
2. Loosen cable pin retaining nut at transmission lever.
3. Place transmission lever in park position by rotating lever clockwise to last detent position.

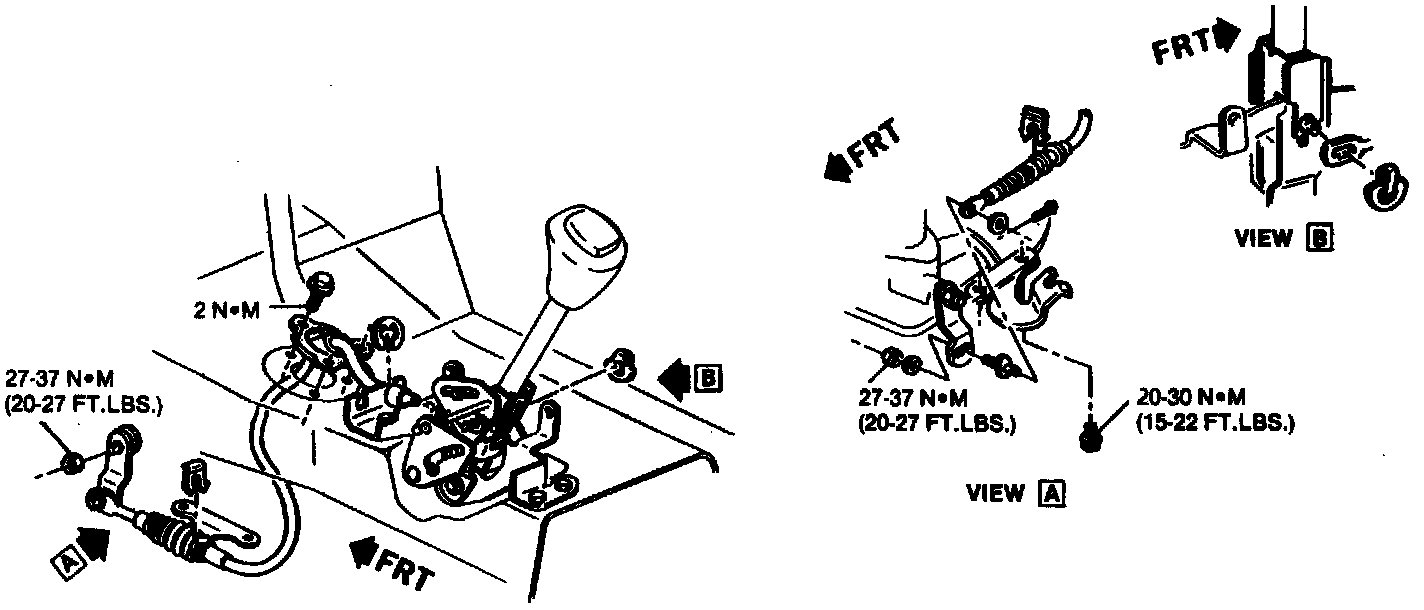

4. Torque cable pin attaching nut at transmission lever as shown in Figure.
