System Specifications

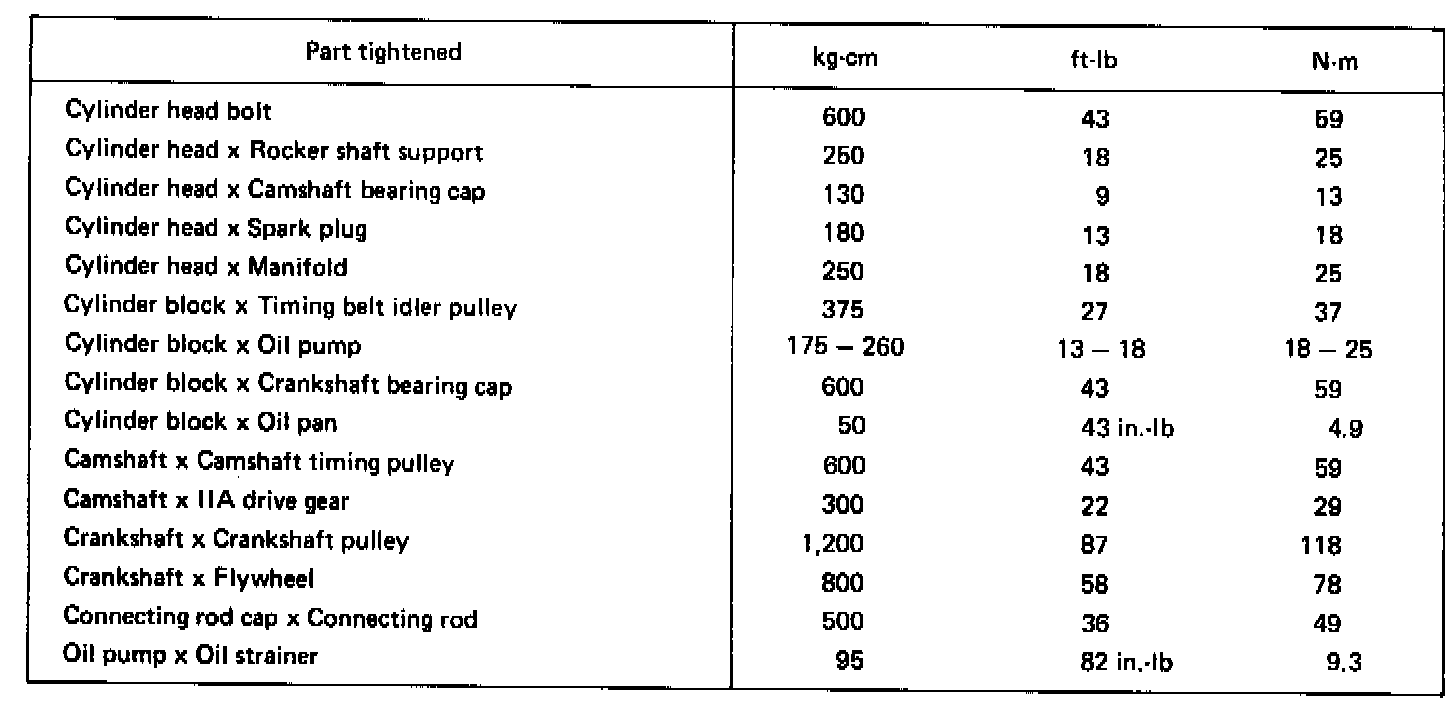

Torque Specifications

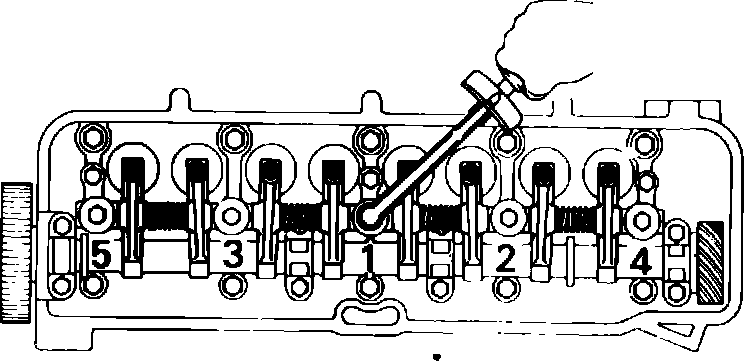

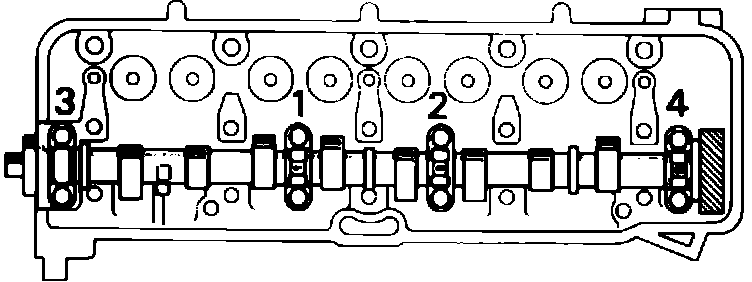

Fig. 2 Rocker arm assembly attaching bolt removal sequence. 3A-C, 4A-C & 4A-LC engines.:

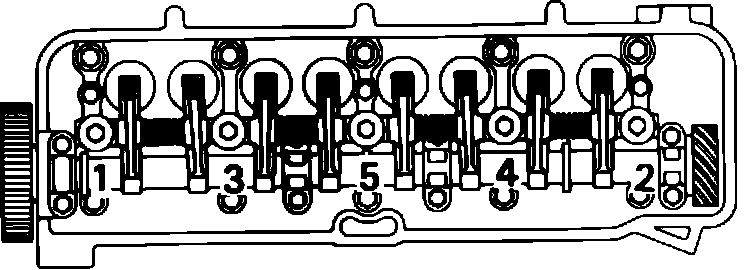

Fig. 6 Rocker arm assembly attaching bolt tightening sequence.:

Rocker Arm Removal/Torque Sequence

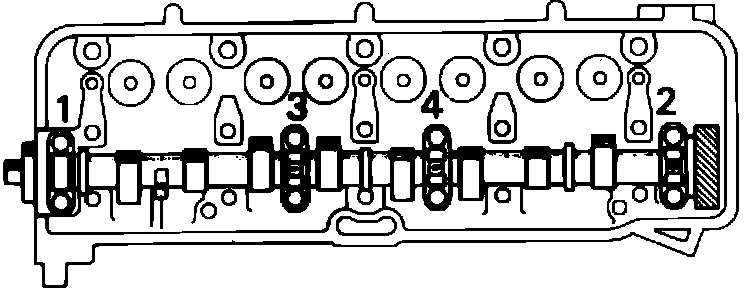

Fig. 4 Camshaft bearing cap bolt removal sequence.:

Fig. 5 Camshaft bearing cap bolt tightening sequence.:

Camshaft Bearing Cap Removal/Torque Sequence

Fig. 1 Cylinder head bolt removal sequence.:

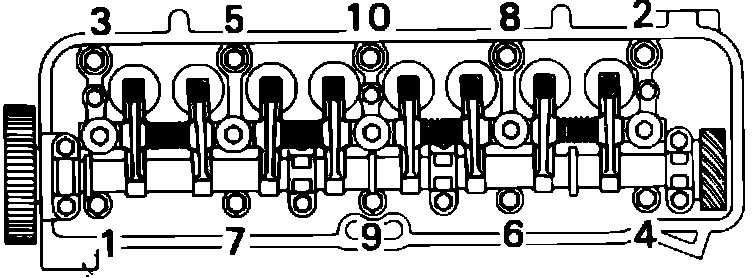

Fig. 7 Cylinder head bolt tightening sequence.:

Cylinder Head Removal/Torque Sequence

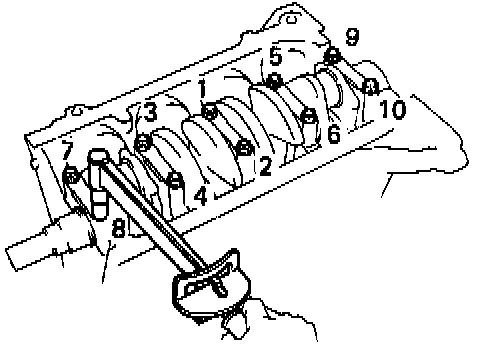

Main Bearing Cap Torque Sequence

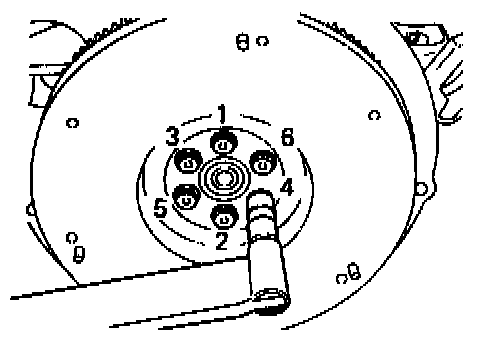

Flywheel-A/T Drive Plate Torque Sequence
