Front Toe Adjustment

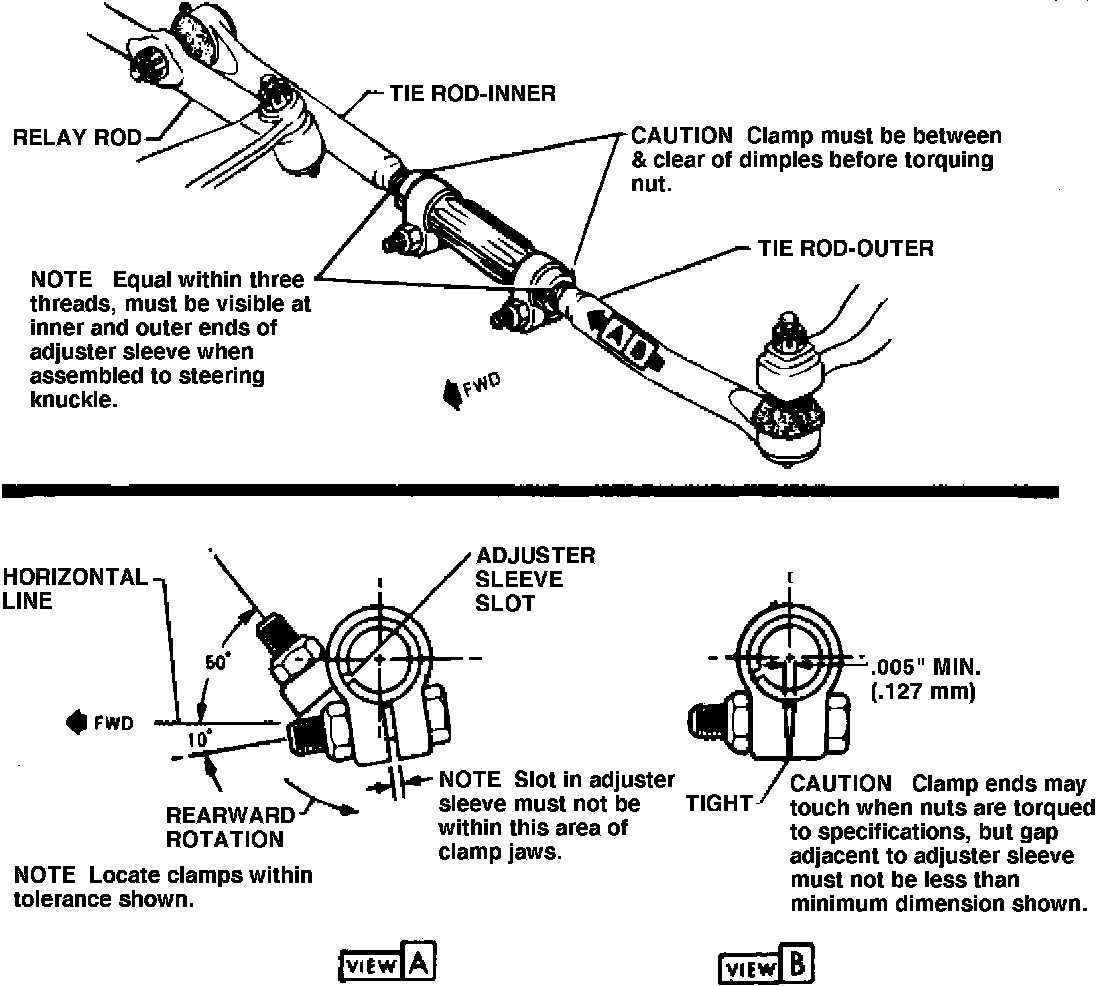

Fig. 2 Tie rod clamp & sleeve positioning:

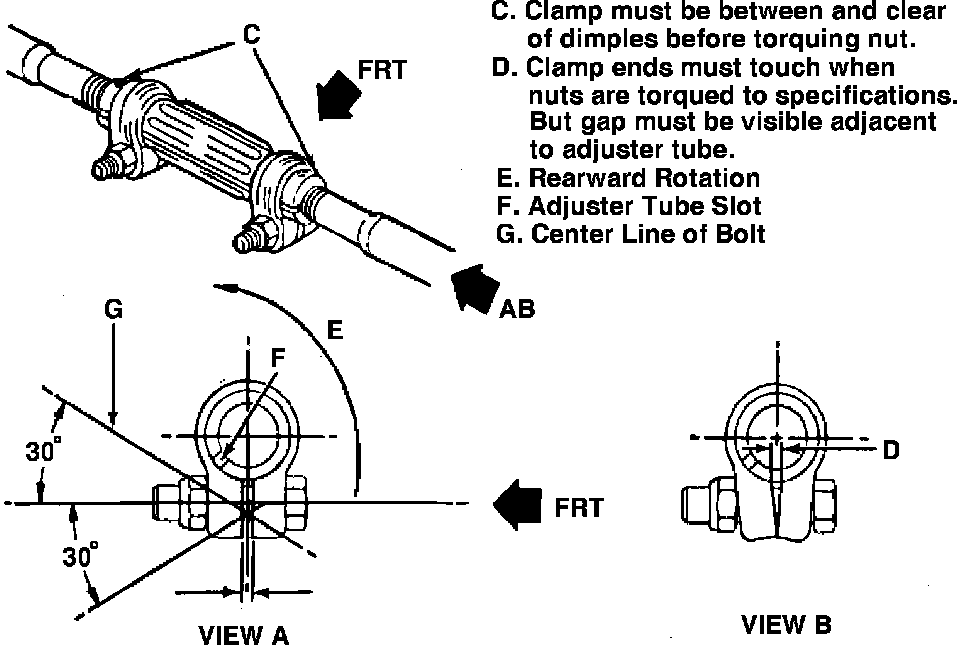

(Figure 3) Tie rod clamp & sleeve positioning:

- To adjust, loosen clamp bolts at each end of steering tie rod adjustable sleeves.
- With steering wheel in straight ahead position, turn tie rod adjusting sleeves to obtain proper adjustment.
- After adjusting, check that number of threads showing on each end of sleeve are equal and that the tie rod end housings are at the right angles to steering arm.
- Position tie rod clamps and sleeves, Figs. 2 and 3, and torque nuts to 15 ft. lbs.
