Brake Shoe: Service and Repair

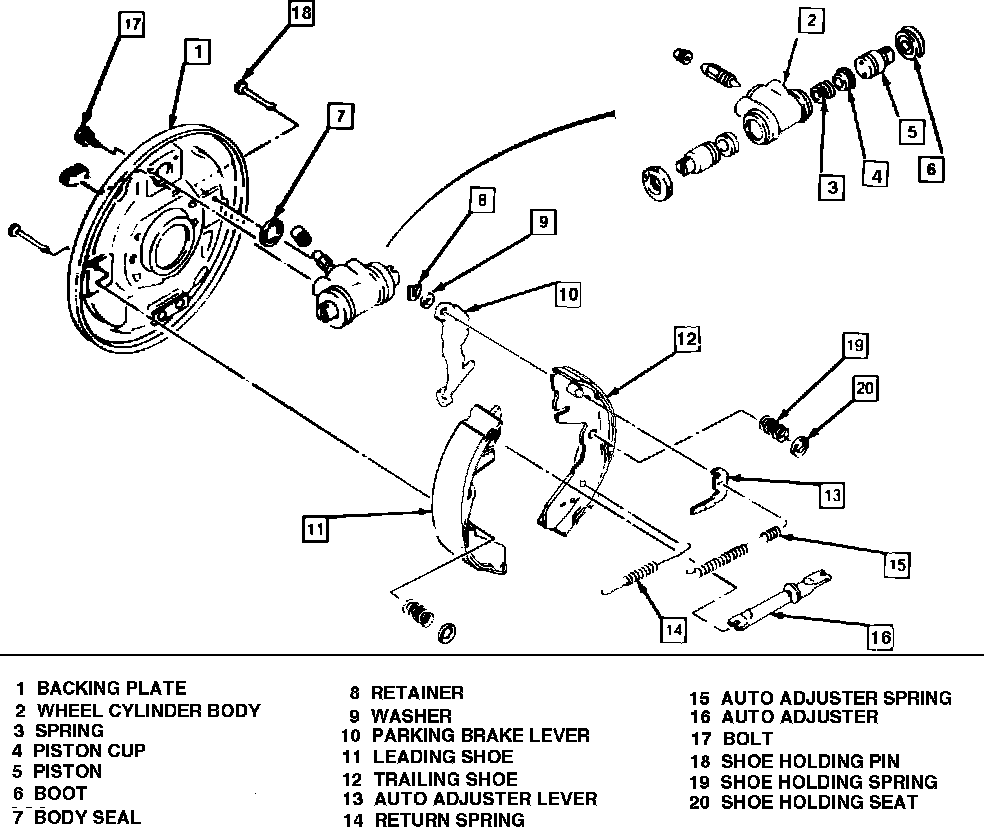

Fig. 1 Exploded view of rear drum brake assembly:

1. Raise and support rear of vehicle.
2. Remove wheels and brake drums.
3. Remove return spring and auto adjuster spring.
4. Remove leading shoe hold-down spring and pin, Fig. 1.
5. Remove leading shoe and auto adjuster.
6. Remove trailing shoe hold-down spring and pin, then shoe.
7. Remove parking brake cable and lever.
8. Apply suitable grease to the supports on the backing plate where the shoes contact.

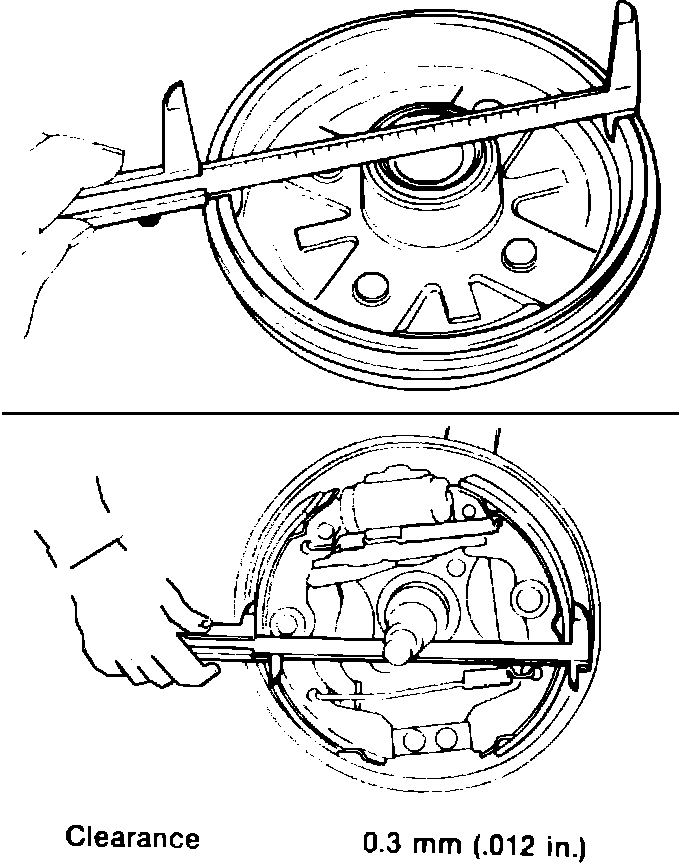

Fig. 2 Drum brake adjustment:

9. Reverse procedure to install. Take care not to damage wheel cylinder boots.
