Water Pump: Service and Repair

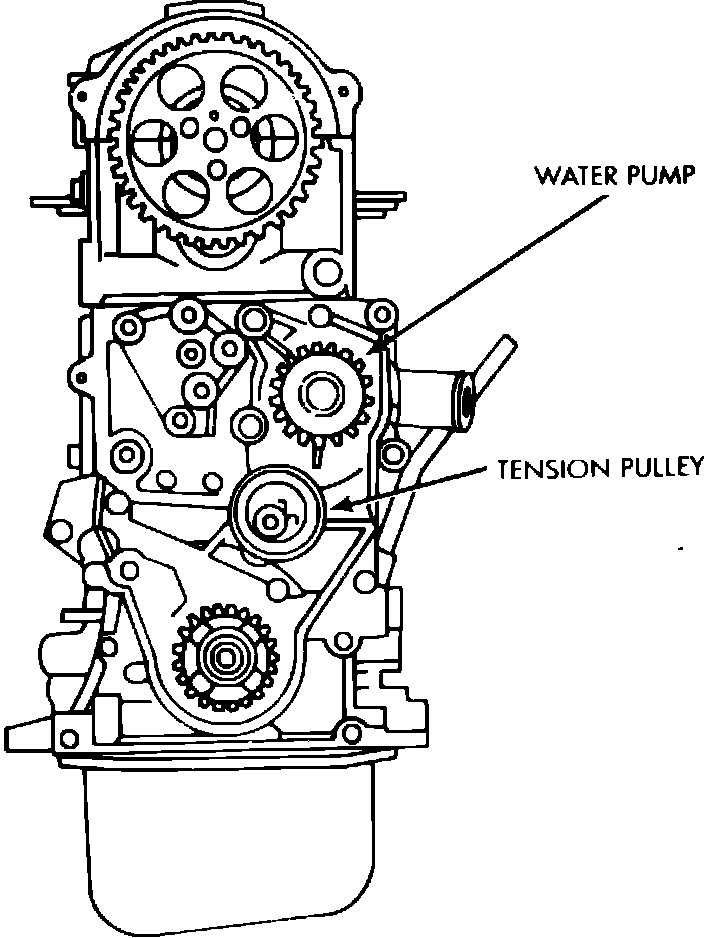

Fig. 16 Water pump replacement:
1.
Drain
cooling system.
2.
Remove power steering pump
drive belt.
3.
Remove
timing belt as previously described.
4.
Remove tension pulley and tension spring.
5.
Remove water pump attaching bolts and the water pump,
Fig. 16. 6.
Reverse procedure to install. Torque bolts to 17. 4 ft. lbs.
