Clutch: Service and Repair

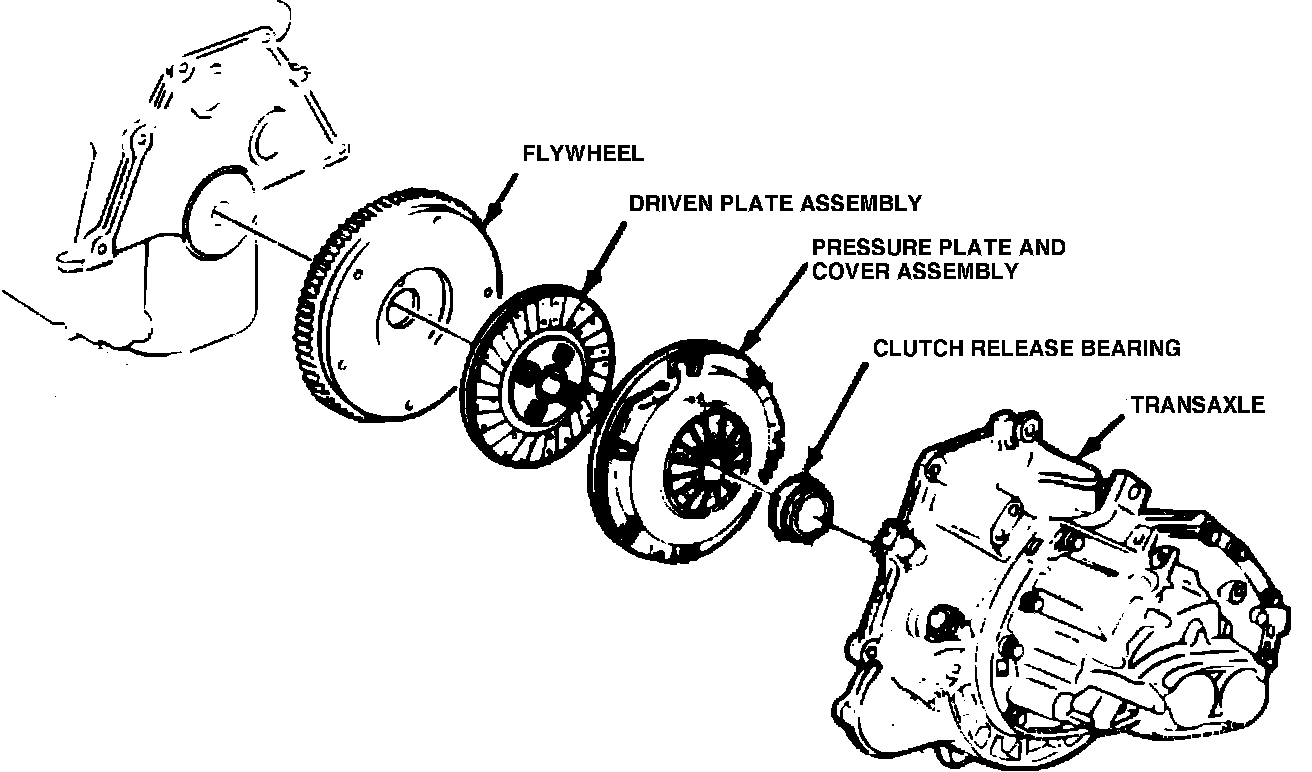

Fig. 3 Exploded view of clutch assembly:

1. Remove transaxle as described under ``Transaxle, Replace.''
2. Install tool No. J-35282 or equivalent into pilot bearing to support clutch.
3. Mark clutch cover and flywheel, if not already done, for assembly reference.
4. Loosen clutch cover-to-flywheel attaching bolts evenly, one at a time, until spring pressure is relieved.
5. Remove bolts, clutch cover, disc and tool from flywheel, Fig. 3.
6. Reverse procedure to install. Lubricate input shaft splines and release bearing with suitable grease during installation.
