Tab Mount
Disc Brake Caliper:
Compressing Piston:
1.
Remove the caliper assembly. Refer to
Brake Caliper Removal. Caliper Removal 2.

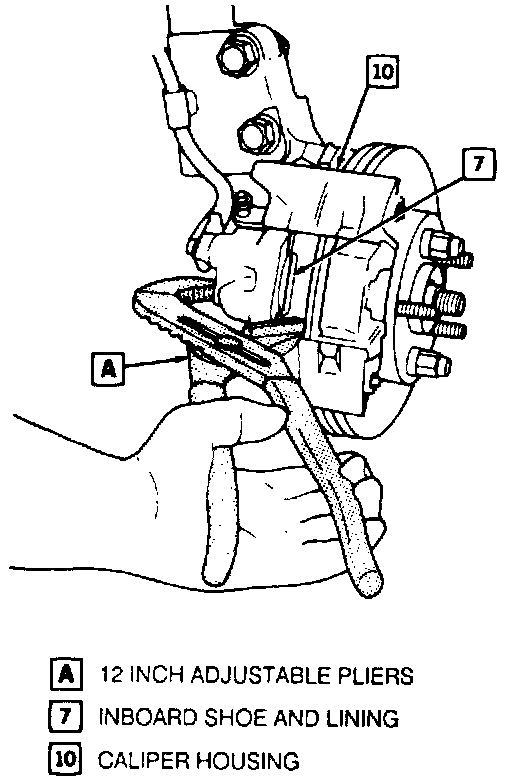

Remove shoe and lining assemblies from caliper. To remove outboard shoe and lining use 12-inch adjustable pliers to straighten bent over shoe tabs.
3.
Remove sleeves from mounting bolt holes.
4.
Remove bushings from grooves in mounting bolt holes.
5.
Position piston to bottom of bore.
