Without A/C

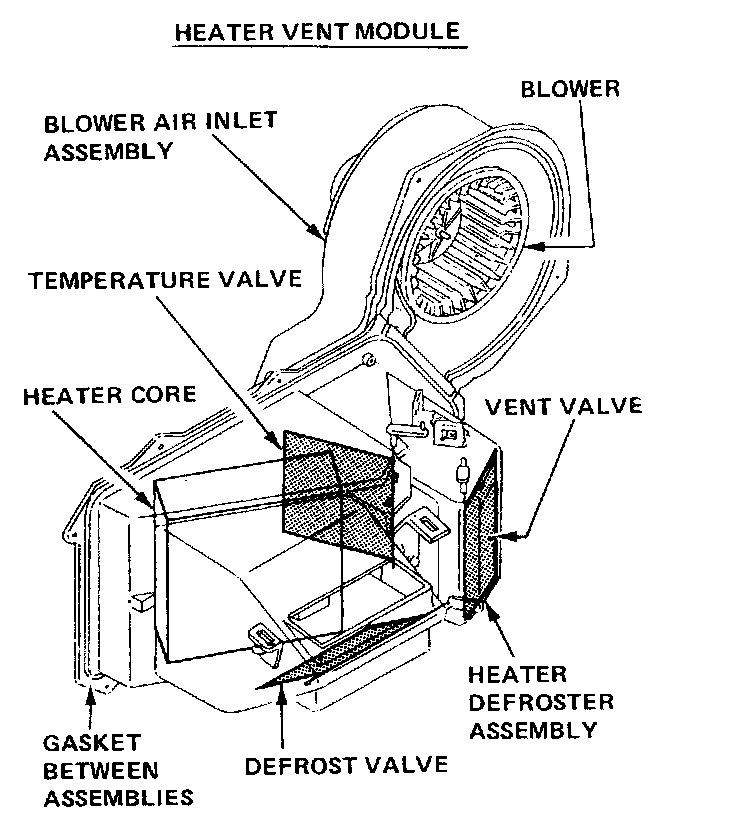

Heater Core

Remove or Disconnect

1. Drain cooling system.
2. Remove heater inlet and outlet hoses.
3. Remove radio noise suppression strap.
4. Remove heater core cover retaining screws and remove cover.
5. Remove heater core.

Install or Connect

1. Install Heater core.
2. Install heater core cover retaining screws and cover.
3. Install radio noise suppression strap.
4. Connect heater inlet and outlet hoses.
5. Fill cooling system and check for leaks.
