Waterleak - Diagnostic Guide

File In Section: 10 - Body

Bulletin No: 53-10-21

Date: November, 1995

INFORMATION

Subject:
Waterleak Diagnostic Guide

Models:
1987-96 Chevrolet Beretta, Corsica Condition








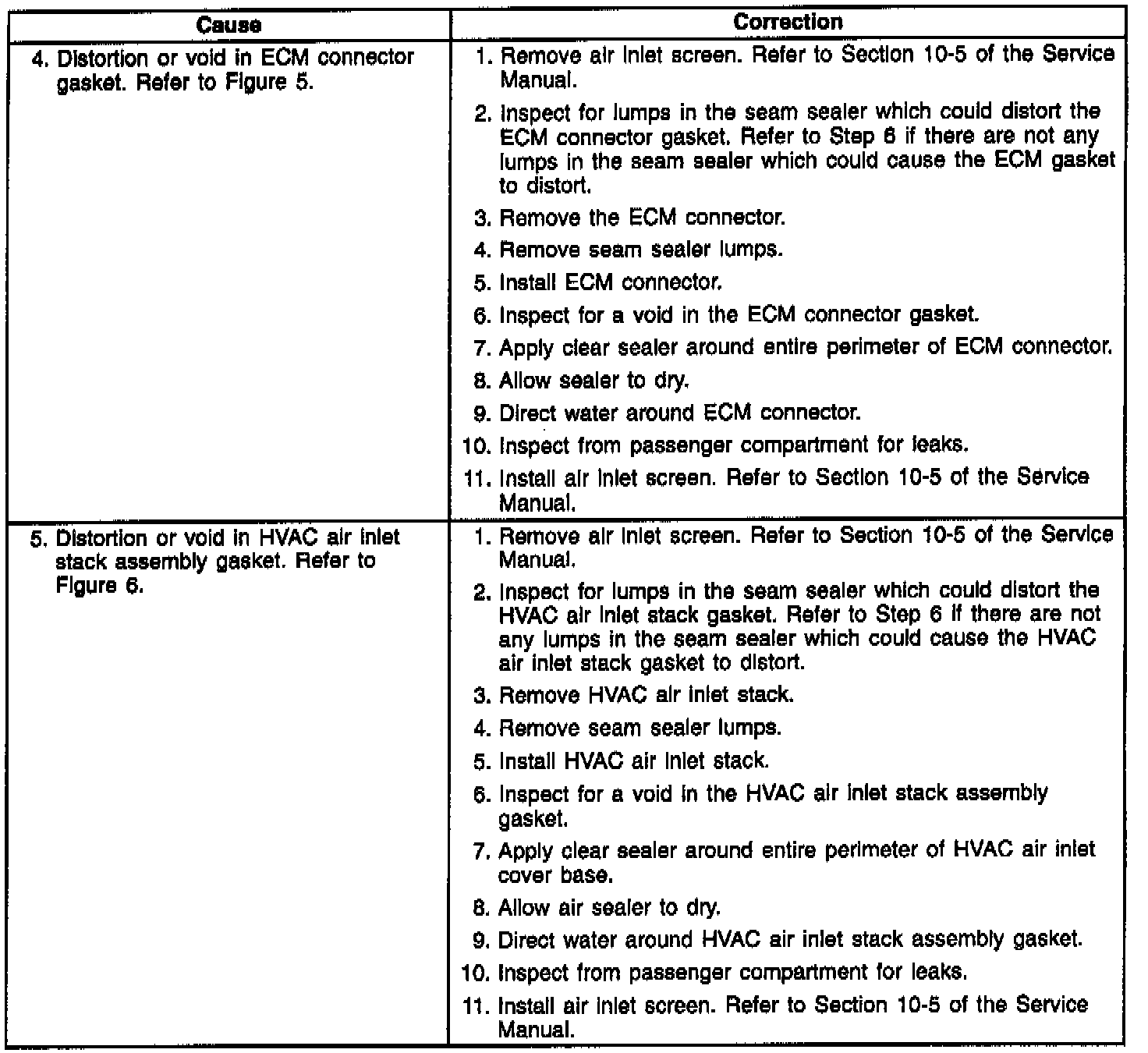

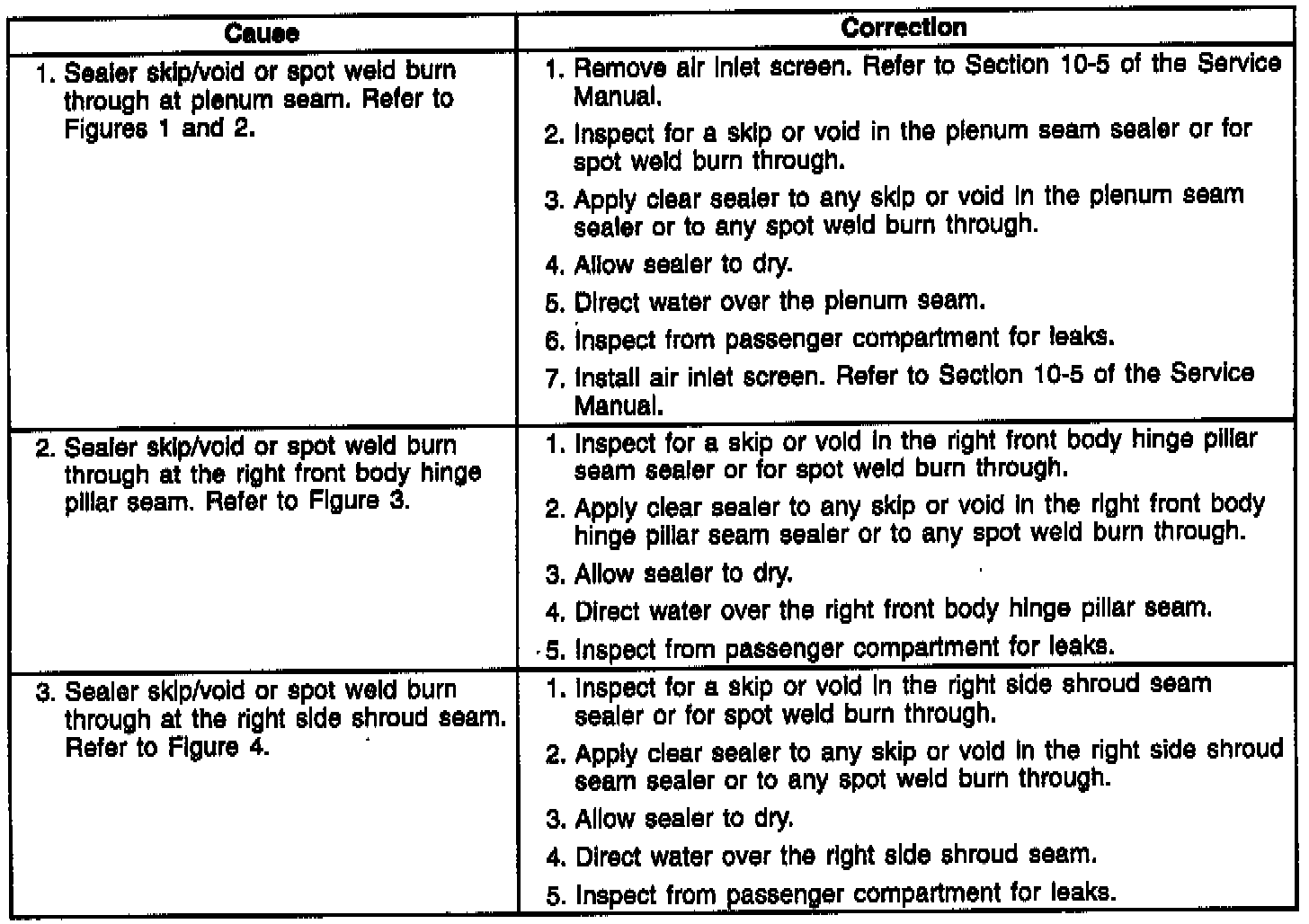

Carpet Wet Under Right Side Of Instrument Panel











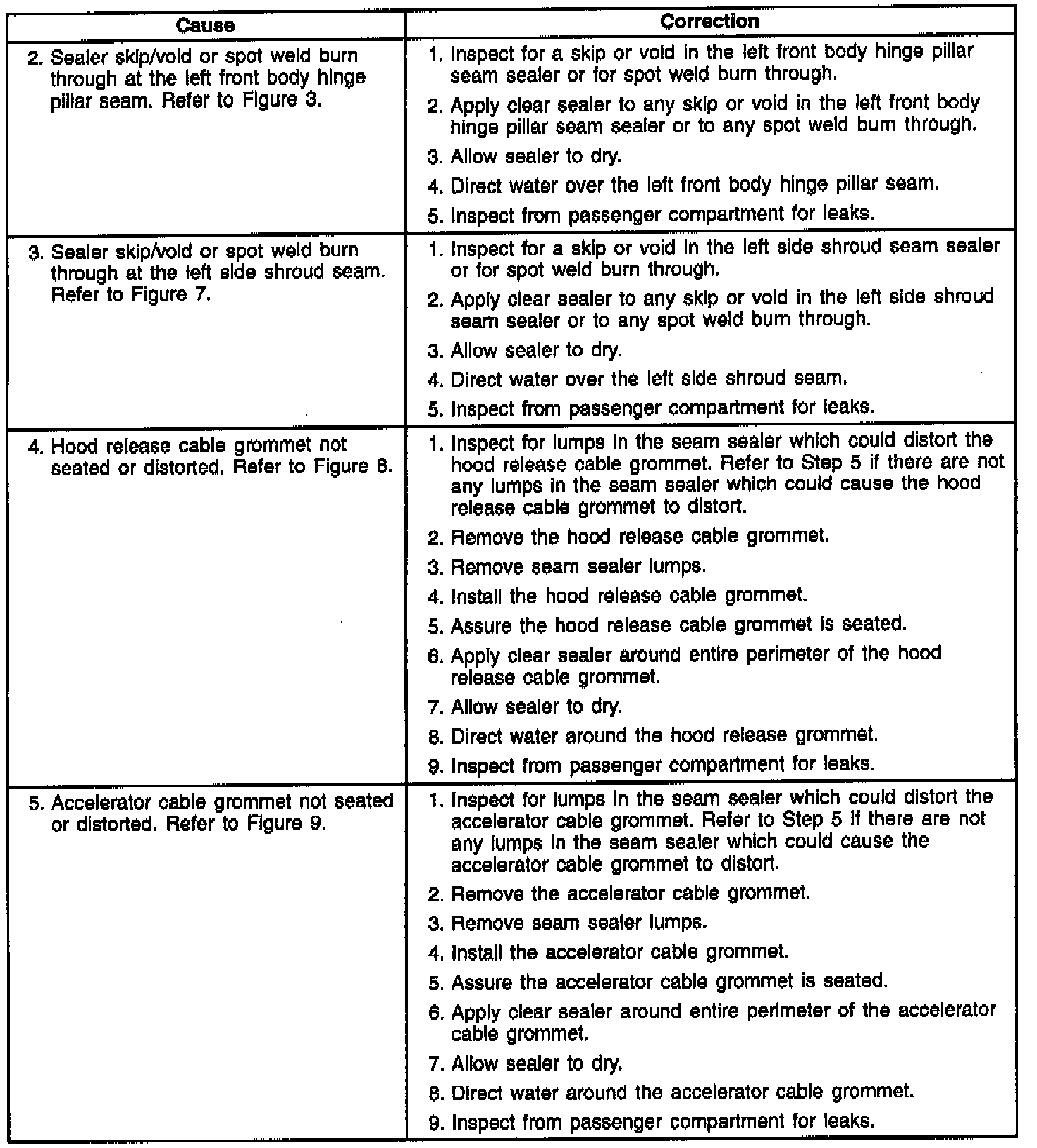

Carpet Wet Under Left Side Of Instrument Panel

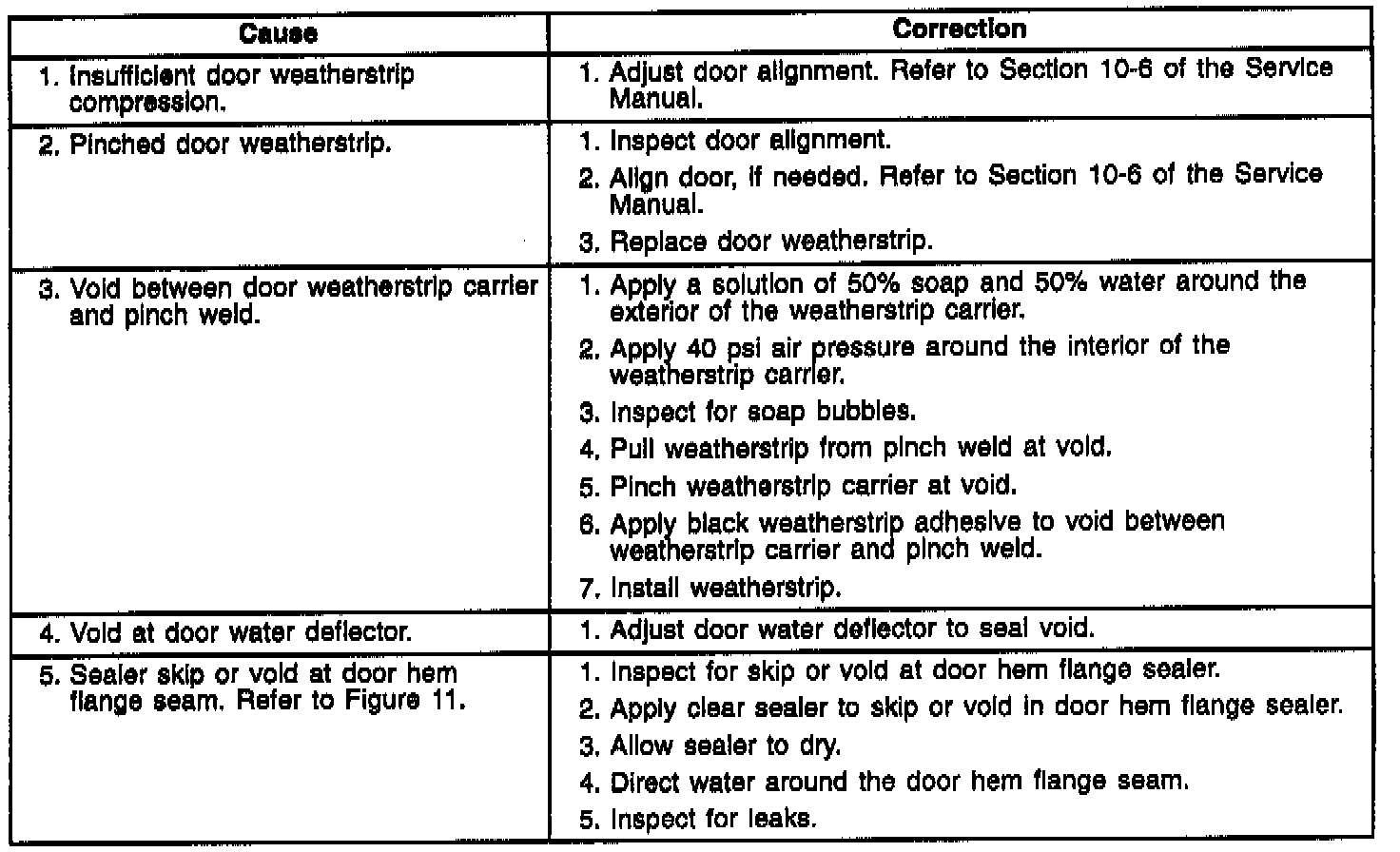

Carpet Wet Under Doors

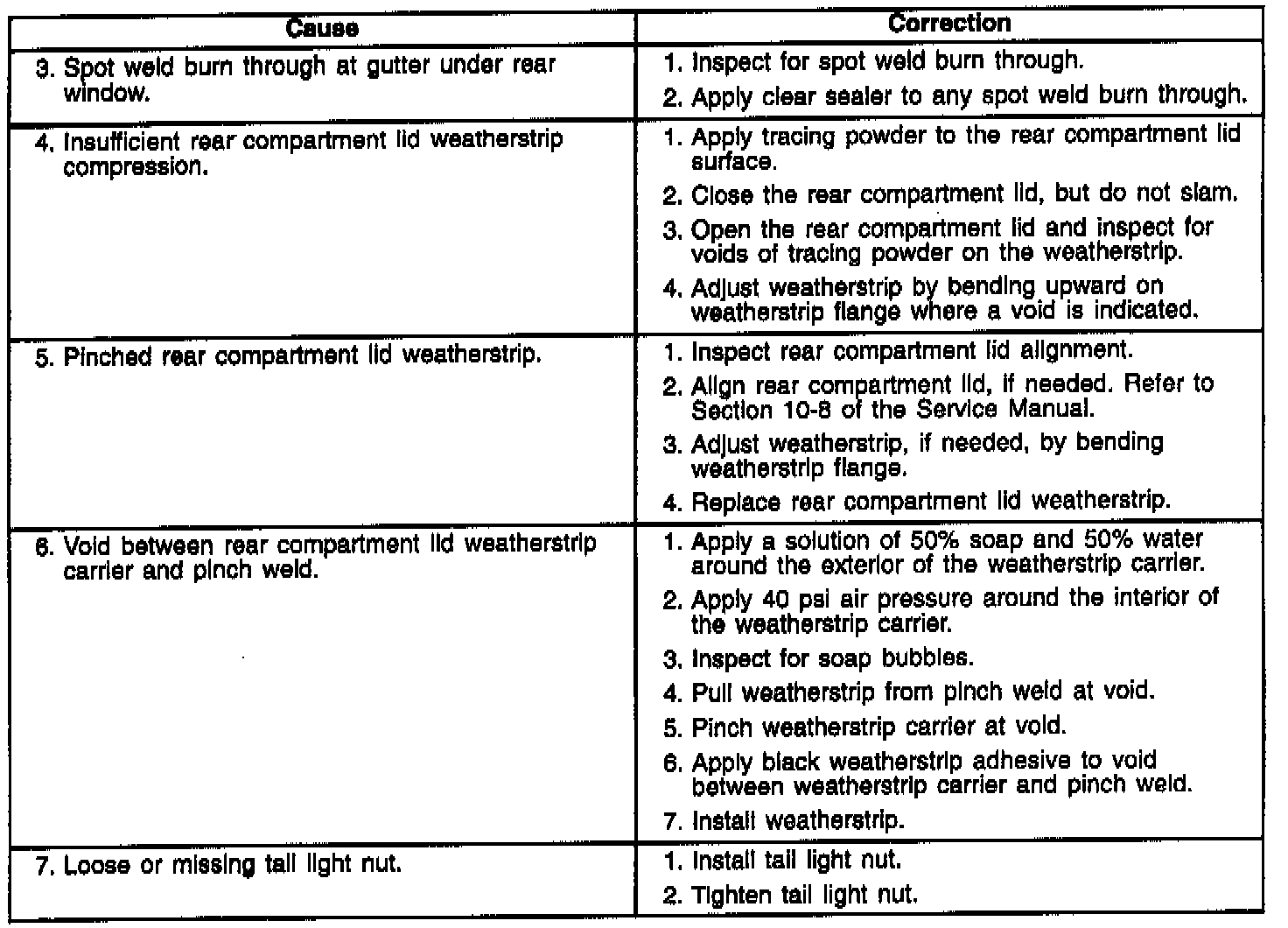

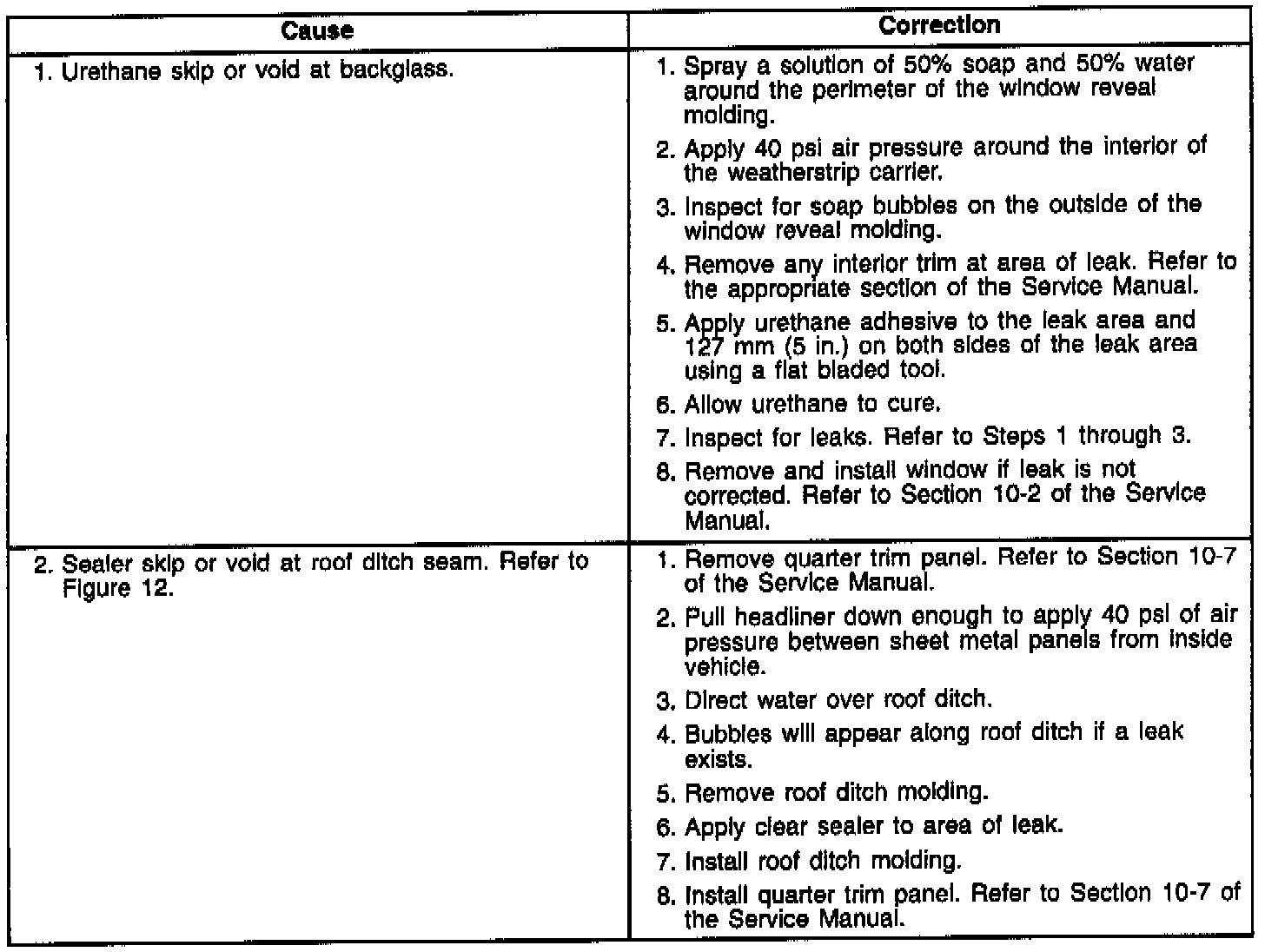

Wet Rear Shelf








Wet Rear Compartment Area





Wet Rear Compartment Area





Figure 1

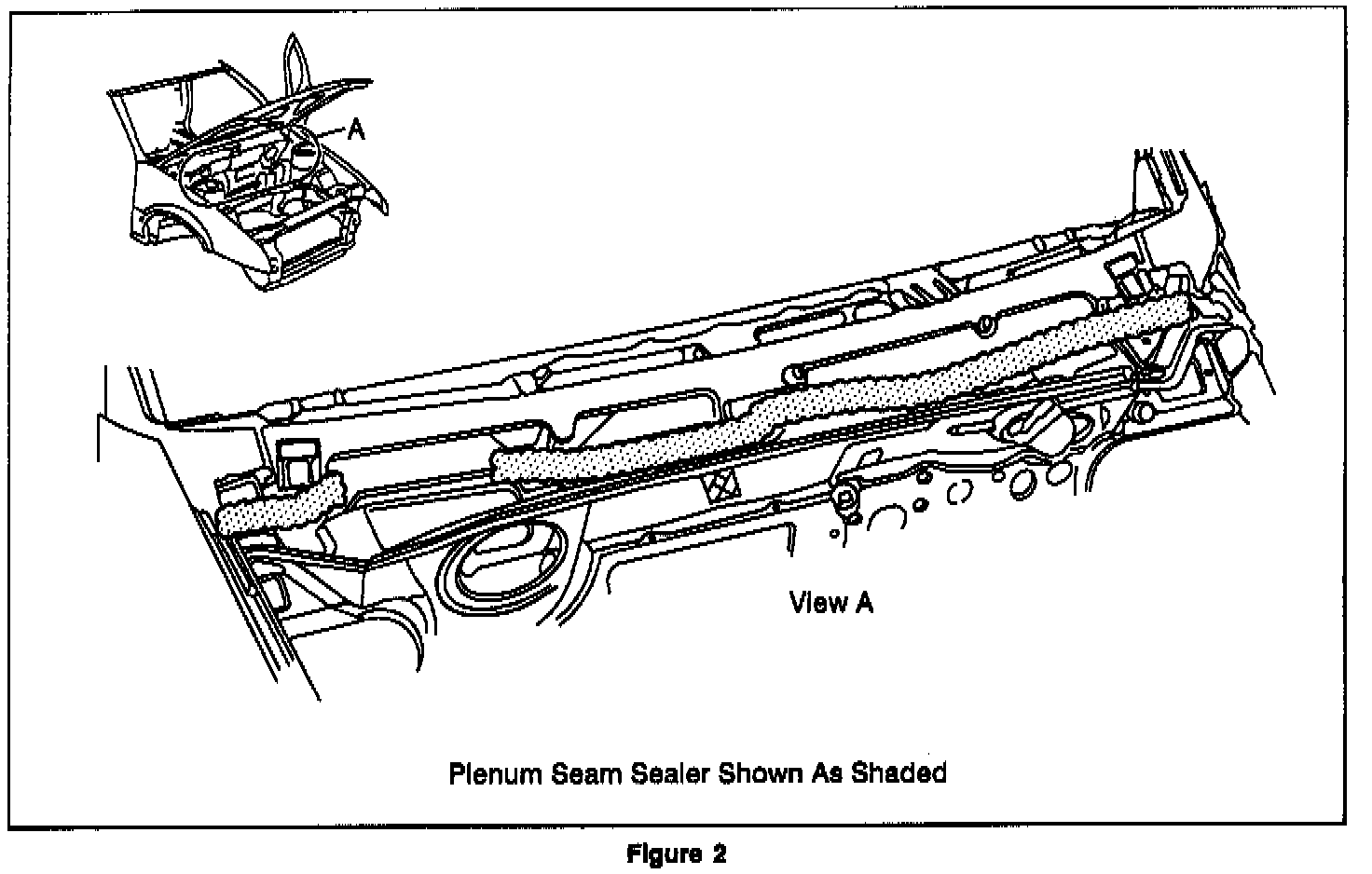

Figure 2





Figure 3

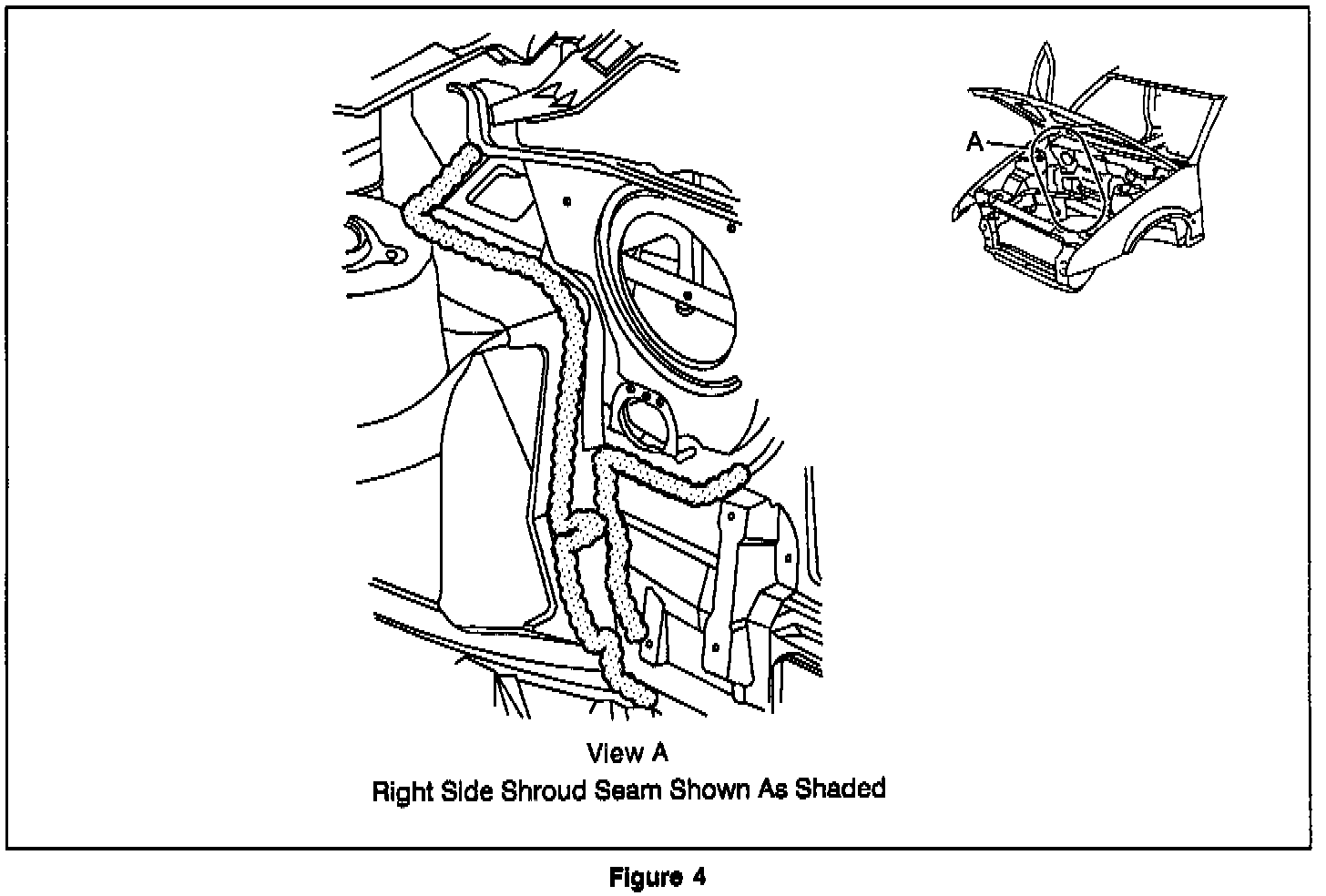

Figure 4





Figure 5





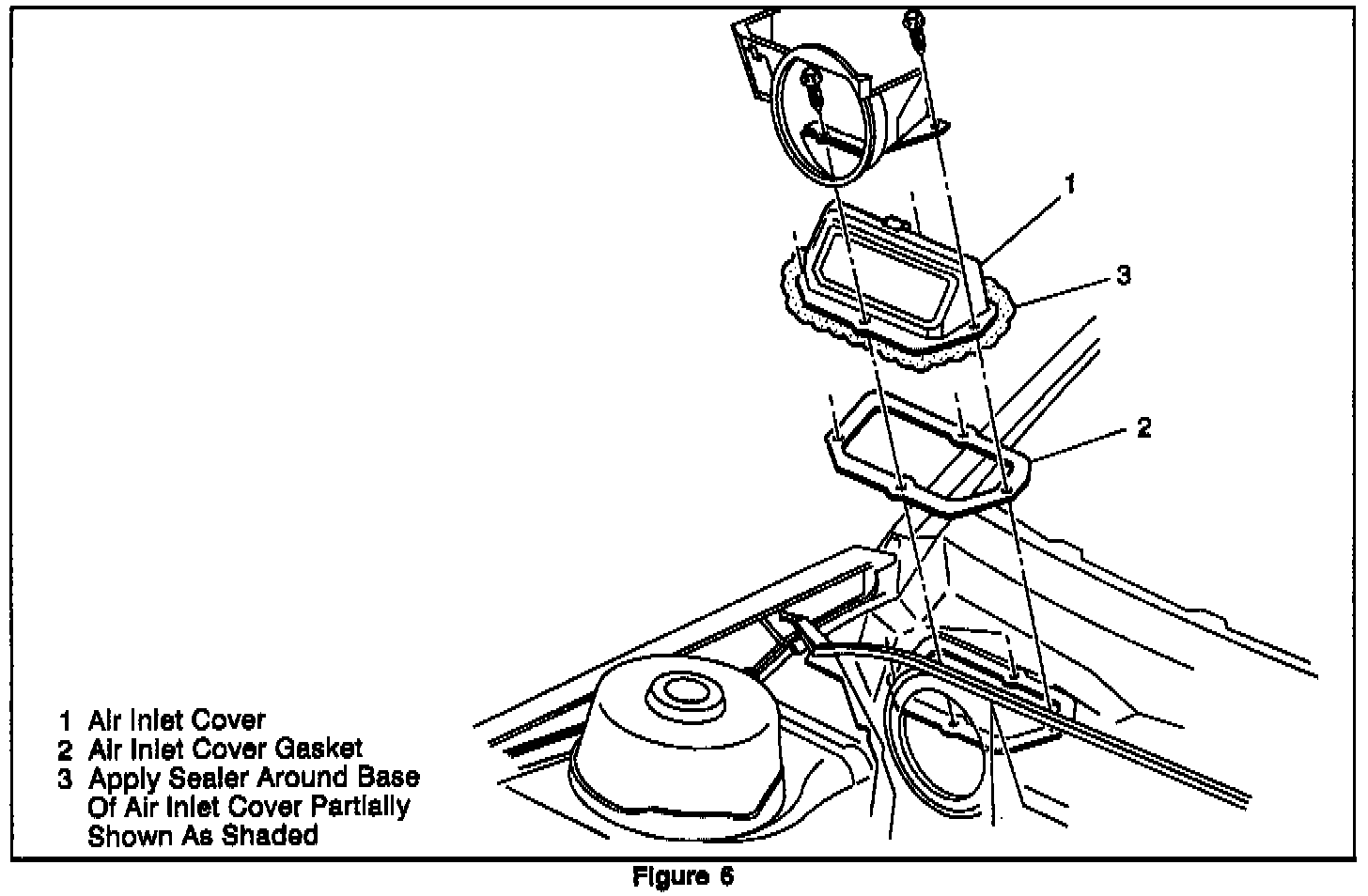

Figure 6





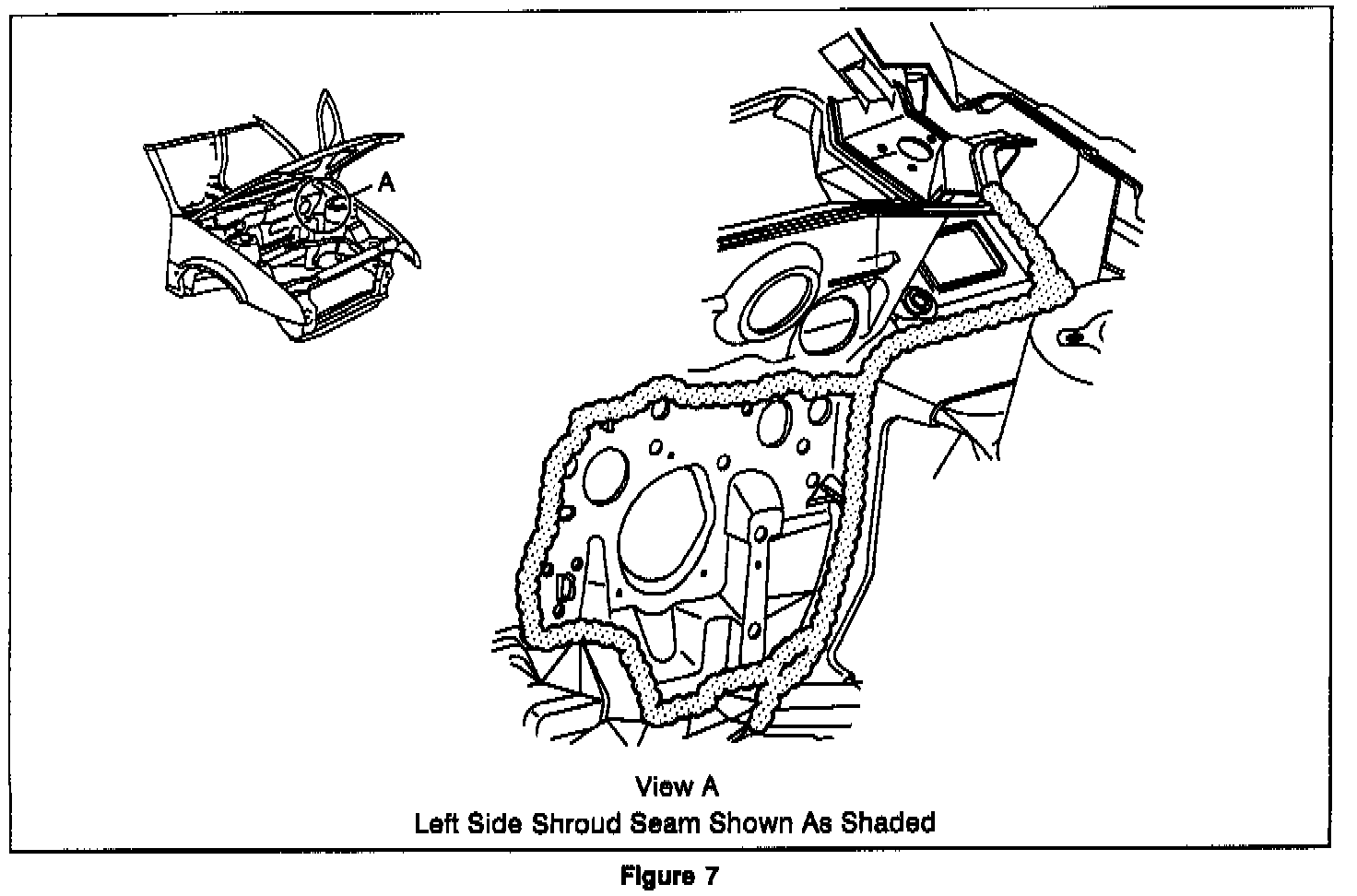

Figure 7





Figure 8





Figure 9





Figure 10





Figure 11





Figure 12

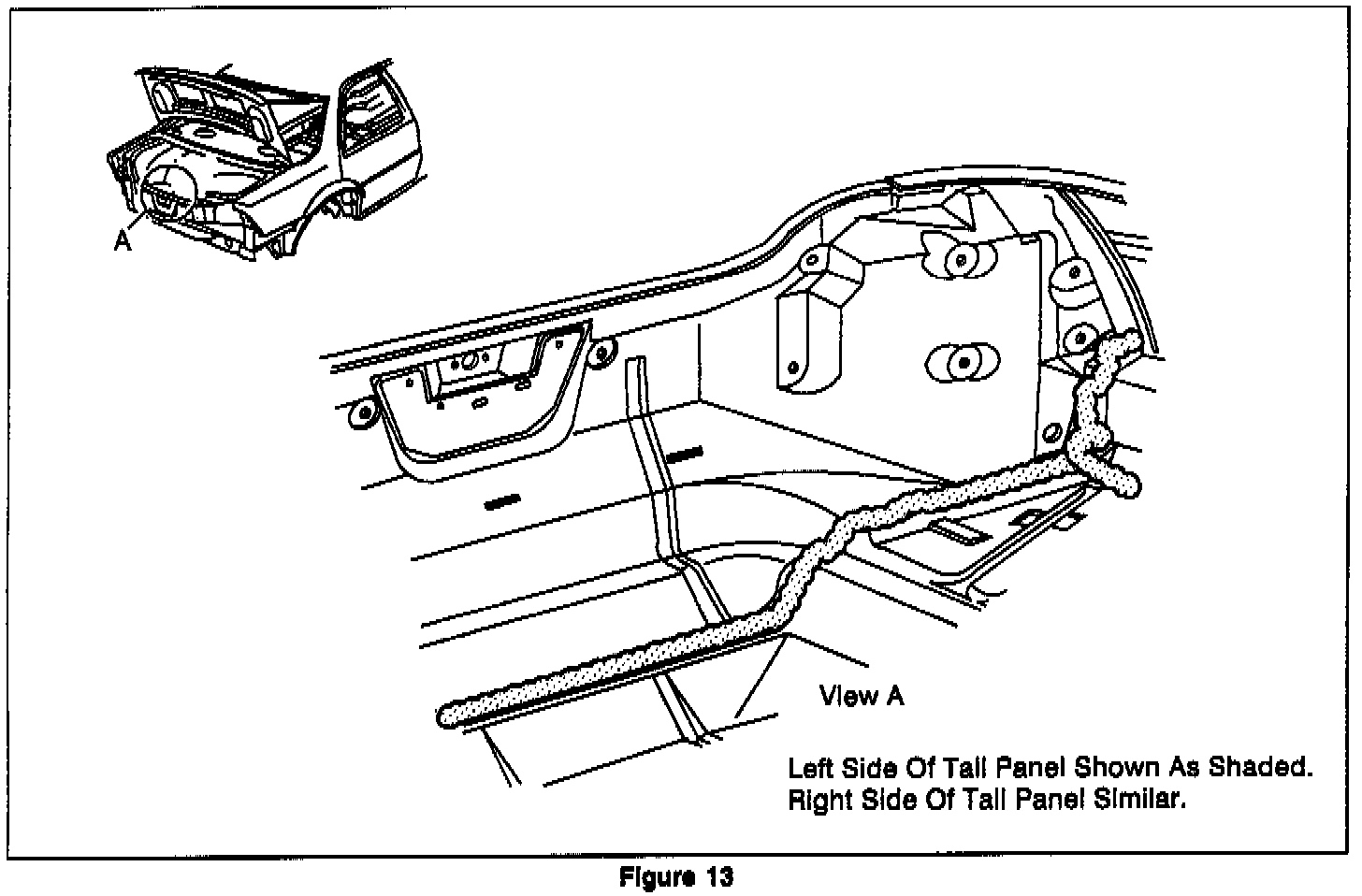

Figure 13





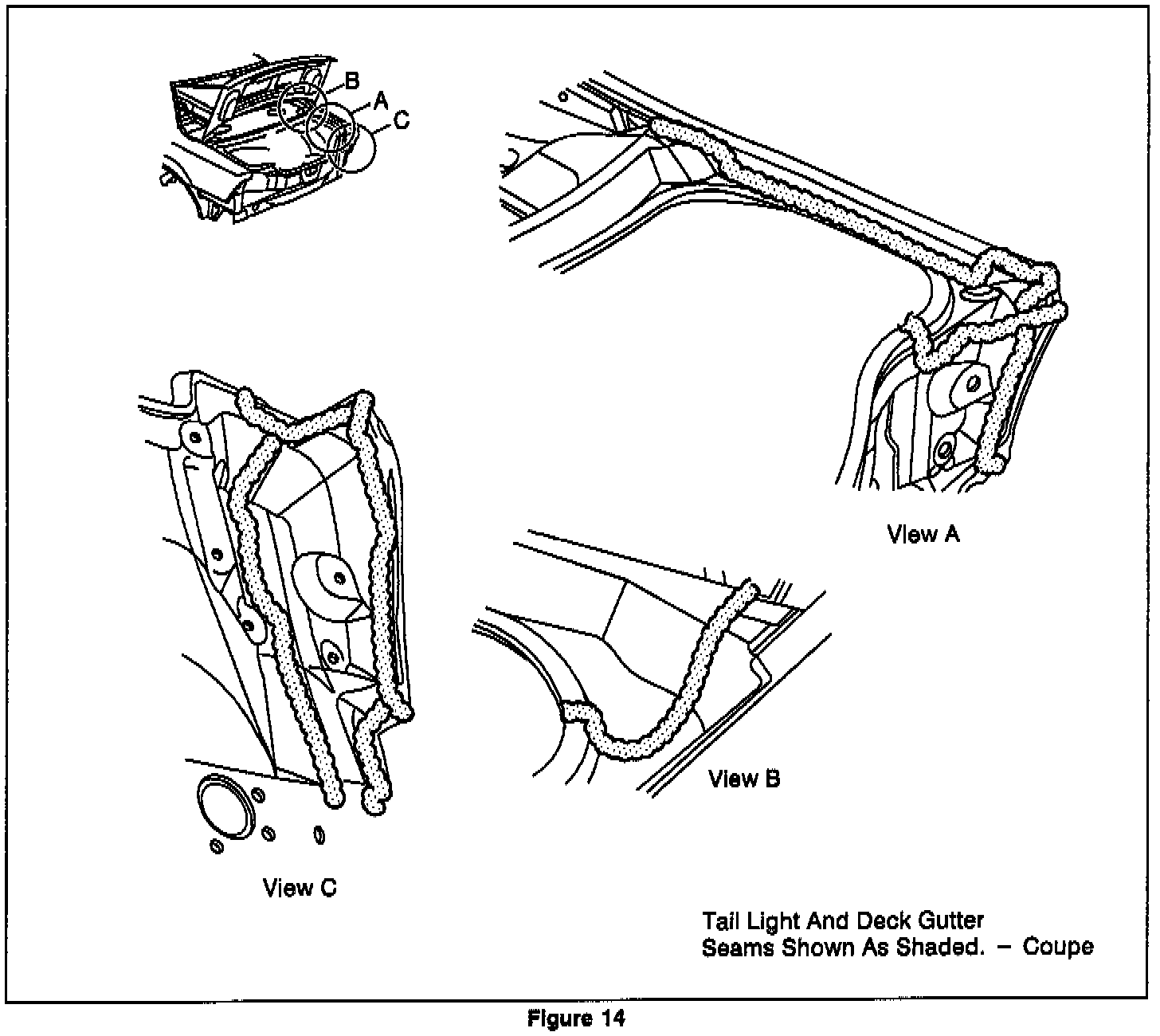

Figure 14

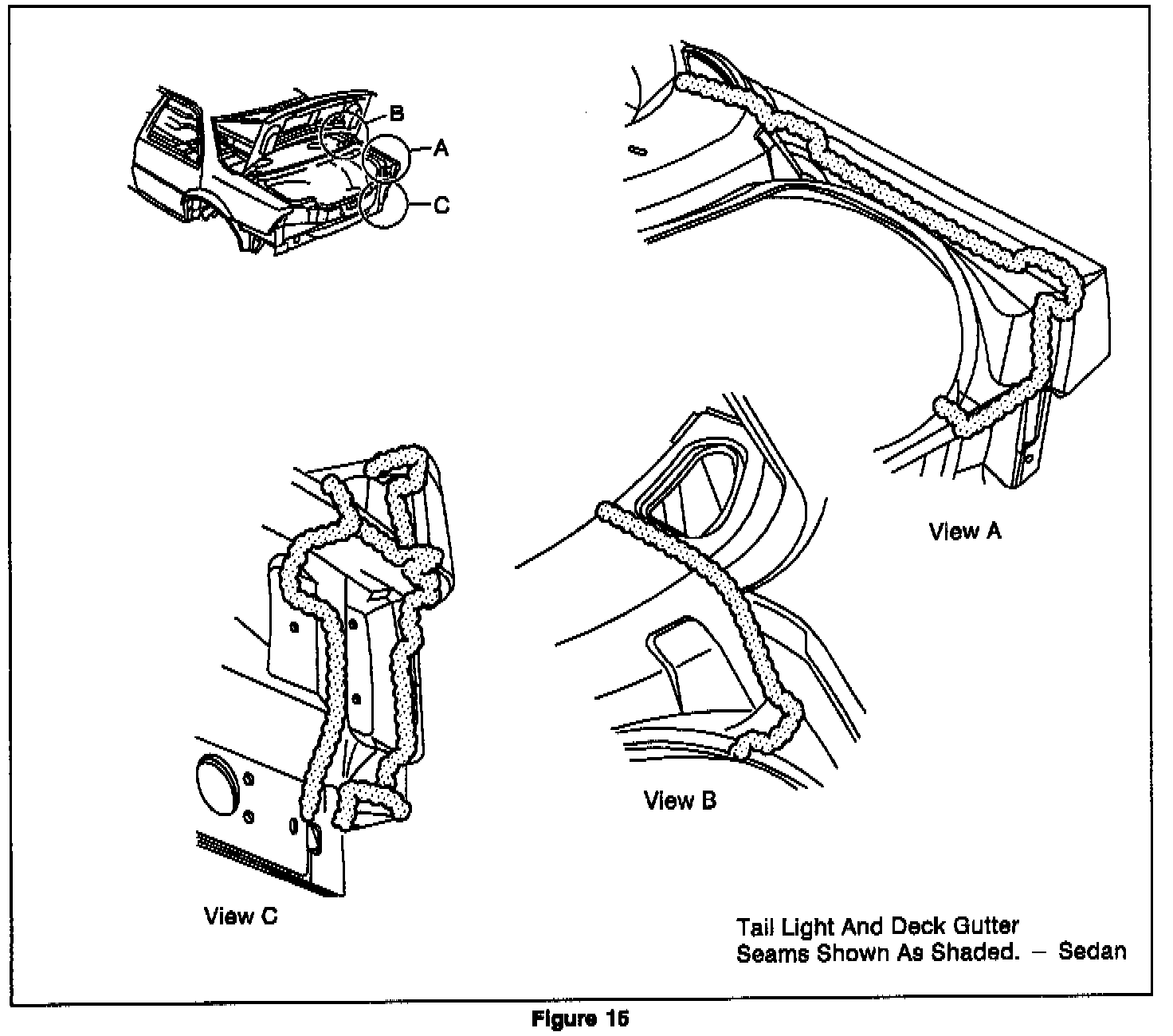

Figure 15

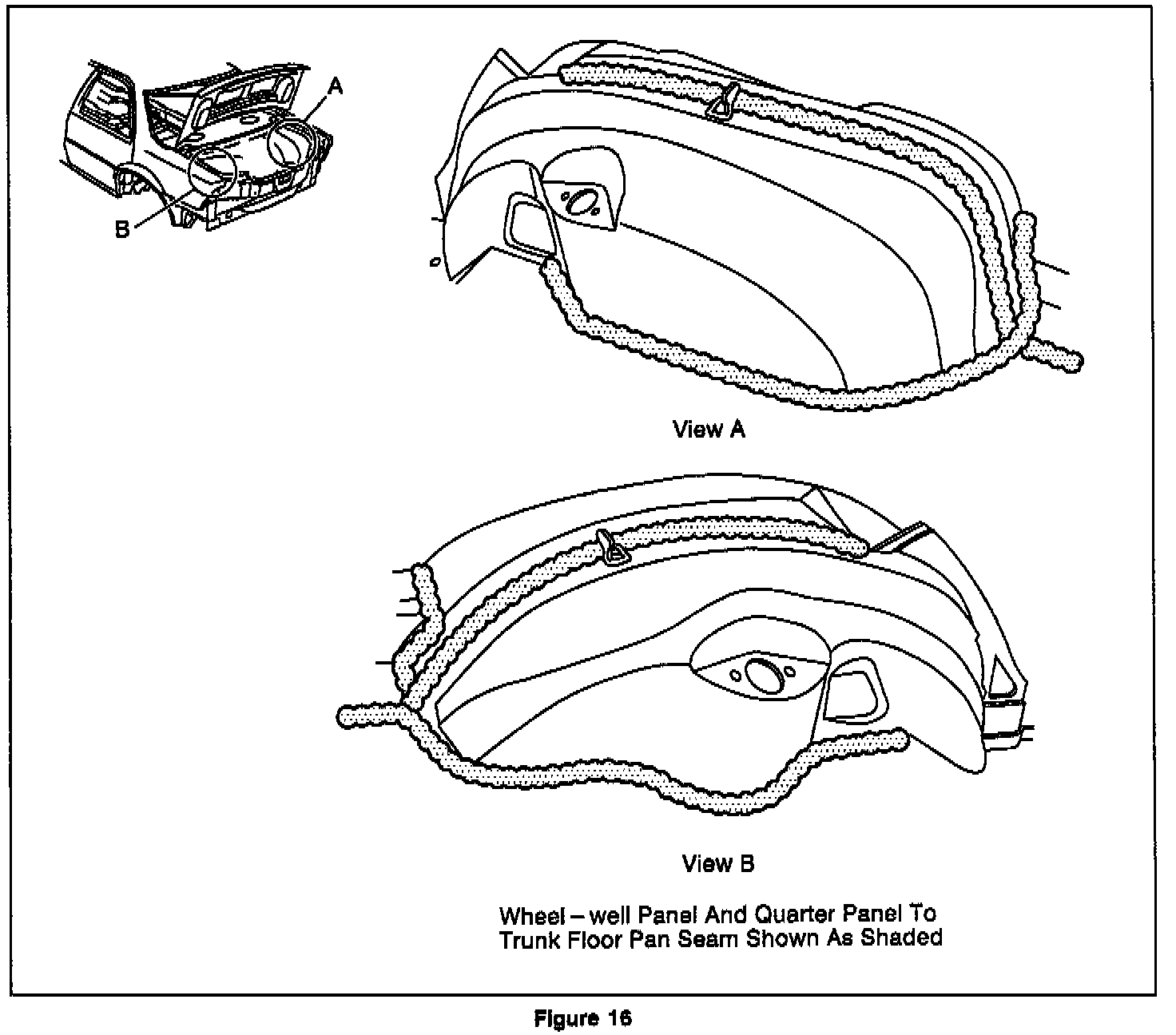

Figure 16





Figure 17

Parts Information

Description P/N
Kent Leak Check (Clear) (or equivalent) 10200
Black Weatherstrip Adhesive (or equivalent) 12345097
Urethane Adhesive (or equivalent) 12346284
Lock Gasket (or equivalent) 22645381

Parts are currently available from GMSPO.
