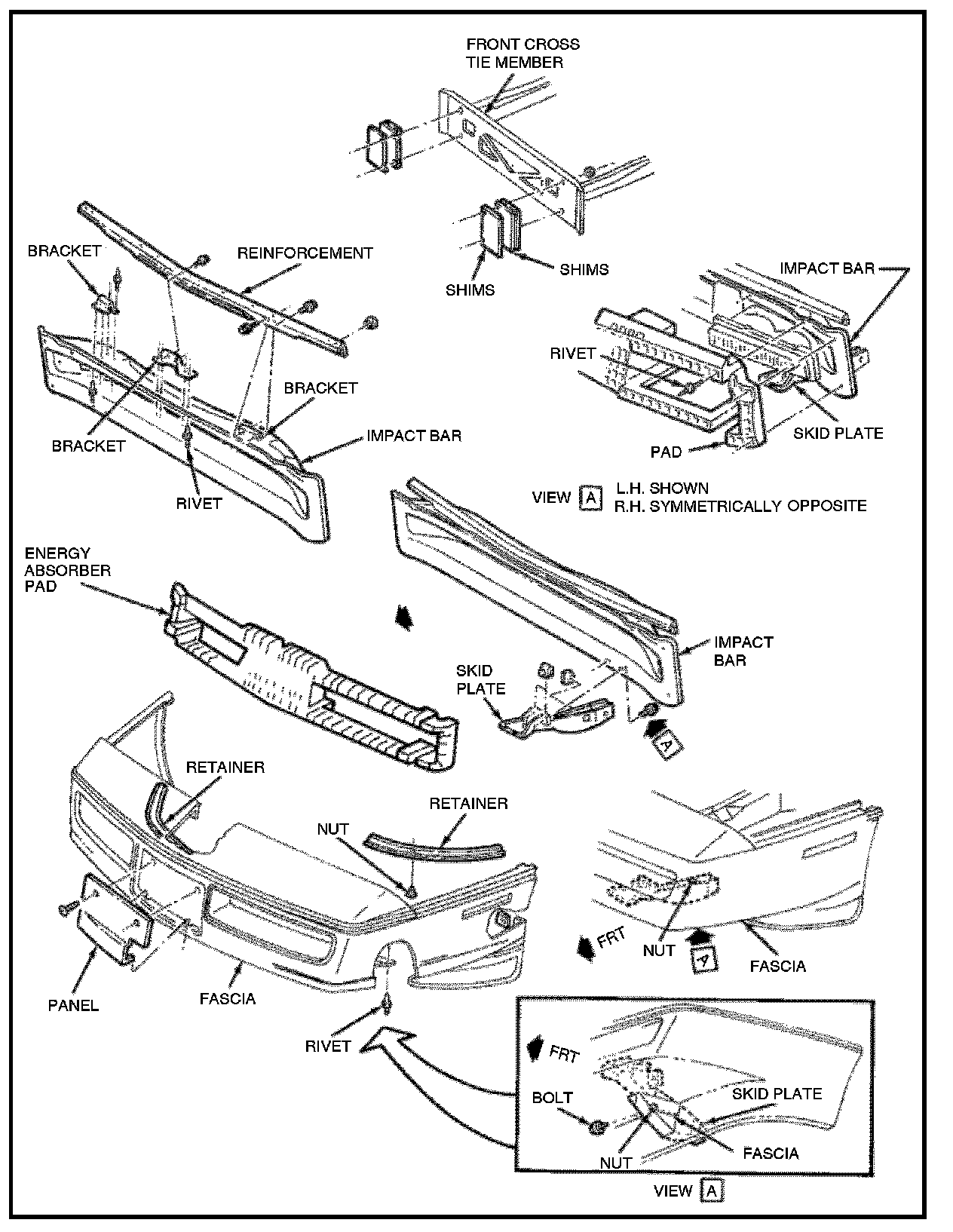

Front Bumper: Service and Repair

Removal





1. Raise hood to gain working clearance.
2. Disconnect battery ground cable.
3. Disconnect bulbs from parking lamps and side marker lamps.
4. Remove wheelhouse seal from upper edge of fascia and remove 4 screws each side.
5. Remove 12 screws attaching top of fascia to impact bar reinforcement.
6. Remove 4 screws attaching rear vertical edge to splash shield (each side) and 2 upper inner screws attaching fascia to support.





7. Raise vehicle, remove four screws each side attaching fascia to outer air dams.
8. Remove 4 screws attaching fascia to lower edge of impact bar.
9. Remove screws attaching fascia to skid plate.





10. Lower vehicle - remove fascia from vehicle by lifting upper edge of fascia away from reinforcement and at the same time rotating fascia downward.

Installation

1. Reverse procedures.
