Blower Motor: Service and Repair

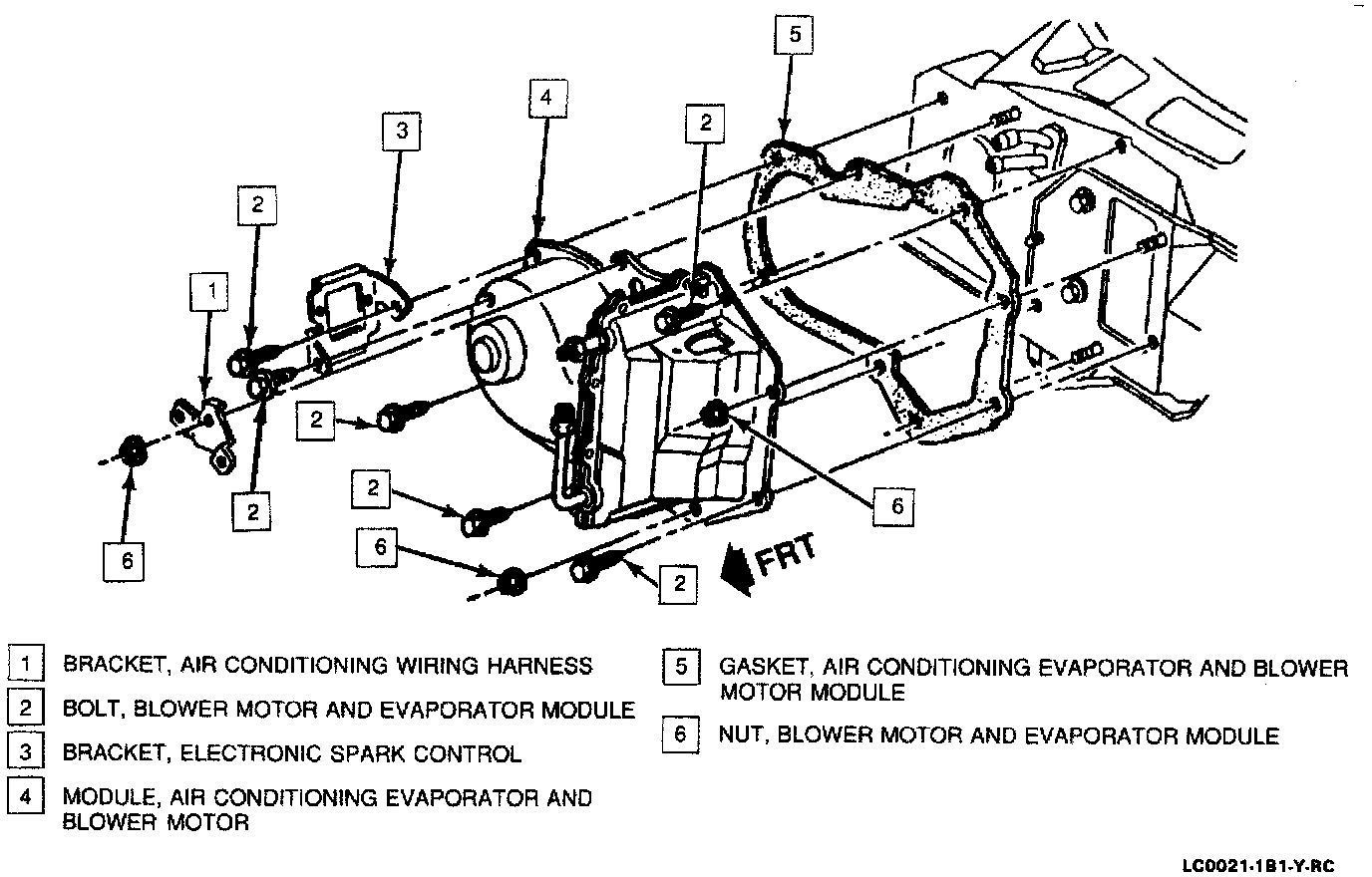

Blower Motor And Evaporator Module:
1.
Open the hood and disconnect the battery ground cable.
2.
Remove the front wheel house rear panel and move wheel house seal aside.
3.
Remove the motor cooling tube.
4.
Remove the relay.
5.
Remove the
blower motor assembly to case attaching screws.
6.
Remove the motor and impeller.
7.
To install, reverse the replacement procedure and check the operation.
