Cabin Temperature Sensor / Switch: Service and Repair

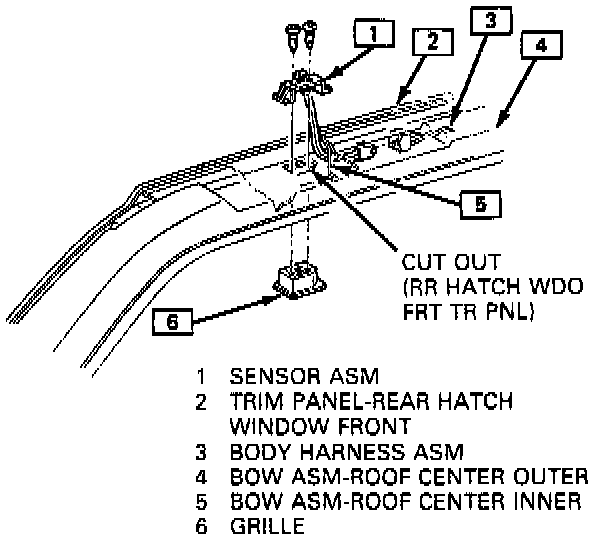

In Car Temperature Sensor:
1.
Disconnect battery ground cable.
2.
Remove the removable roof.
3.
Remove rear hatch window trim panel.
4.
Disconnect and remove the bolts securing the sensor.
5.
To install, follow removal procedure in reverse order.
