System Check - HVAC System - Manual

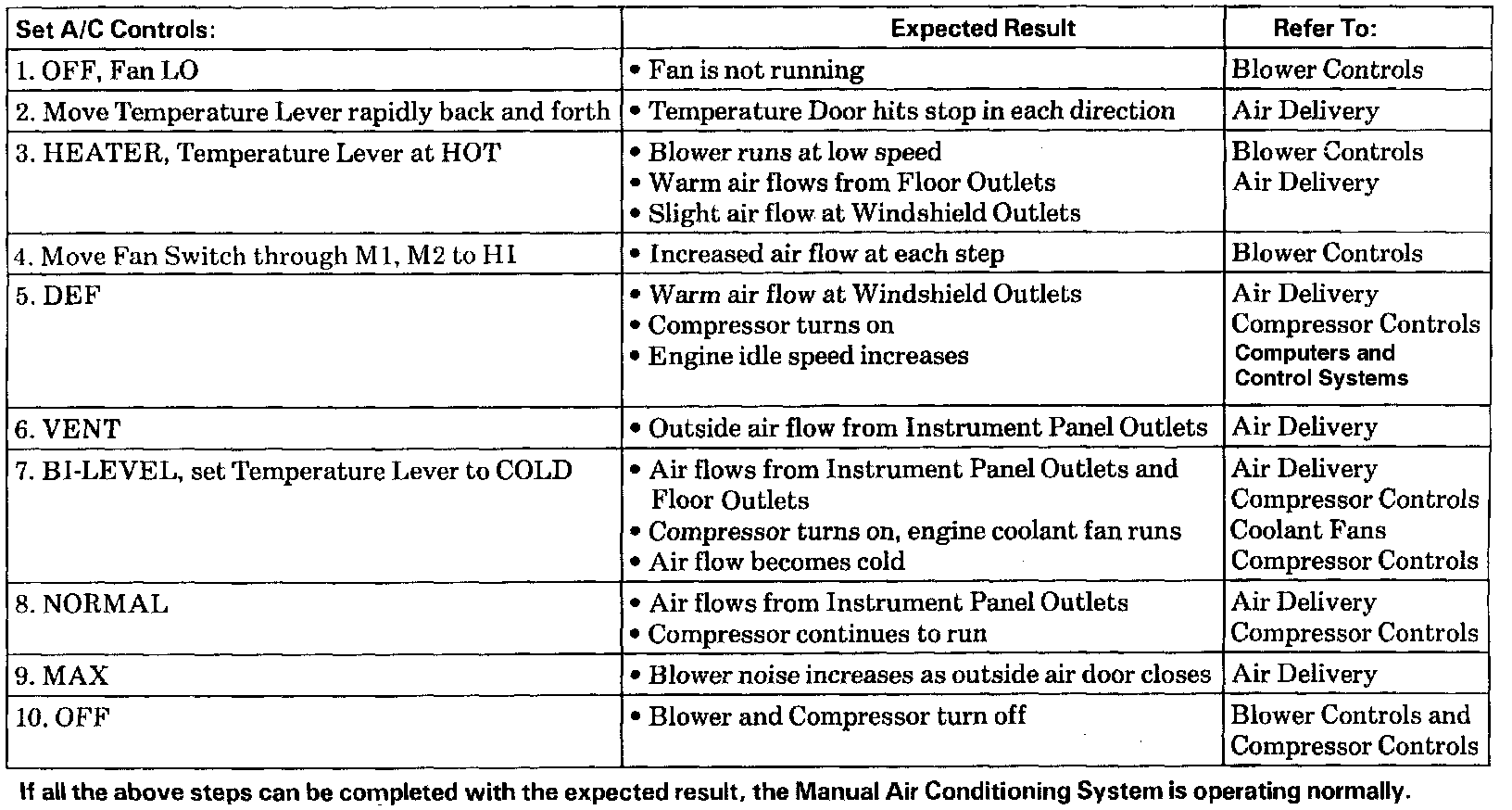

System Check:
This procedure provides an overall check of the air conditioning system. All of the tests can be performed without using tools or disassembly.
Complete the test with the engine idling and the temperature outside the car at
60°F (16°C) or higher.
