Countergear
DISASSEMBLY1. Remove dummy shaft from countergear.
2. Slide six spacers, 112 rollers and roller sleeve from gear.
ASSEMBLY1. Install roller spacer in countergear.
2. Insert dummy shaft into countergear.

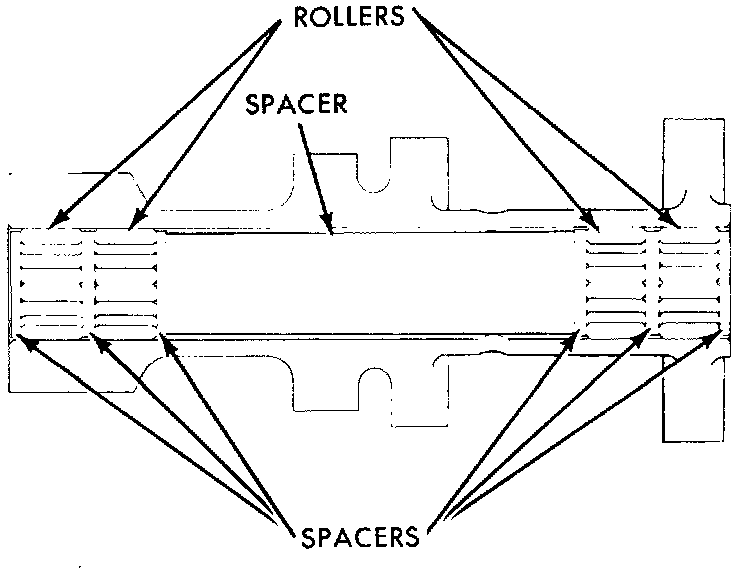

3. Using heavy grease to retain rollers, install spacer, 28 rollers, spacer, 28 rollers and spacer in one end of countergear, see figure.
4. Repeat Step 3 at other end of countergear.
