Throttle Cable Adjust

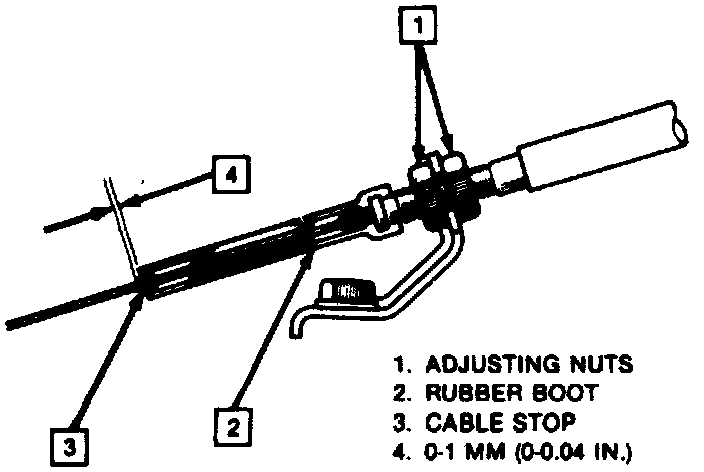

1. Hold accelerator pedal in fully depressed position, then loosen cable adjusting nuts. See Figure.
2. Adjust cable to obtain .04 inch clearance between end of boot and stopper on cable, then tighten adjusting nut.
3. Fully depress accelerator pedal and recheck adjustment, then road test vehicle.
