Valve Body Replace

REMOVAL
1. Clean area around pan, then drain transmission fluid.
2. Remove oil pan and gasket, then the oil strainer.
3. Remove oil apply tube bracket attaching bolts, then the oil apply tube.
4. Remove oil tubes using a suitable screwdriver, then the manual detent spring.
5. Remove manual valve, then the manual valve body.
6. Remove valve body, then disconnect throttle cable.
7. Remove valve body, then the governor, apply gasket and governor oil gasket

INSTALLATION
1. Install governor oil gasket, then the governor and governor apply gasket
2. Hold valve body in place, then manually retain cam in downward position and slip cable end into slot

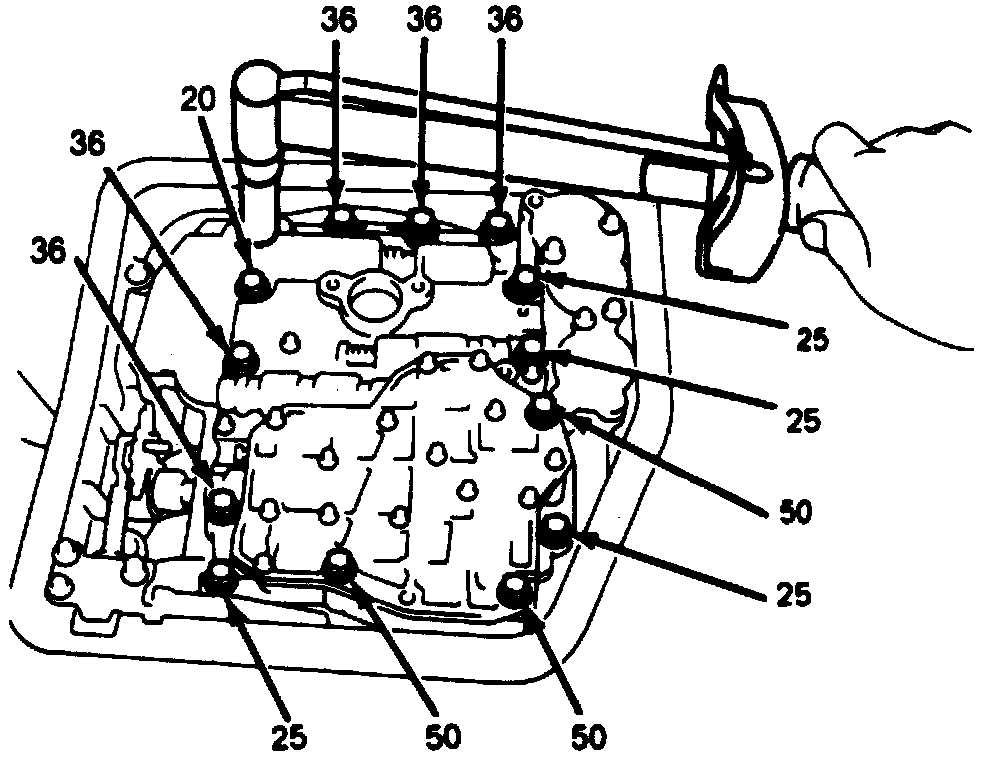

3. Position valve body into place, then insert and finger tighten 14 attaching bolts. Torque bolts to 7 ft lbs. Attaching bolt lengths (mm) are indicated in first image.
4. Align manual valve with pin on manual valve lever, then install manual valve body.

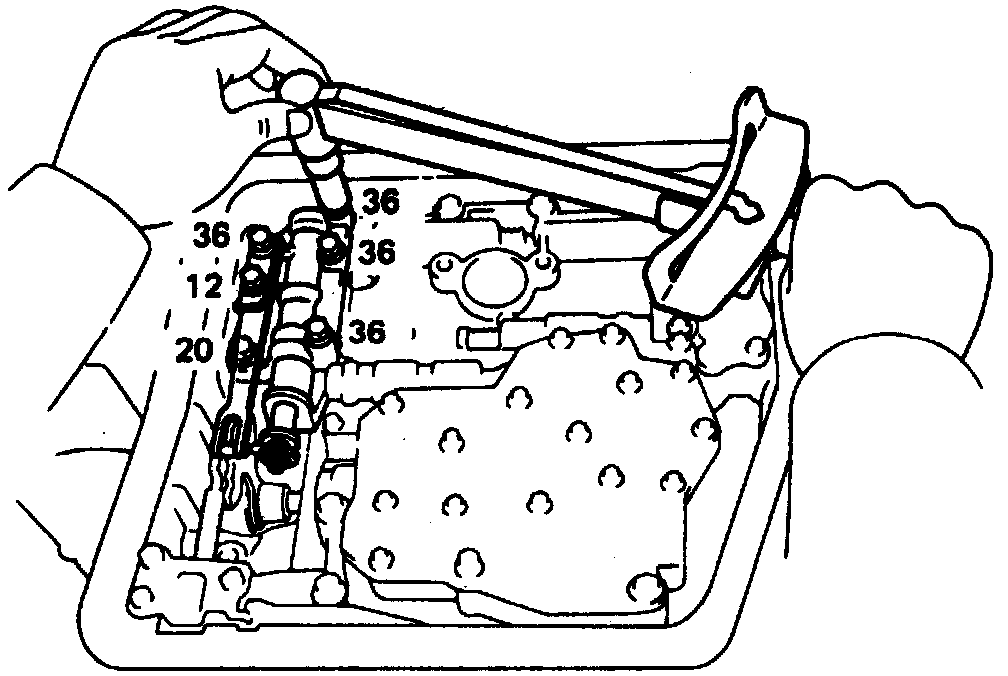

5. Insert and finger tighten remaining attaching bolts, then torque to 7 ft lbs. Attaching bolt lengths (mm) are indicated in second image.
6. Install detent spring, then insert and finger tighten attaching bolts. Torque attaching bolts to 7 ft. lbs.
7. Ensure manual lever is in contact with. center of roller at tip of detent spring, then install oil tubes.
8. Install apply tube bracket, then the oil strainer.
9. Insert magnet into pan, then install oil pan with new gasket
10. Insert oil pan attaching bolts, then torque to 43 inch lbs.
11. Install drain plug with new gasket, then torque to 36 ft. lbs.
12. Fill transaxle to specifications, then ensure proper fluid level.
