Without Air Conditioning

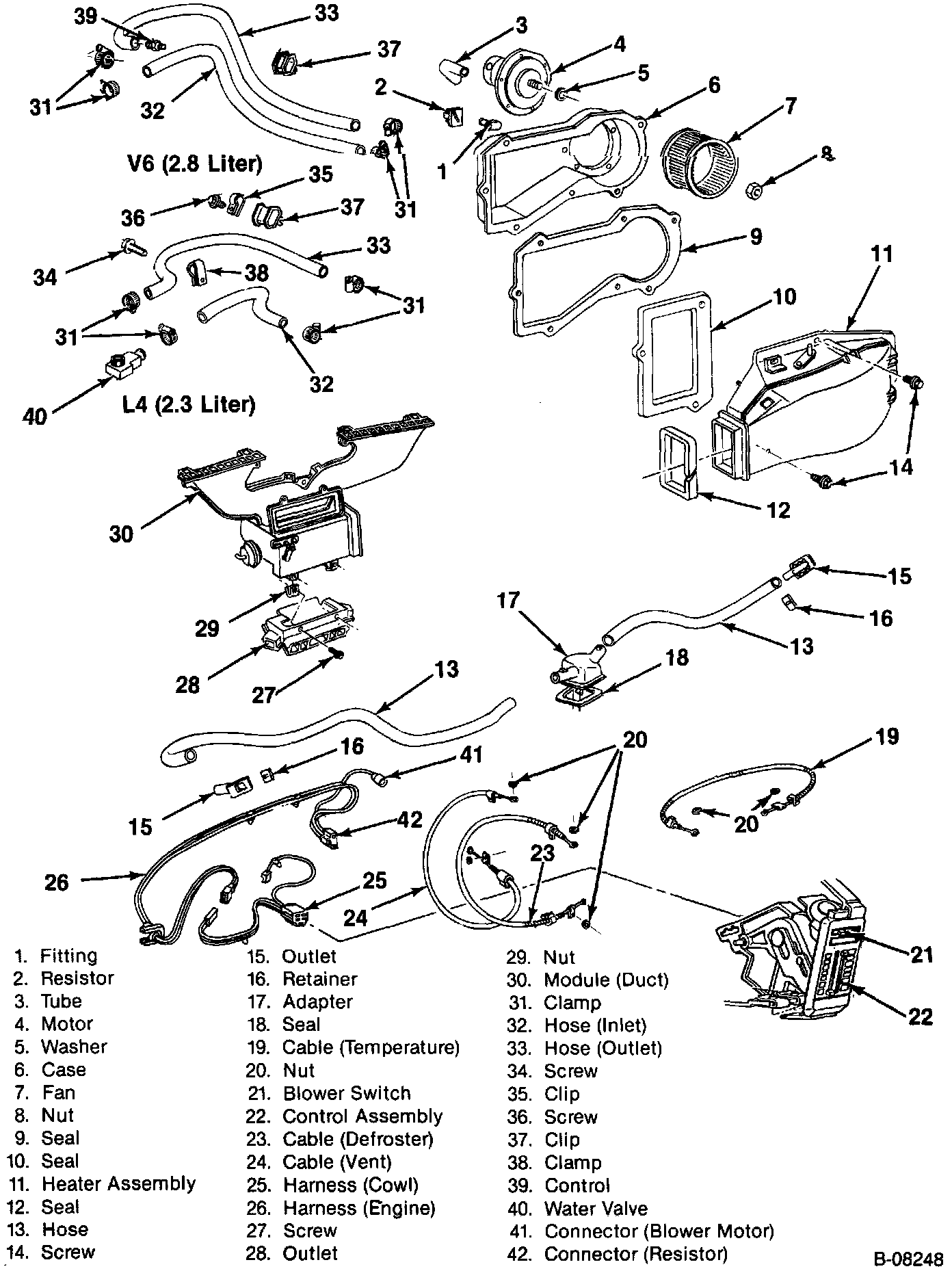

Fig 2. Air Distribution Assembly Component View:

Blower Motor Replacement:

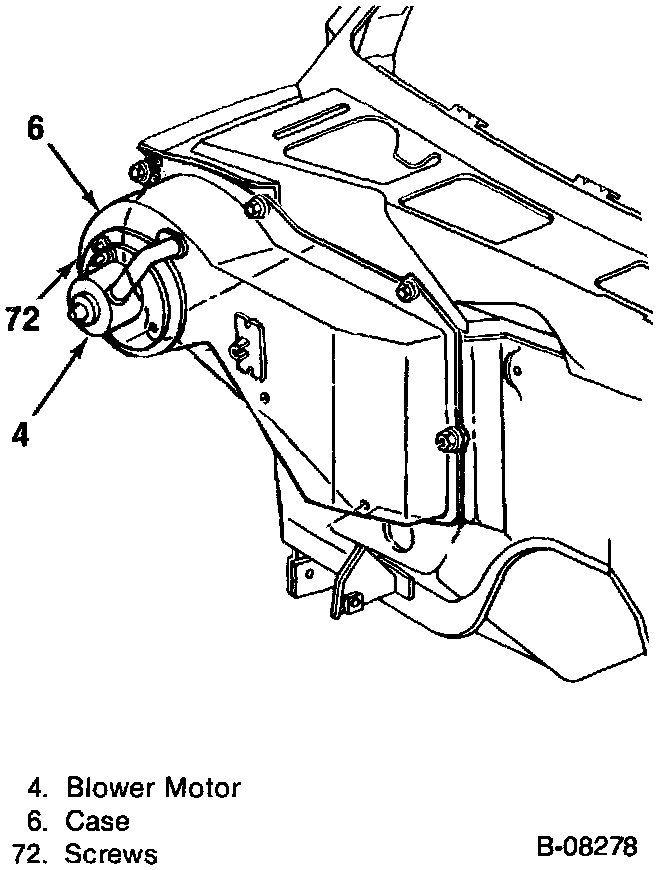

REMOVE OR DISCONNECT (Figures 2 and 11)
1. Negative battery cable.
2. Electrical connection (41) at the blower motor.
3. Blower motor retaining screws (72).
4. Blower motor (4).

INSTALL OR CONNECT
1. Blower motor (4).
2. Screws (72).

^ Tighten Screws (72) to 2 Nm (18 in. lbs.).

3. Electrical connection (41) to the blower motor.
4. Negative battery cable.
