Condenser HVAC: Service and Repair

Fig 21. Fitting And Hose Installation:

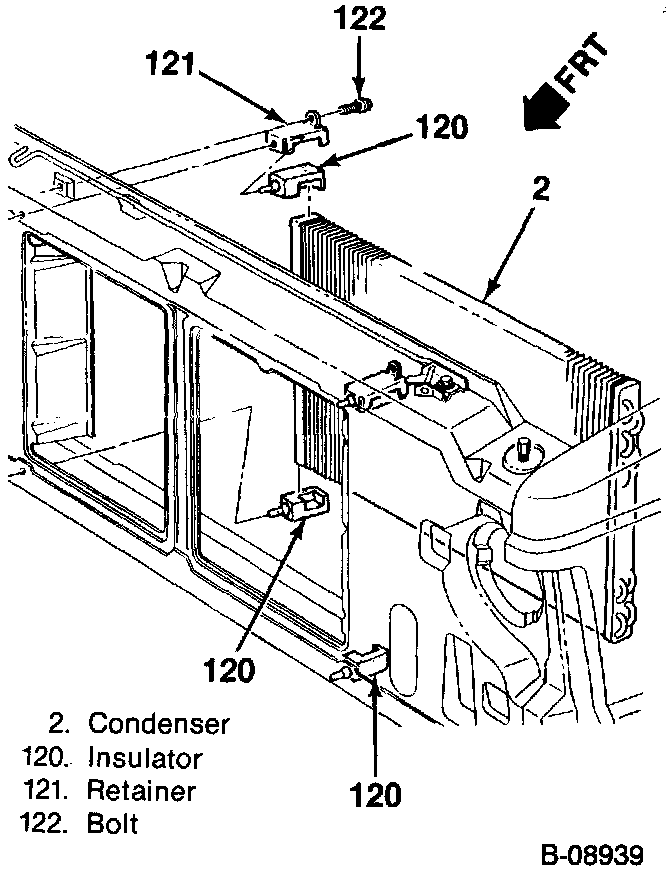

Fig 25. Condenser Mounting:

REMOVE OR DISCONNECT (Figure 21 and 25)
1. Refrigerant from the system.
2. Upper fan shroud.
3. Radiator.
4. Shields at either side of the radiator support.
5. Condenser retainers (121) and insulators (120).
6. Condenser lines (110 and 111).
7. Condenser (21).

INSTALL OR CONNECT
1. Condenser (2).
2. Condenser retainers (121) and insulators (120).

^ Tighten Mounting bolts (122) to 6 Nm (62 in. lbs.).

3. Condenser lines (110 and 111) to the condenser (2).

^ Tighten Nuts (110 and 111) to 24 Nm (18 ft. lbs.).

4. Radiator.
5. Upper fan shroud.
6. Refrigerant to the system.
