Fuel Pump Flow Test

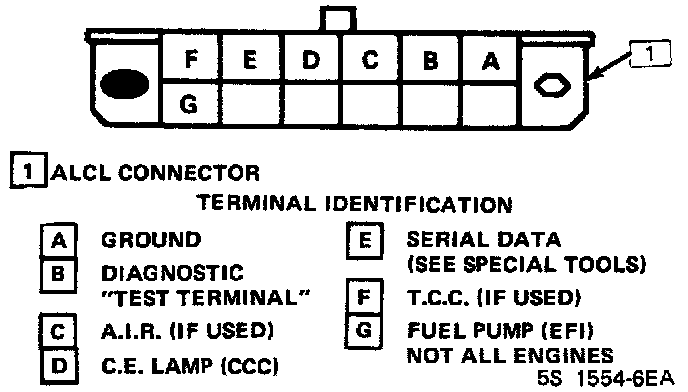

ALCL Connector:





FUEL FLOW TEST
- Disconnect the fuel feed line.
- Apply battery boltage to the fuel pump test terminal (terminal "G" of ALCL connector).
- Fuel Pump should supply 1/2 pint or more in 15 seconds.
- If flow is below minimum, check for fuel restriction. If there is no restriction, check pump pressure.
