Differential Mount: Service and Repair

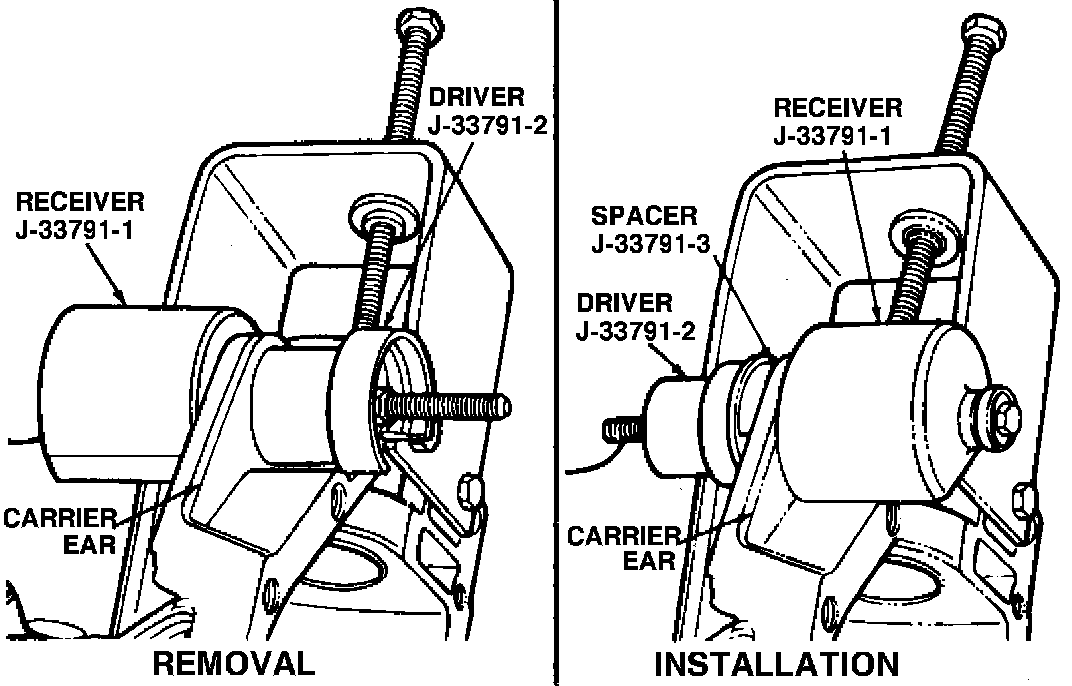

Fig. 7 Differential carrier bushing replacement:

1. Remove tube and shaft assembly as described under ``Tube & Shaft Assembly, Replace.''
2. Remove differential carrier as described under ``Differential Carrier, Replace.''
3. Remove bushing from carrier ear using tool J-33791, Fig. 7.
4. Install new bushing using tool J-33791, Fig. 7. Ensure tool J-33791-3 is positioned properly between bushing and carrier ear to prevent bushing from being pressed in too far.
