Window Regulator Replacement

Front Door Trim Panel:

Front Door Trim Panel Components:

Front Inner Panel Water Deflector:

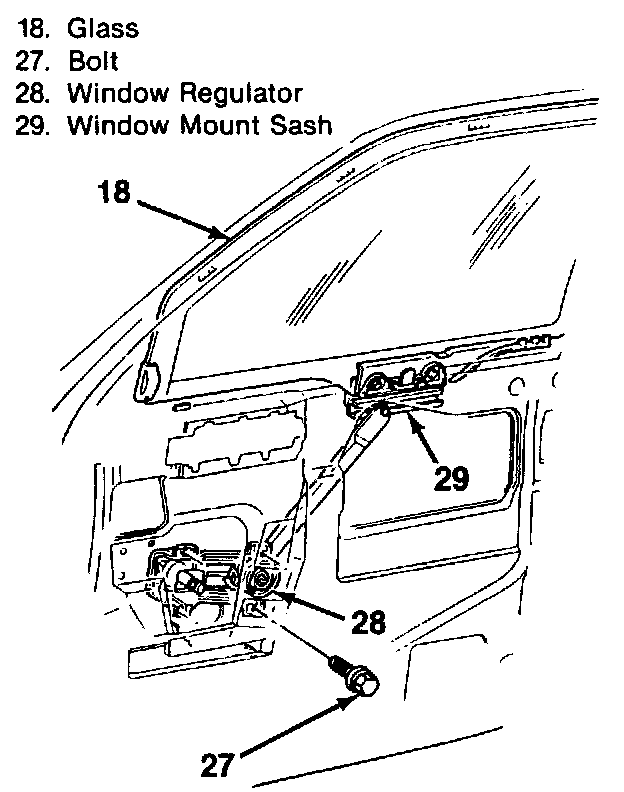

Front Door Window Regulator:

NOTE: Images shown are for manual windows, power windows are similar


REMOVE OR DISCONNECT
1. Door trim panel.
2. Armrest bracket.
3. Water deflector.
^ Raise the window to the full-up position secure the glass to the door frame using cloth backed tape.

4. Bolts securing the regulator to the door inner panel.
5. Regulator lift arm roller from the window mount sash.
6. Regulator from the door.


INSTALL OR CONNECT
1. Regulator to the door.
2. Regulator lift arm roller to the window mount sash.
3. Bolts securing the regulator to the door inner panel.
4. Water deflector.
5. Armrest bracket.
6. Door trim panel.
