Wiper Switch: Service and Repair

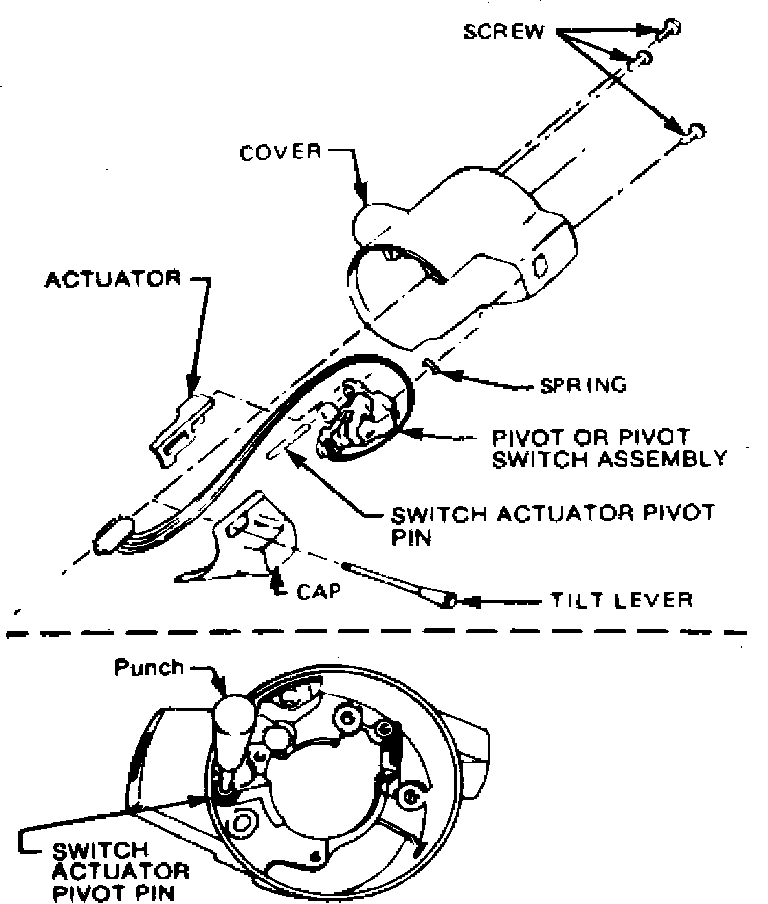

Fig. 12 Windshield wiper switch removal. Exc. tilt column:

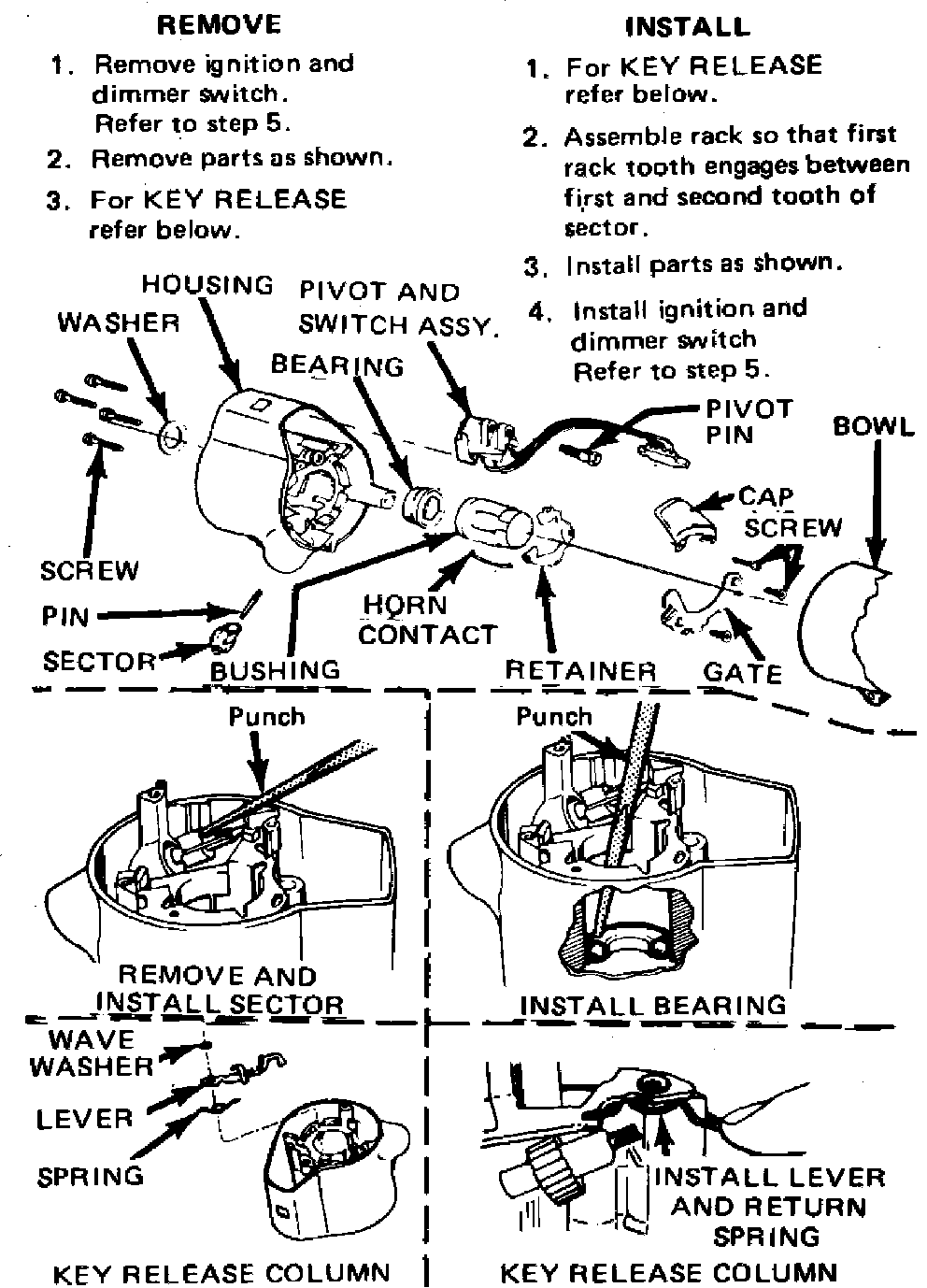

Fig. 13 Windshield wiper switch removal. Tilt column:

1. Remove turn signal switch. Refer to ``Turn Signal Switch, Replace'' procedure.
2. Refer to Figs. 12 and 13 for wiper switch replacement. Some 1986 models use a spun-in housing bearing in place of a bearing retainer and bushing. On these models, the complete housing assembly must be replaced if repair is necessary.
