Instrument Panel Wiring

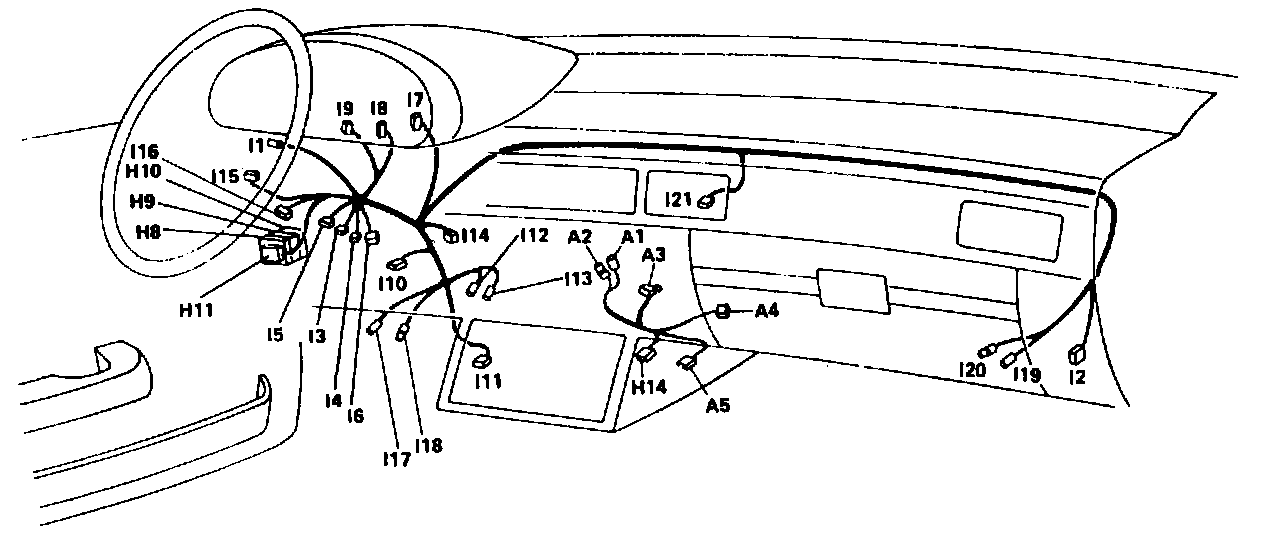

Instrument Panel Wiring:






CONNECTORS

A1 to A5: Center of I/P

H8 to H12: LH side of I/P
H14: Center of I/P

I1: LH side of I/P
I2: RH side of I/P
I3 to I18: LH side of I/P
I19 & I20: LH side of I/P
I21: Center of I/P
