Cylinder Head Bolt Torque and Sequence

Cylinder Head Bolts

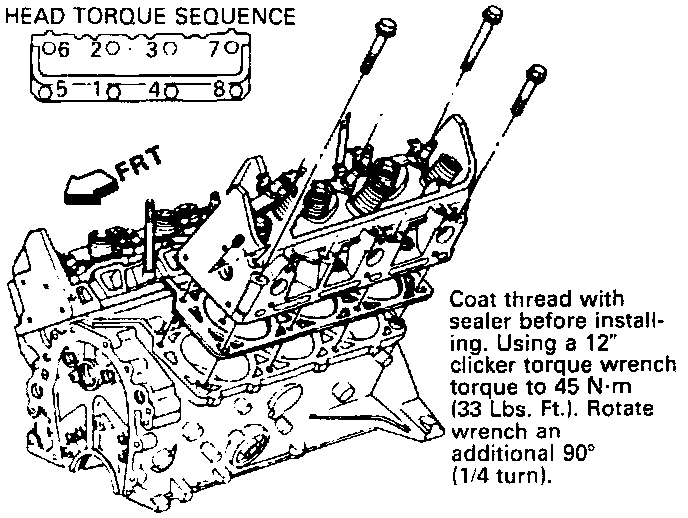

In the sequence shown (refer to image):

^ Torque bolts to 45 N.m (33 lbs. ft.)
^ Rotate bolts an additional 90° (1/4 turn)
