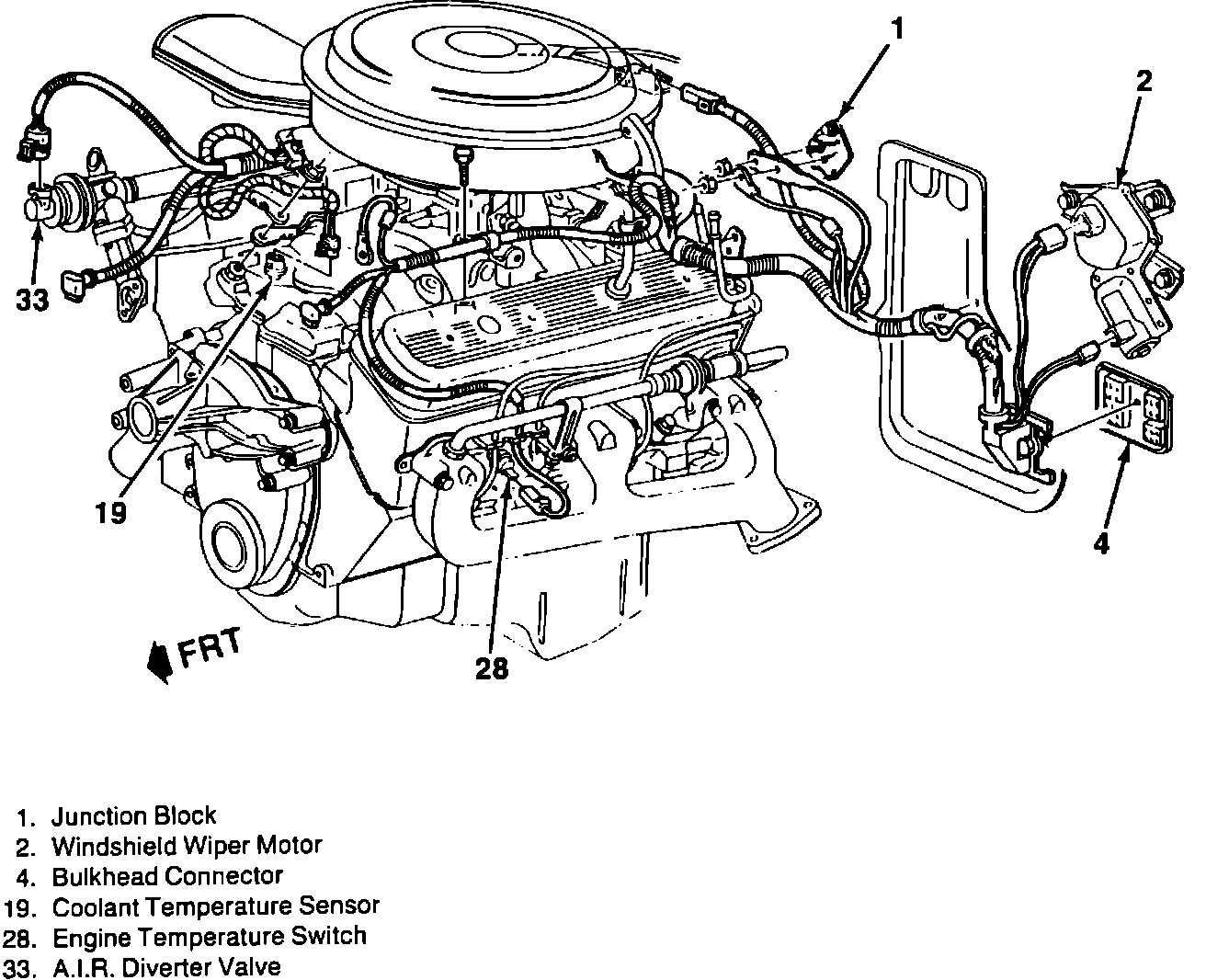

Left Side View

Engine Wire Routing:

1 = JUNCTION BLOCK.
2 = WINDSHIELD WIPER MOTOR.
4 = BULKHEAD CONNECTOR.
19 = COOLANT TEMPERATURE SENSOR.
28 = ENGINE TEMPERATURE SWITCH.
33 = AIR DIVERTER VALVE.
