Crankshaft Position Sensor: Service and Repair

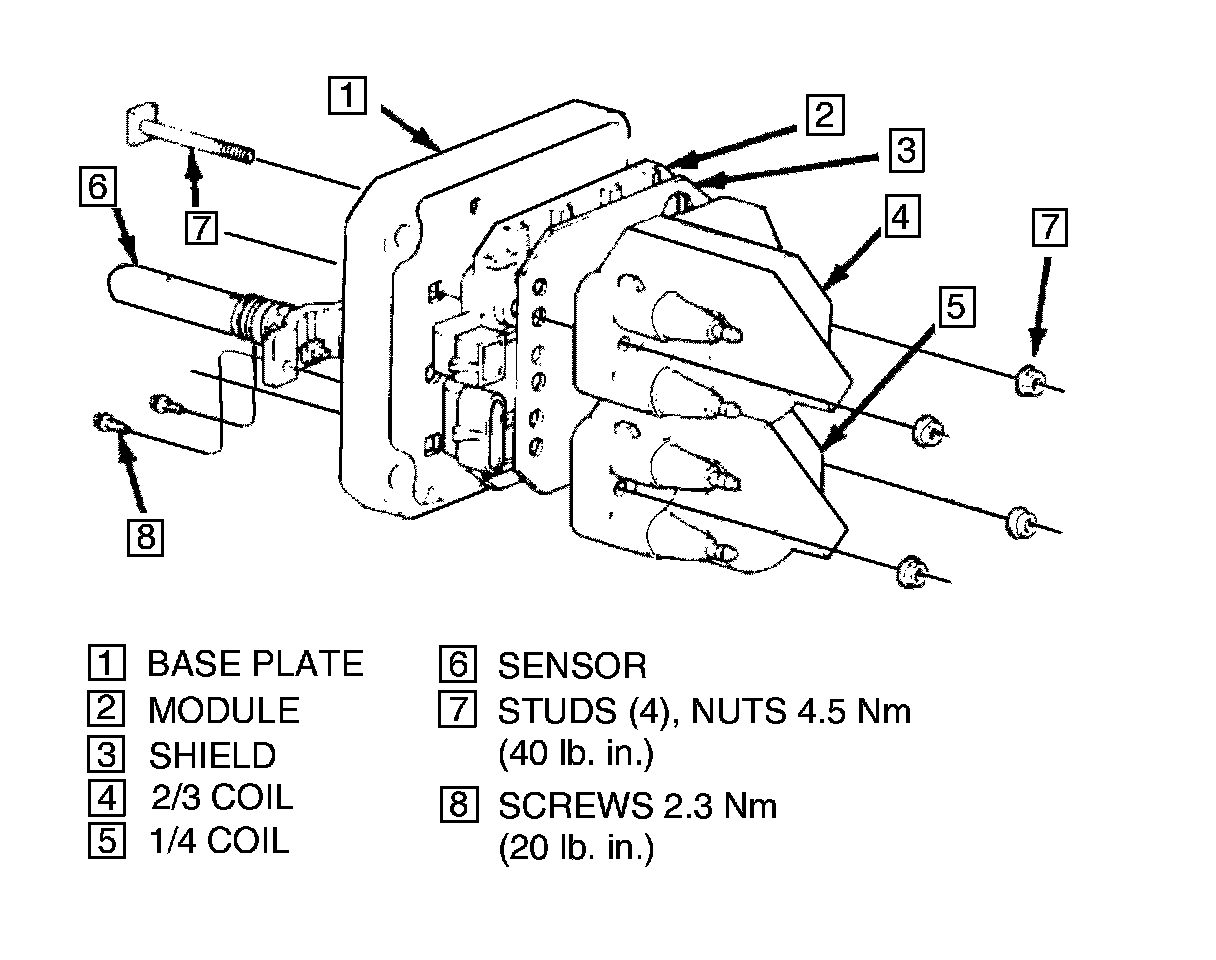

Crankshaft Sensor

Removal

1. Negative battery cable.
2. DIS assembly. Service and Repair
3. Sensor screws (2).
4. Sensor from DIS assembly.

Inspect
^ Sensor o-ring for wear, cracks or leakage. Replace if necessary. Lube new o-ring with engine oil before installing.

Installation

1. Sensor to DIS assembly. Service and Repair
2. Sensor screws (2)

Torque to 2.3 Nm (20 lb in)

3. DIS assembly to engine.
4. Negative battery cable.
