Convertible

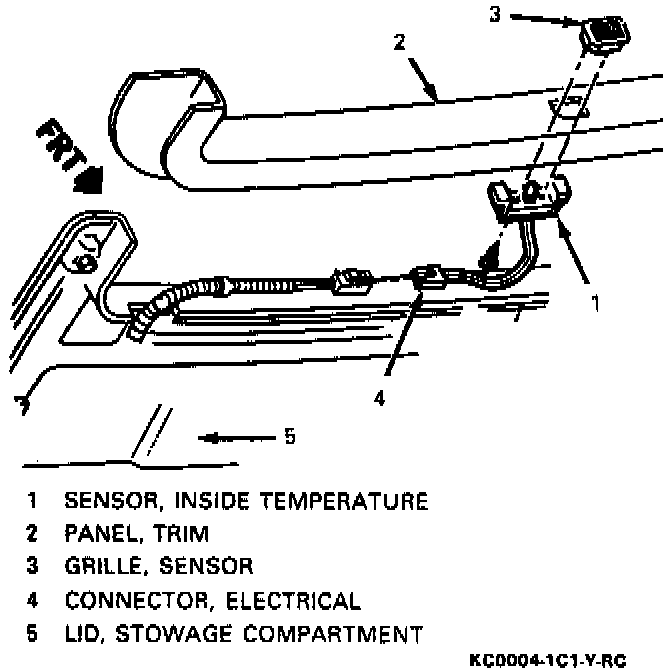

In Car Temperature Sensor:

REMOVE
1. Battery negative cable.
2. Folding top stowage compartment lid panel.
3. Inside temperature sensor attaching screws, sensor and grille.
4. Sensor electrical connector.

INSTALL
1. Inside temperature sensor electrical connector.
2. Grille and temperature sensor. Tighten temperature sensor screws to 1.4 Nm (12 in lb).
3. Folding stowage compartment lid trim panel.
4. Battery negative cable.
