A/T - 4L60 Fluid Leaks at Speed Sensor

90Chevy33
Number: 91-33-7A

Section: 7A

Date: July 1990

Corp. Bulletin No.: 037105R
Subject: TRANSMISSION FLUID LEAKS AT SPEED SENSOR


Model and Year: 1990-91 CAPRICE AND CAMARO WITH 4L60 AUTOMATIC TRANSMISSION
TO: ALL CHEVROLET DEALERS

CONDITION:

Transmission fluid leaks at the vehicle speed sensor.

CAUSE:

The leak may be at the sensor seal to the transmission or at the electrical connector to the sensor.

CORRECTION:

A new series of transmission speed sensors with improved anti-leak characteristics should be used to correct the condition.

Use: P/N 10456087 REPLACES P/N 10456020

P/N 10456088 REPLACES P/N 10456021

P/N 10456089 REPLACES P/N 10456022

See Parts Book for proper numbers.

Parts are currently availabile from GMSPO.


Labor Operation Number: K6310

Labor Time: 0.5 hrs.

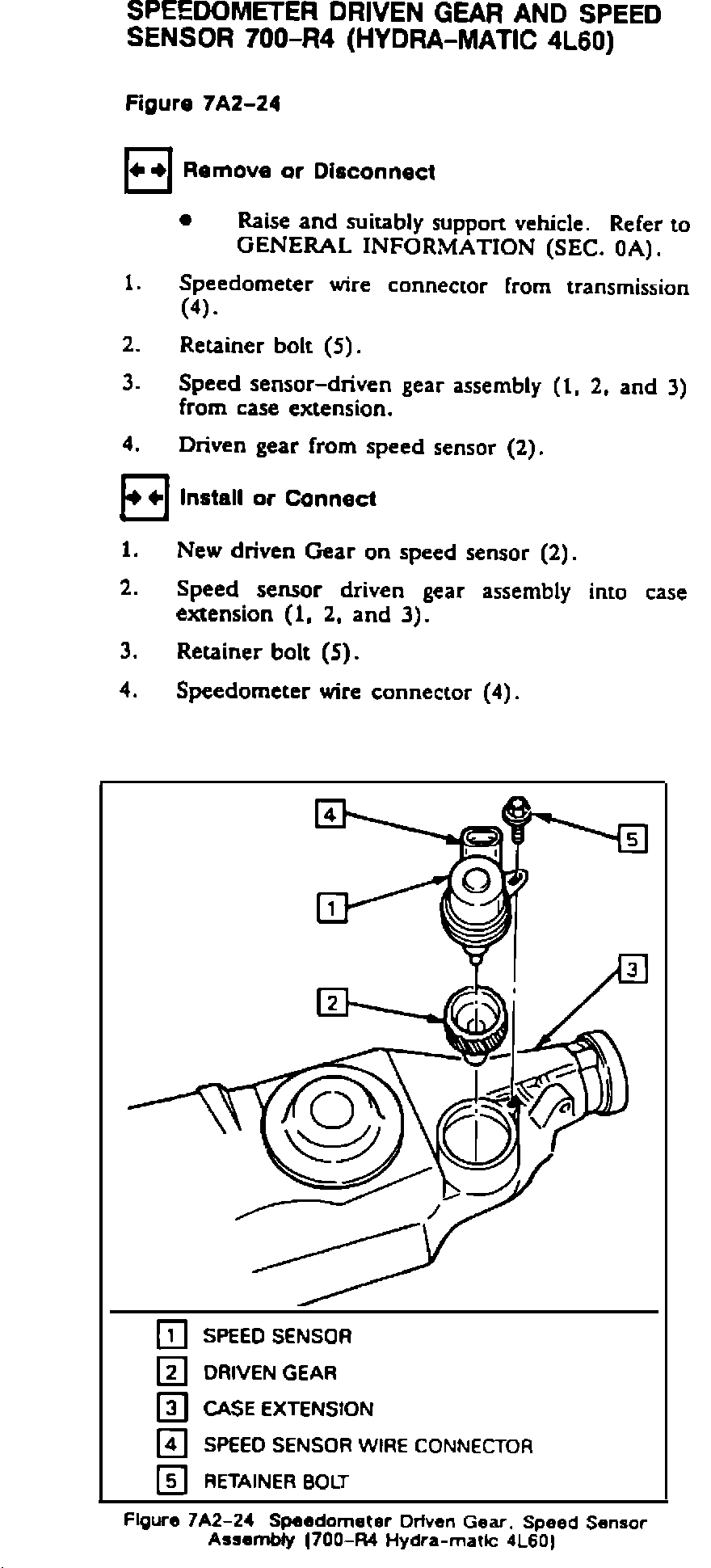

The attached art work/repair information supplements the unit repair for speed sensor/ speedometer driven gear given in Section 7 of the service manual.
