Battery - General Specifications Chart Update
9214chevy01
Number:
90-175-6D
Section:
6D
Date:
February 1990
Corporate Bulletin No.: 016401
Subject:
BATTERY CHART GENERAL SPECIFICATIONS UPDATE
Model and Year:
1990 Y CAR
TO:
ALL CHEVROLET DEALERS

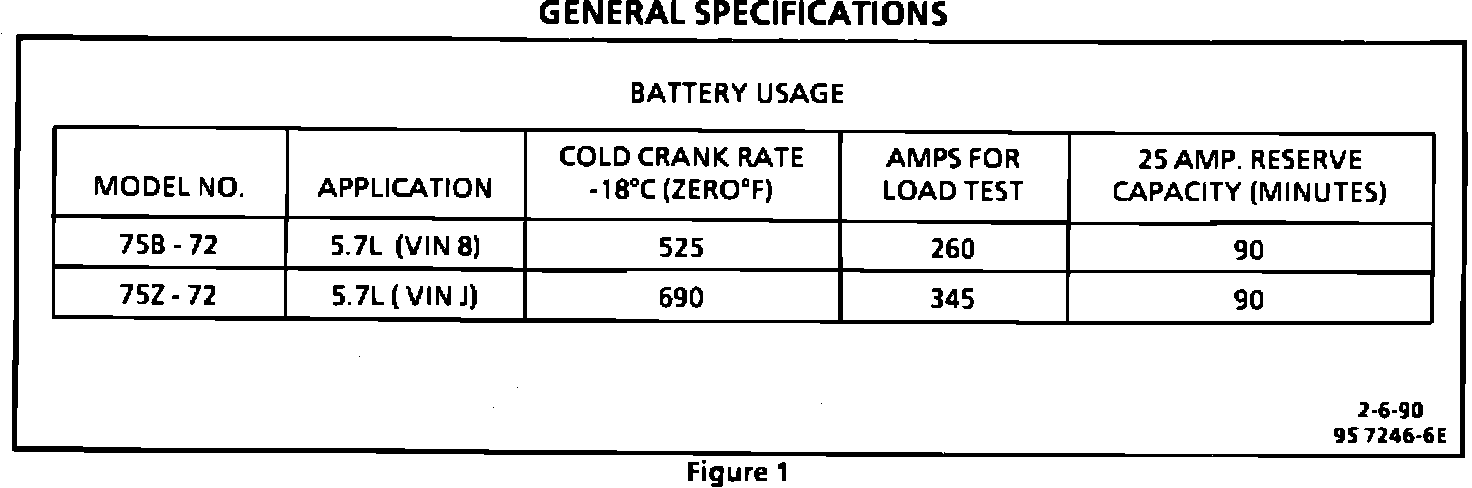

This bulletin reflects revisions made to the General Specifications Chart which appears in the 1990 "Y" Carline Service Manual, Section 6D1 "Battery" (as shown in Figure 1).
