Left Side View

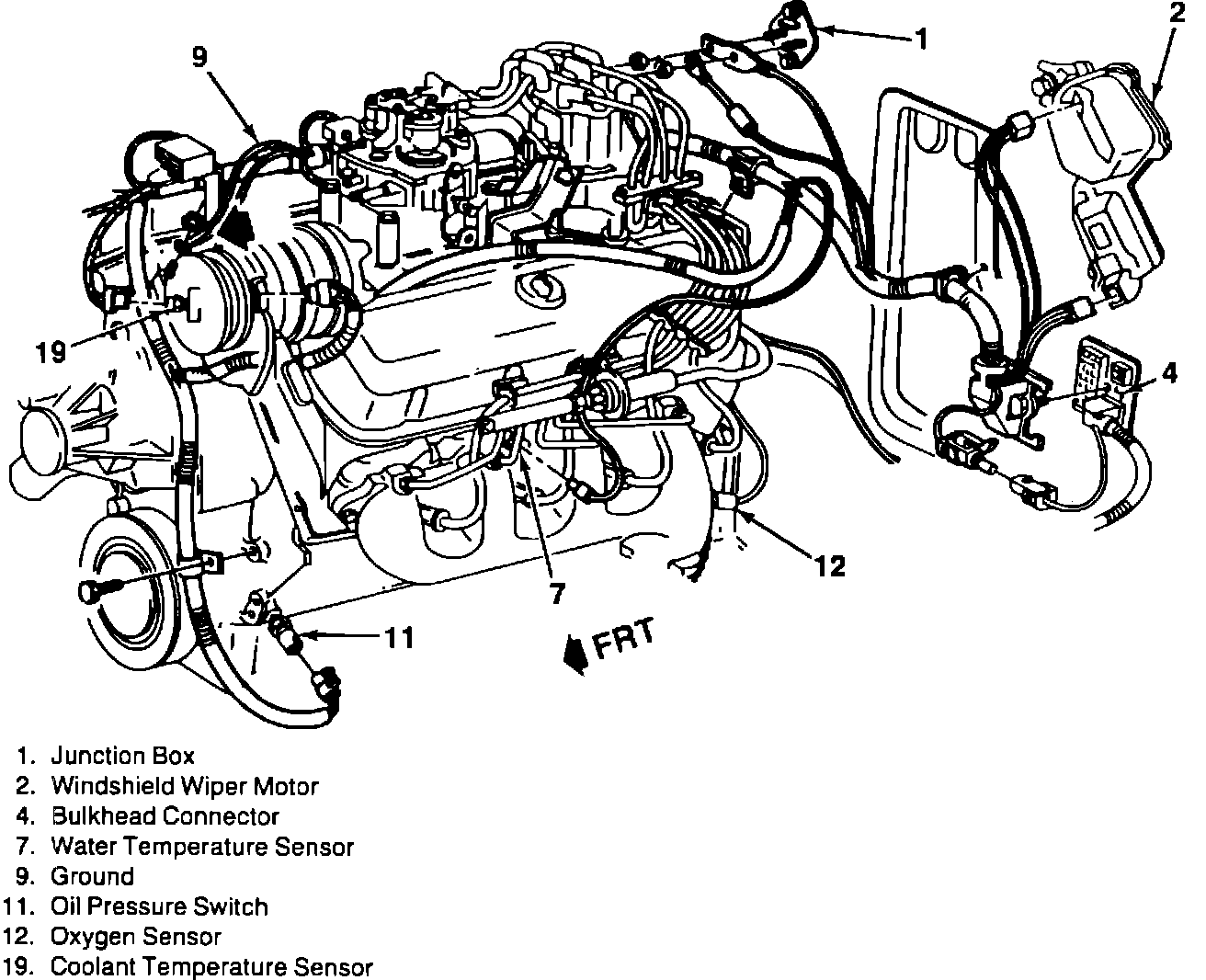

Engine Wire Routing:







1 = JUNCTION BLOCK.
2 = WINDSHIELD WIPER MOTOR.
4 = BULKHEAD CONNECTED.
9 = WATER TEMPERATURE SENSOR.
11 = OIL PRESSURE SWITCH.
12 = OXYGEN SENSOR.
19 = ENGINE COOLANT SENSOR.
