Right Side View

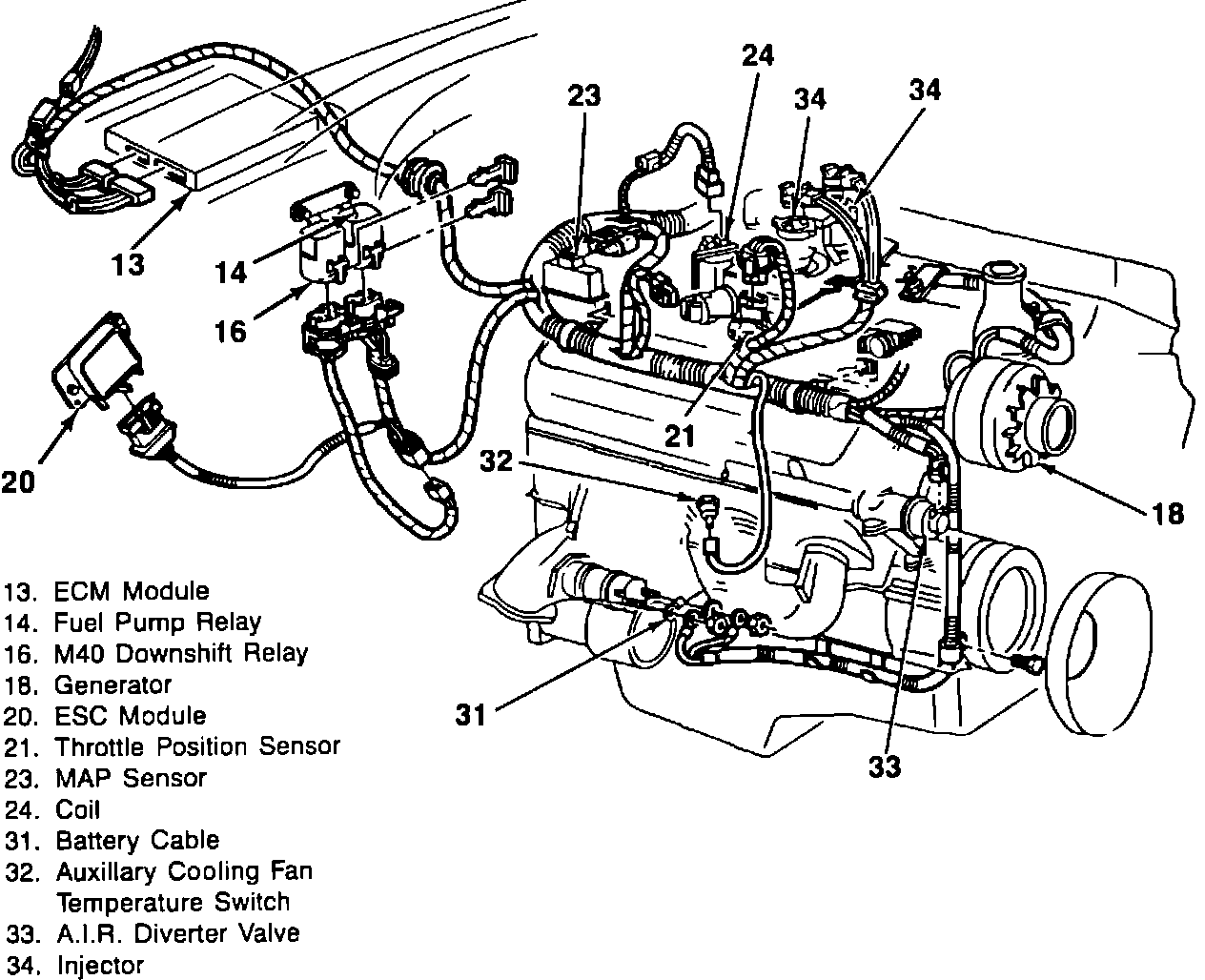

Engine Wire Routing:
13
=
ECM MODULE.
14
=
FUEL PUMP RELAY.
16
=
M40 DOWNSHIFT RELAY.
18
=
GENERATOR.
20
=
ESC MODULE.
21
=
THROTTLE POSITION SENSOR.
23
=
MAP SENSOR.
24
=
COIL.
31
=
BATTERY CABLE.
32
=
AUXILIARY COOLING FAN TEMPERATURE SWITCH.
33
=
AIR DIVERTER VALVE.
34
=
INJECTOR.
