ECM Terminal End - View Chart Revision
9216chevy08
Number:
91-260-6E
Section:
6E
Date:
MARCH 1991
Corporate Bulletin No.: 116513
Subject:
REVISED ECM TERMINAL END VIEW CHART
Model and Year:
1991 CORVETTE WITH 5.7L ENGINE
SERVICE UPDATE

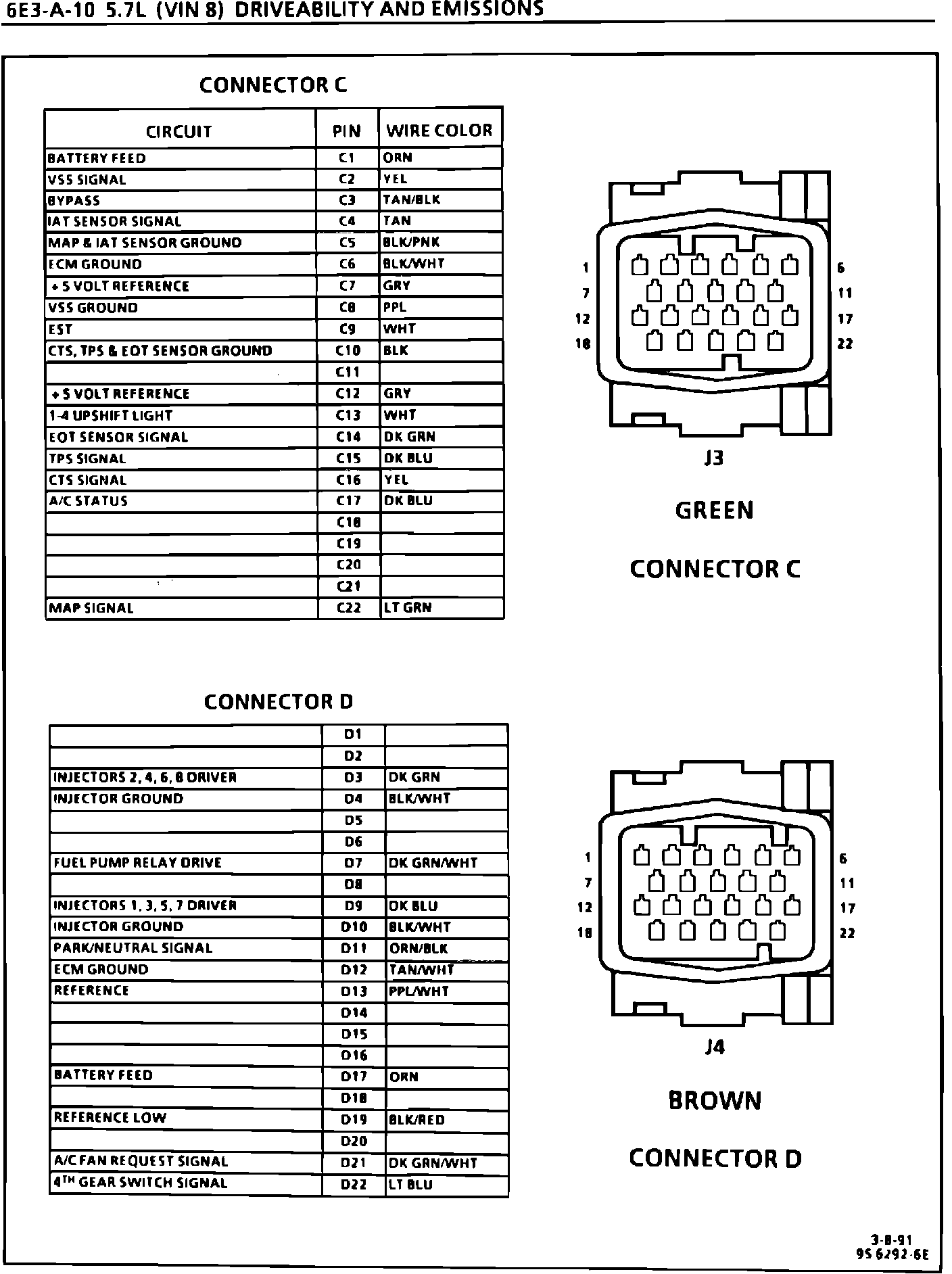

The attached ECM terminal and view chart replaces the chart found in "Driveability And Emissions" Section 6E3 on page 6E3-A-10 of the 1991 "Y" 5.7L (VIN 8) Corvette Service Manual.
