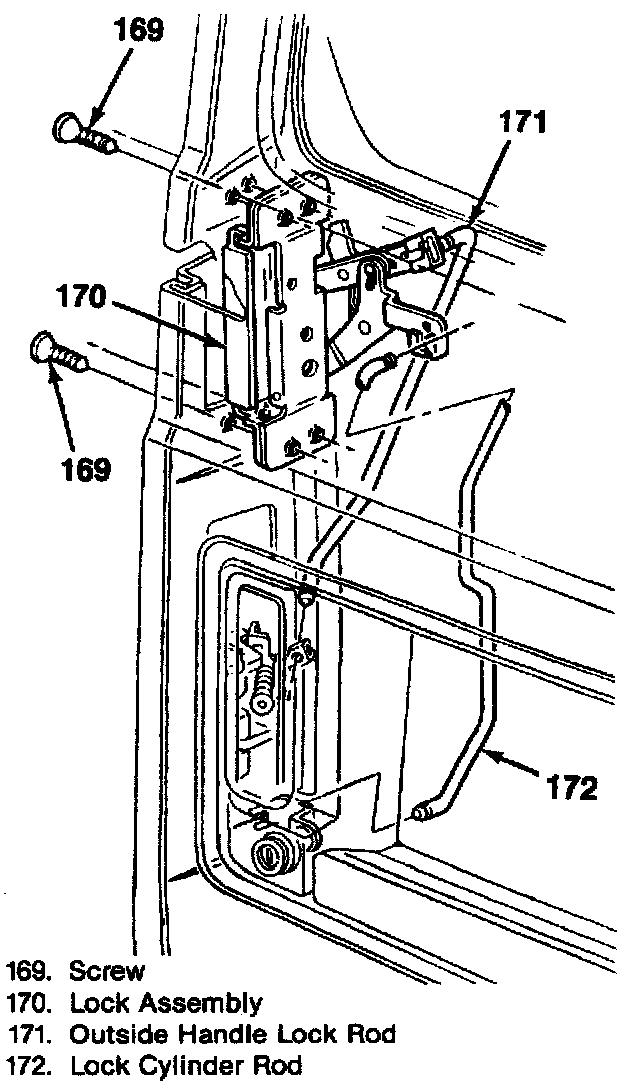

Lock Assembly
Remove or Disconnect 1.
Door
trim panel.
2.
Control rods from the lock assembly. Pry the clip anchor out of the hole, and push the clip away from the lever. Pull the rod and the clip away from the lever.
3.
Door to lock screws.
4.
Lock from the vehicle.
Install or Connect 1.
Clips to the lock.
2.
Lock to the vehicle.
3.
Door to lock screws.
4.
Control rods to the lock assembly through the clips.
5.
Door
trim panel.
