Engine Controls - Revised Code 26, Quad Driver

Number: 92-294-6E
Section: 6E
Date: SEPT. 1992
Corporate Bulletin No.: 216506R
ASE No: A1, A8

Subject:
CODE 26 REVISED

Model and Year:
1992 BERETTA ONLY WITH 2.3L ENGINE

SERVICE UPDATE

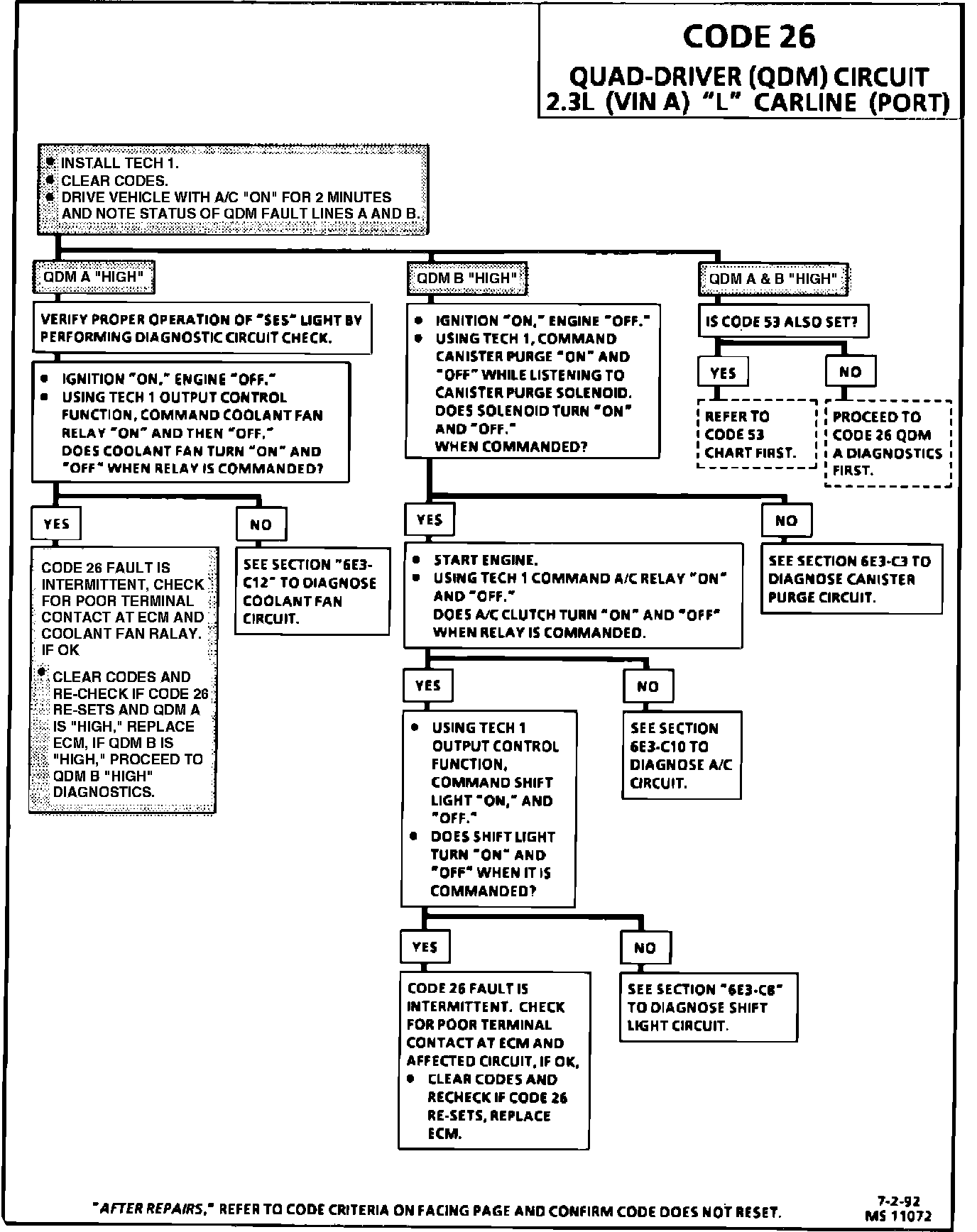

This bulletin is being revised to include an updated Code 26 Chart for all 1992 "L" Carlines equipped with the 2.3L (VIN A) engine. The Chart has been enhanced to incorporate improved diagnostics with the aid of a Tech 1 Scan tool.
