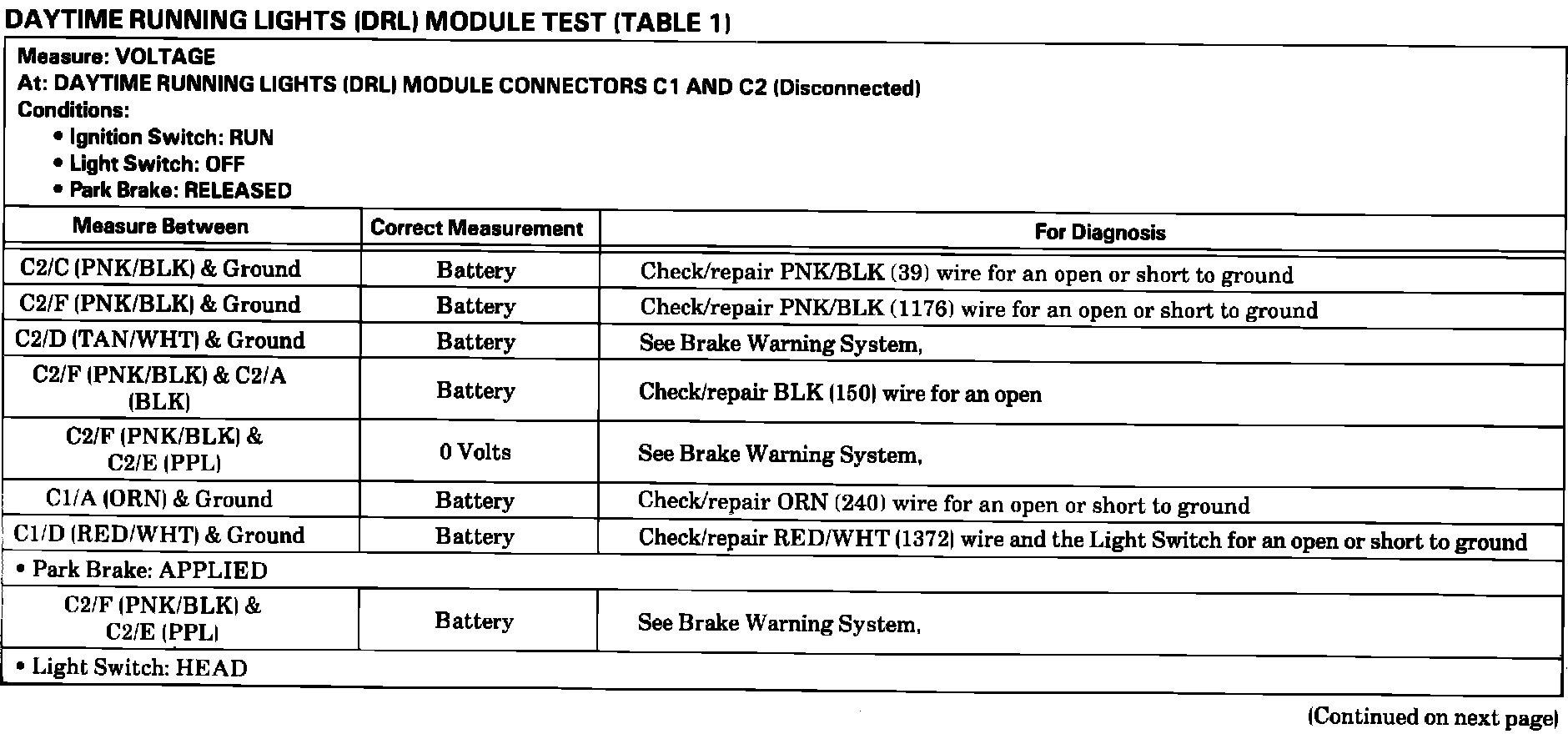

Table 1 Daytime Running Lights Module Test
SYSTEM DIAGNOSISIf the Daytime Running Lights System or the
Turn Signals do not operate properly, perform the
Daytime Running Lights Module Test.

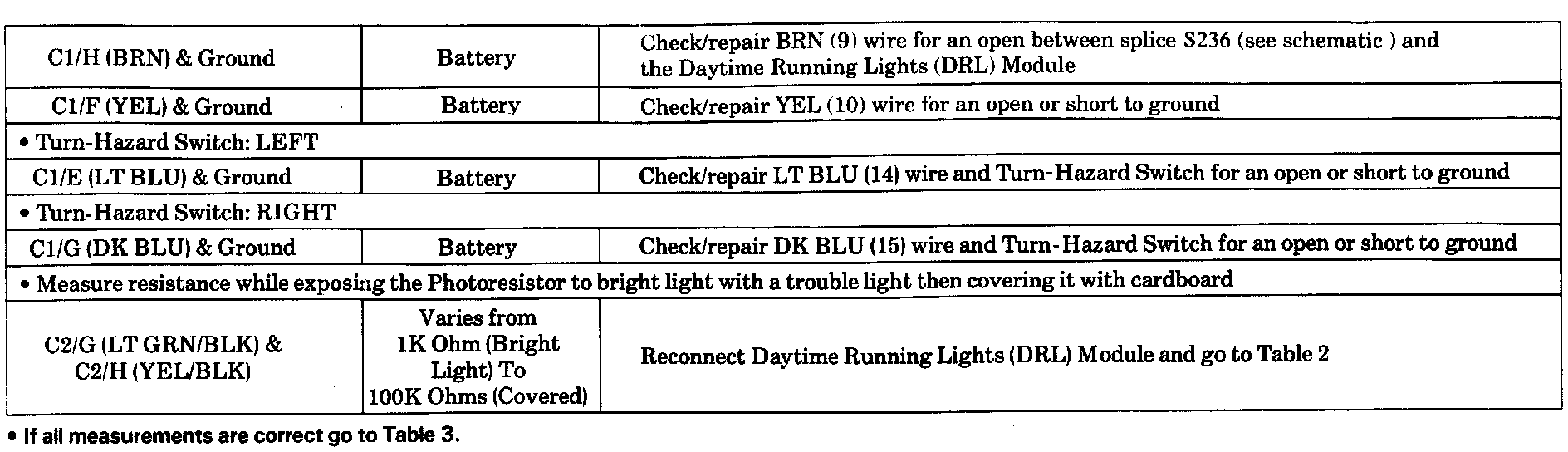

NOTE: The following tests assume that Headlights and Exterior Lights operate using the Light Switch.Daytime Running Lights Test Table 1:
Daytime Running Lights Test Table 1:
