Knee Diverter: Service and Repair

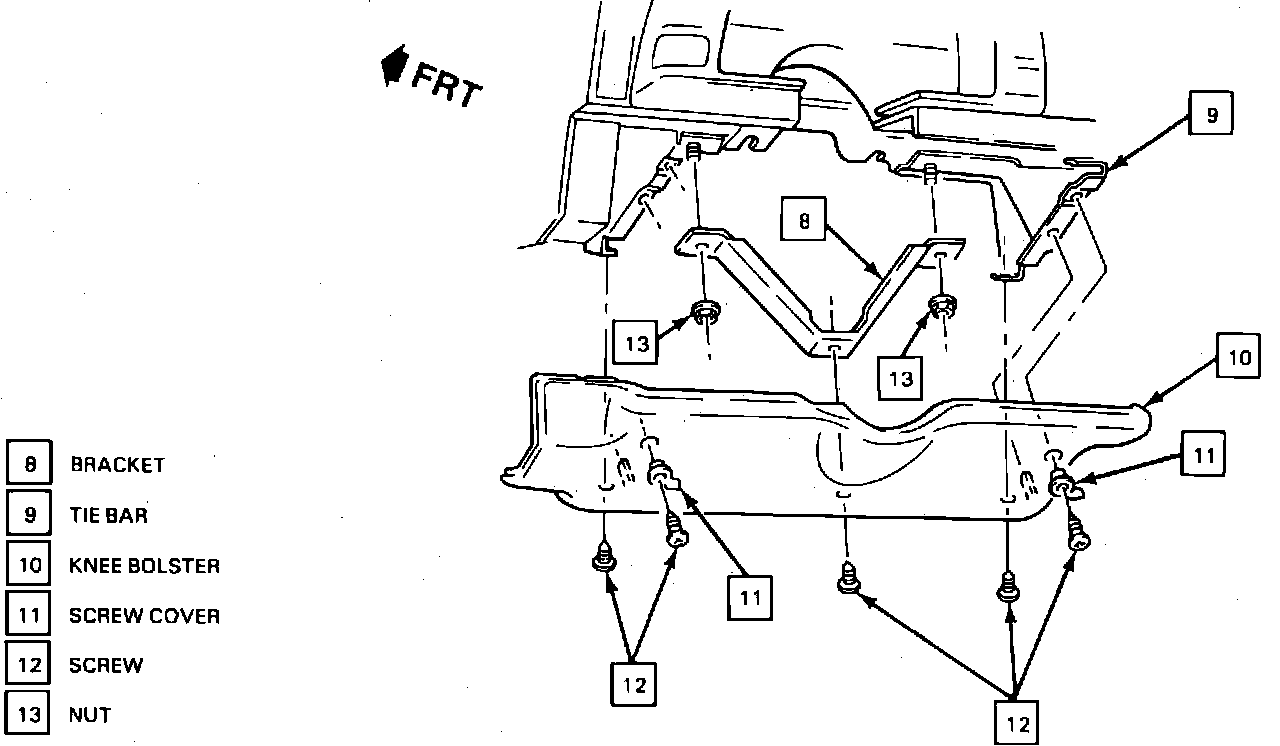

Fig. 317 Knee Bolster Replacement:






1. Deactivate airbag system as described under MAINTENANCE PROCEDURES/AIRBAG DEACTIVATION.
2. Remove knee bolster retaining screws, Fig. 317.
3. Reverse procedure to install, noting the following:
a. Following installation, activate airbag system as described under MAINTENANCE PROCEDURES/AIRBAG ACTIVATION.
b. Turn ignition switch to the On position and verify the ``Inflatable Restraint'' indicator flashes 7 to 9 times then turns Off. If indicator does not respond, refer to DIAGNOSIS AND TESTING PROCEDURE/TESTING PROCEDURES/RETRIEVING TROUBLE CODES.
