Lateral Accelerometer: Service and Repair

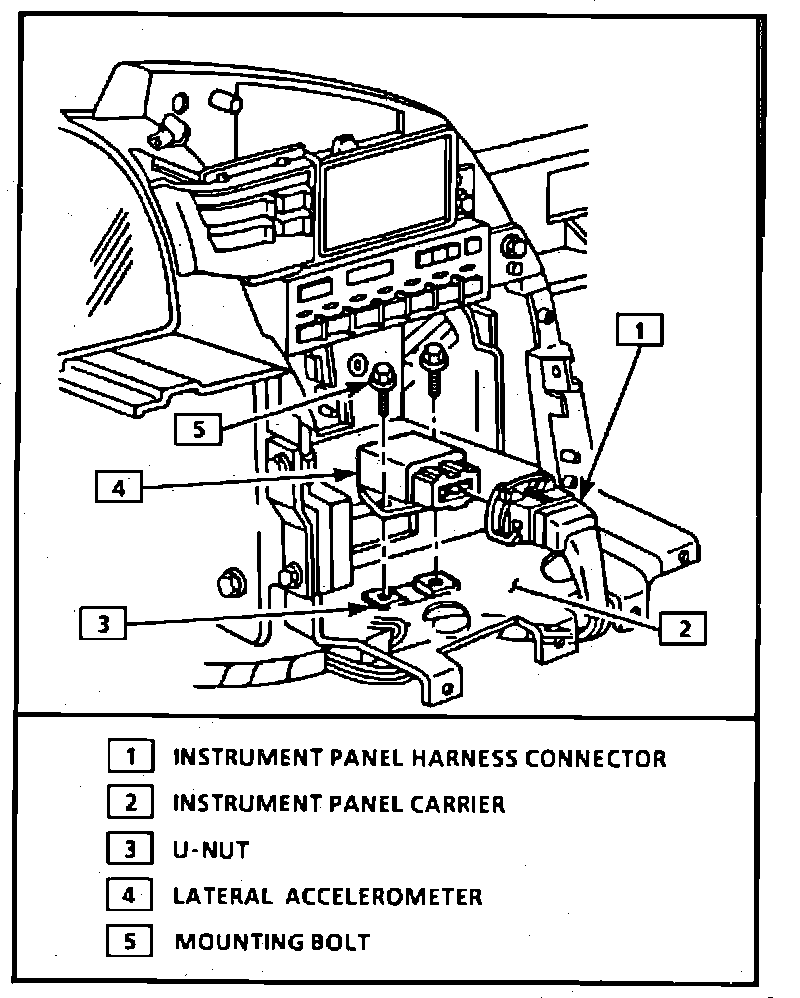

Fig. 92 Lateral Acceleration Switch (Accelerometer):

1. Disarm airbag system as outlined under MAINTENANCE PROCEDURES.
2. Disconnect battery ground cable.
3. Remove console trim plate.
4. Remove accessory trim plate.
5. Remove radio control assembly.
6. Depress ABS/ASR harness to lateral accelerometer electrical connector to relase, Fig. 92.
7. Remove accelerometer to I/P carrier attaching bolts.
8. Remove lateral accelerometer from I/P carrier.
9. Reverse procedure to install, noting the following:
a. Ensure accelerometer electrical connector is tight and fully seated.
b. Torque accelerometer attaching bolts to 29 inch lbs.
c. Rearm airbag system as outlined under MAINTENANCE PROCEDURES.
