Traction Control TP Module Service and Repair

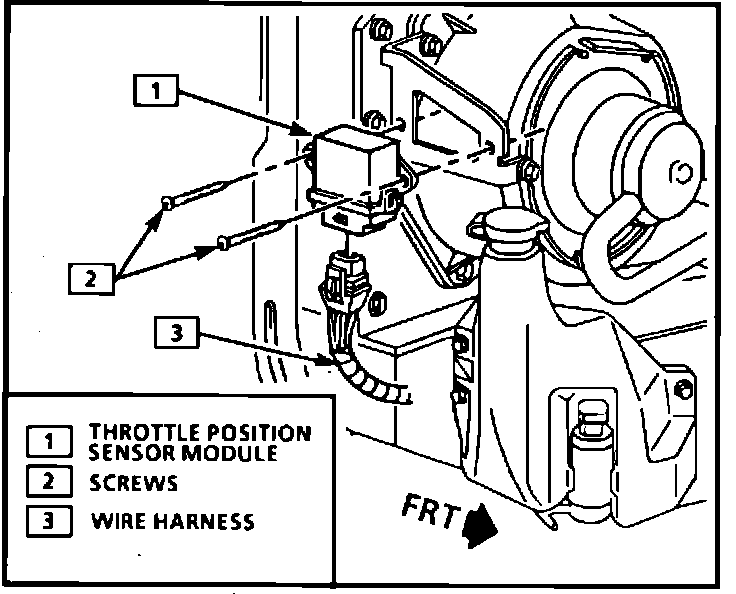

Fig. 96 TPS Module:

1. Disarm airbag system as outlined under MAINTENANCE PROCEDURES.
2. Disconnect battery ground cable.
3. Disconnect TPS module electric connector, Fig. 96.
4. Remove module attaching screws, then remove module.
5. Reverse procedure to install, noting the following:
a. Torque TPS module attaching screws to 13 inch lbs.
b. Rearm airbag system as outlined under MAINTENANCE PROCEDURES.
