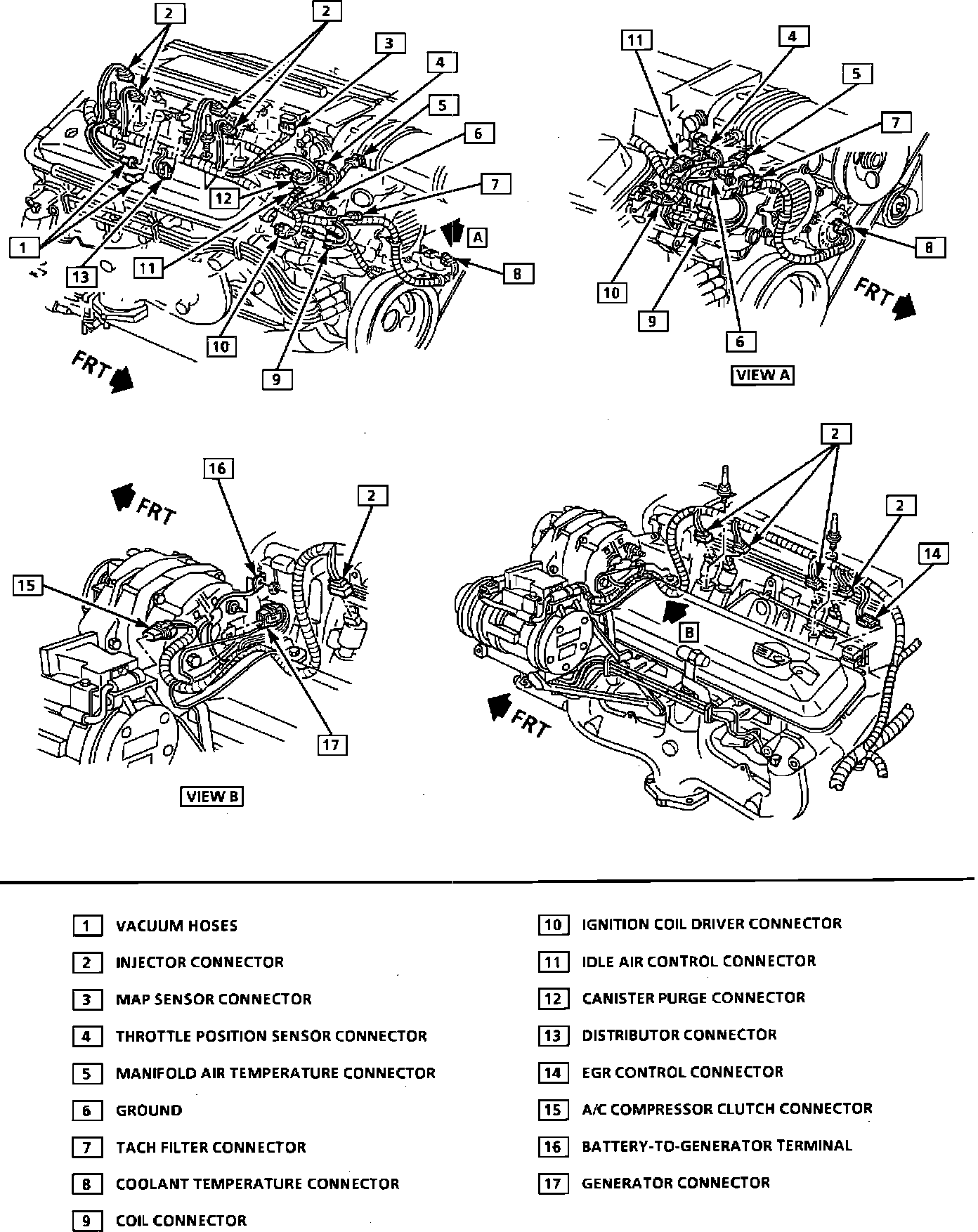

Front View

Front Pictorial View:

1 VACUUM HOSES
2 INJECTOR CONNECTOR
3 MAP SENSOR CONNECTOR
4 THROTTLE POSITION SENSOR CONNECTOR
5 MANIFOLD AIR TEMPERATURE CONNECTOR
6 GROUND
7 TACH FILTER CONNECTOR
8 COOLANT TEMPERATURE CONNECTOR
9 COIL CONNECTOR
10 IGNITION COL DRIVER CONNECTOR
11 IDLE AIR CONTROL CONNECTOR
12 CANISTER PURGE CONNECTOR
13 DISTRIBUTOR CONNECTOR

14 EGR CONTROL CONNECTOR
15 A/C COMPRESSOR CLUTCH CONNECTOR
16 BATTERY TO GENERATOR TERMINAL
17 GENERATOR CONNECTOR
