Drive Belt: Service and Repair

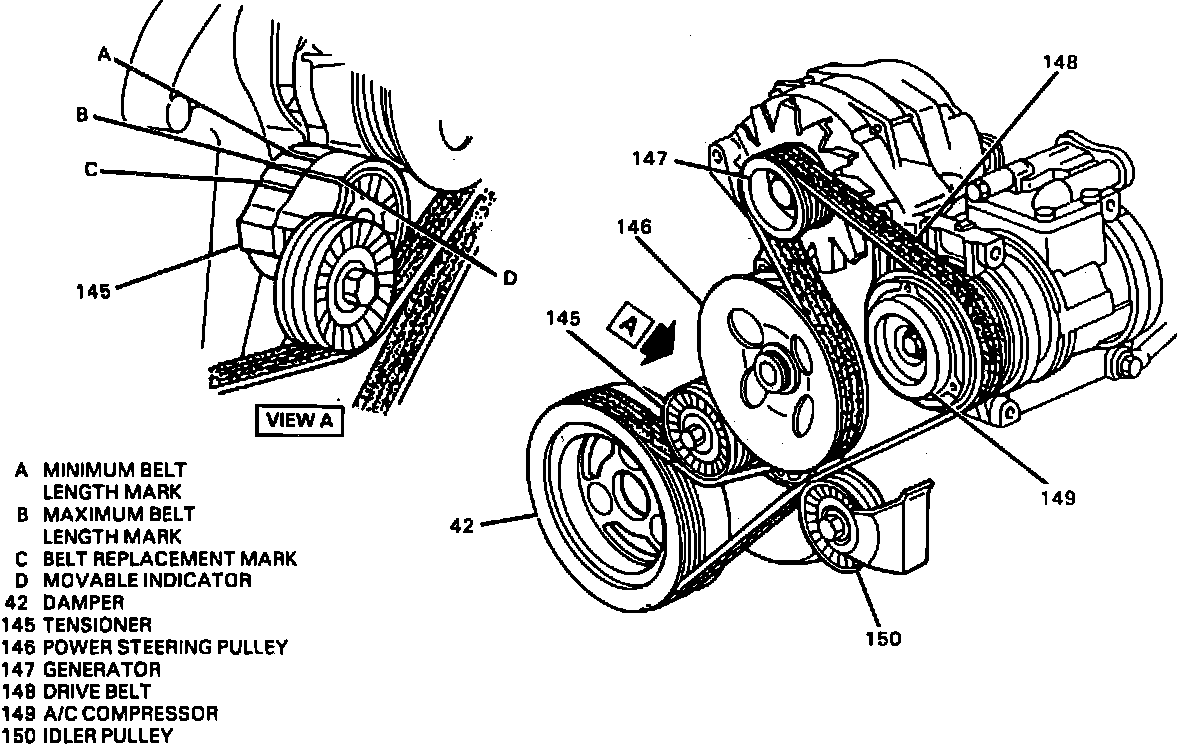

Serpentine Drive Belt Replacement:
1.
Using a suitable socket and handle on tensioner pulley bolt, lift tensioner upward in the clockwise direction, then remove serpentine
drive belt.
2.
Reverse procedure to install. Check to ensure belt tension indicator marks are within limit lines on belt tensioner indicator.
