Automatic Transmission/Transaxle: Locations

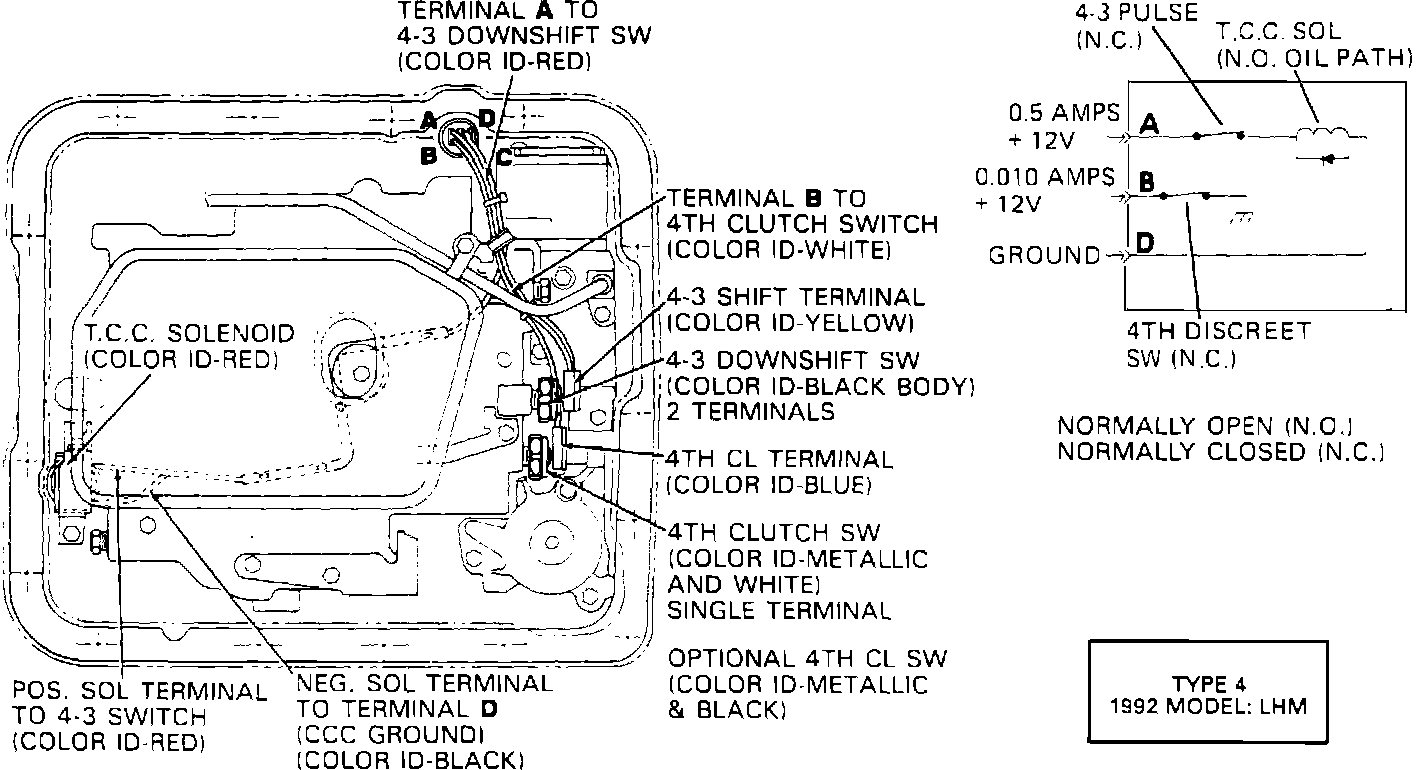

4L60 Trans Electrical Components Locations/Schematic Diagram (Type 4):

4L60-TYPE 4

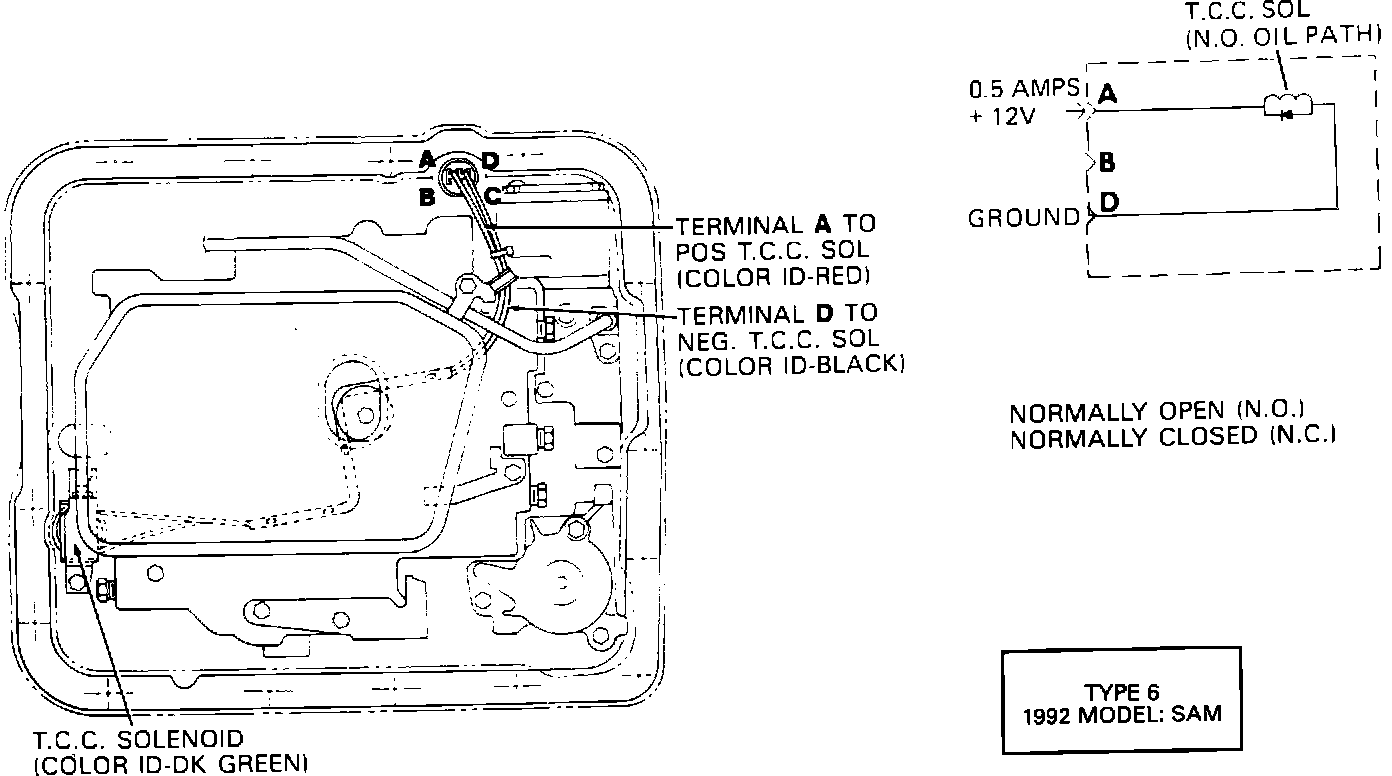

4L60 Trans Electrical Components Locations/Schematic Diagram (Type 6):

4L60-TYPE 6

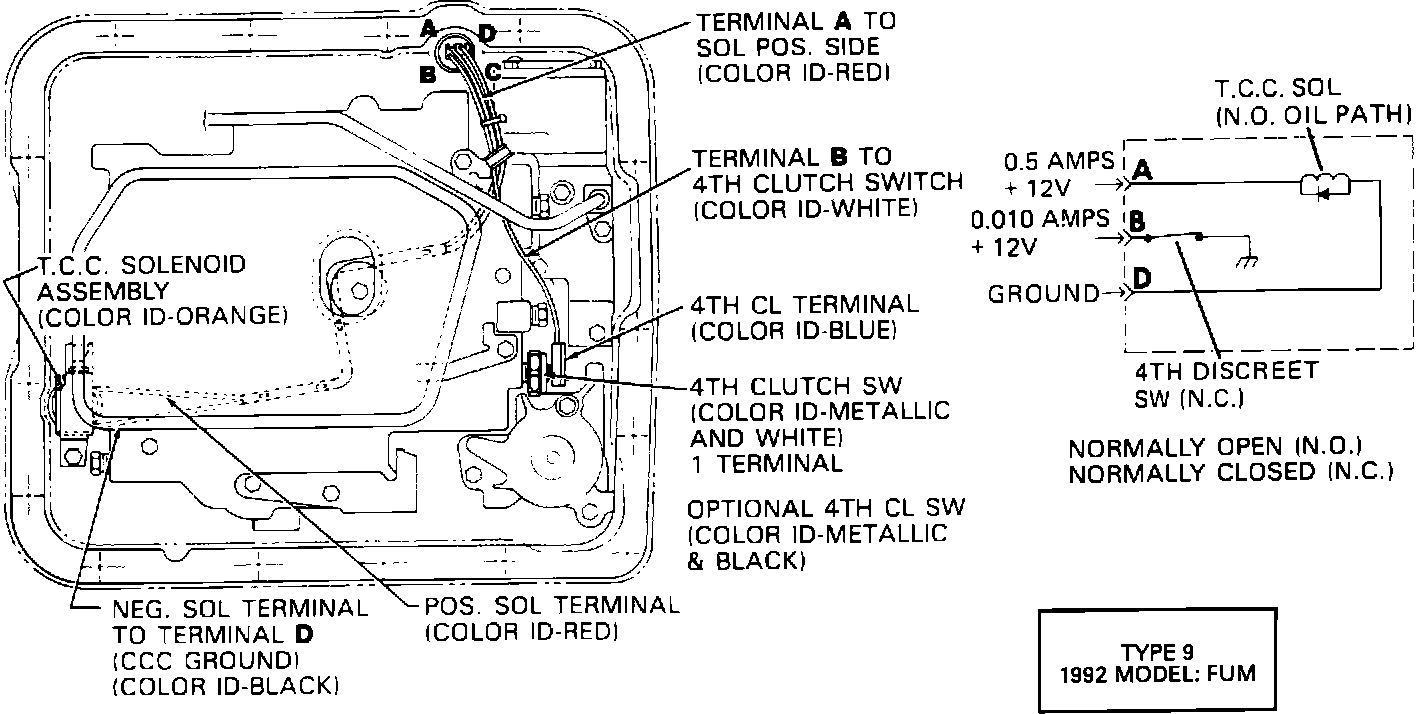

4L60 Trans Electrical Components Locations/Schematic Diagram (Type 9):

4L60-TYPE 9

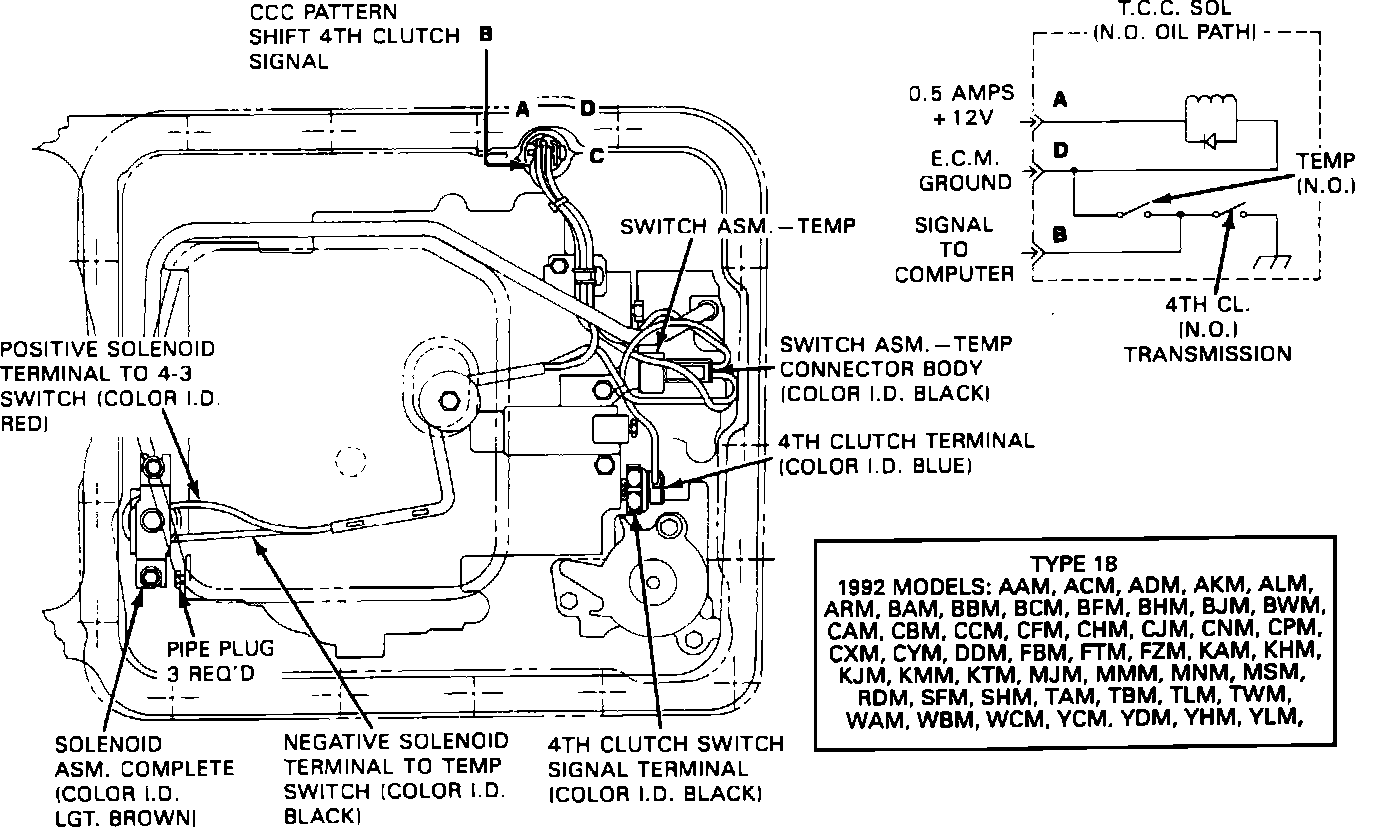

4L60 Trans Electrical Components Locations/Schematic Diagram (Type 18):

4L60-TYPE 18

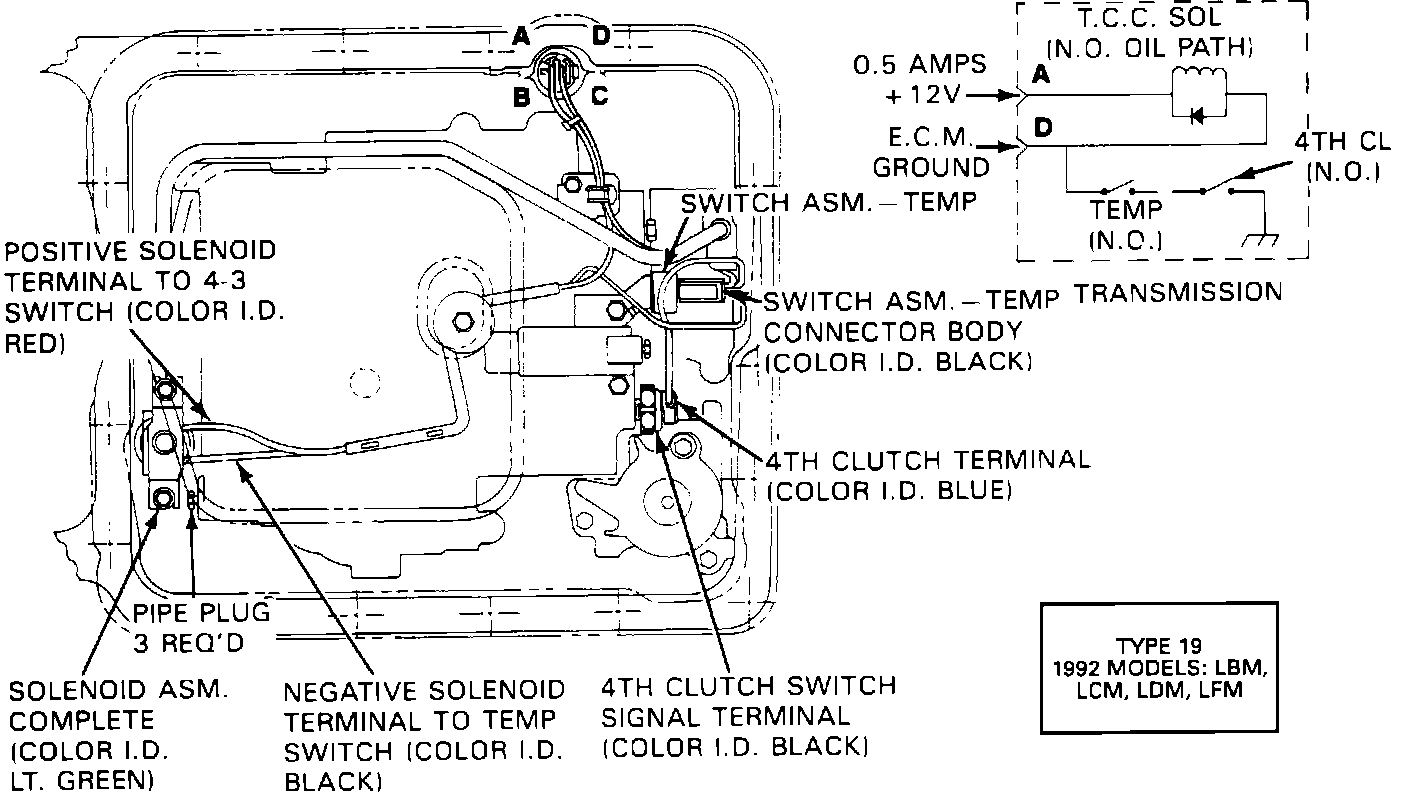

4L60 Trans Electrical Components Locations/Schematic Diagram (Type 19):

4L60-TYPE 19

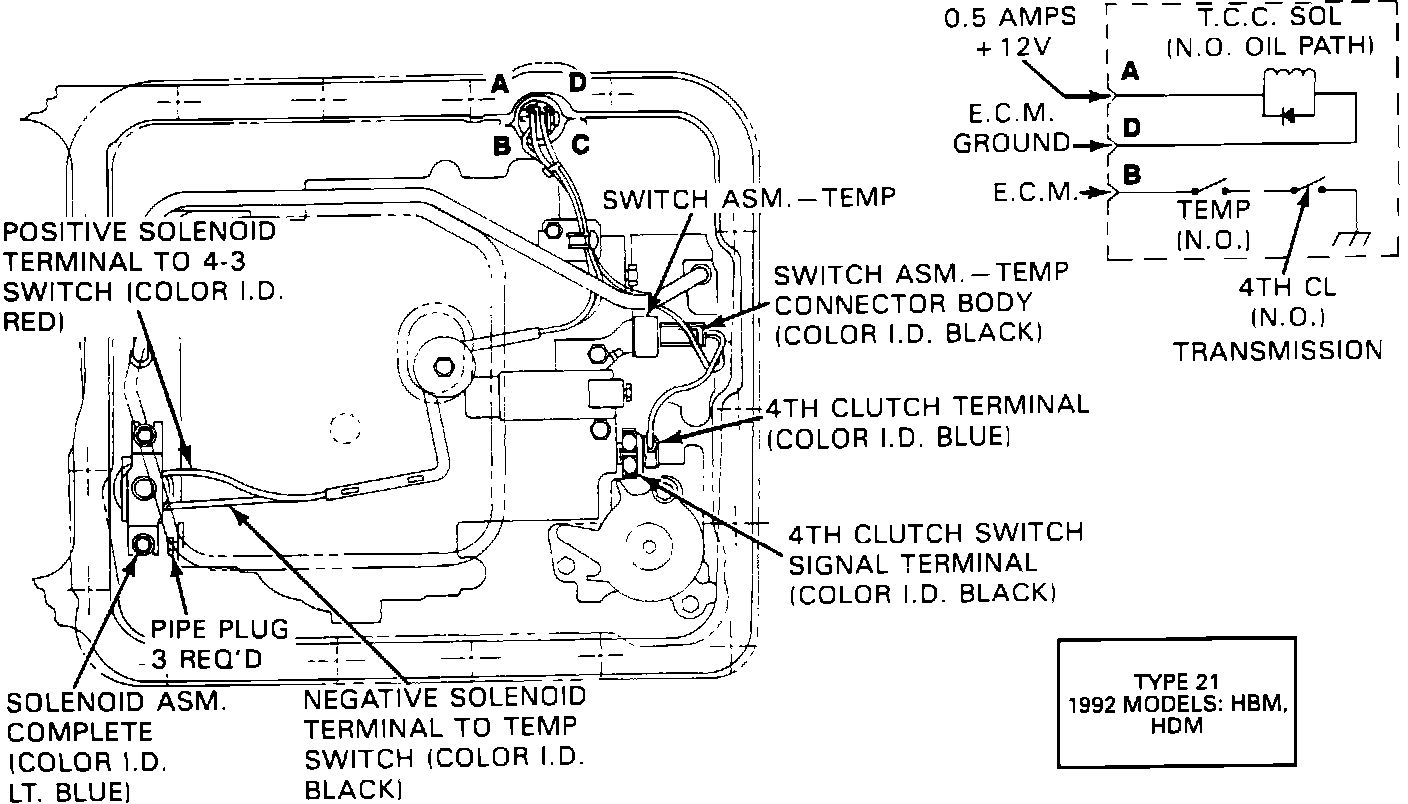

4L60 Trans Electrical Components Locations/Schematic Diagram (Type 21):

4L60-TYPE 21

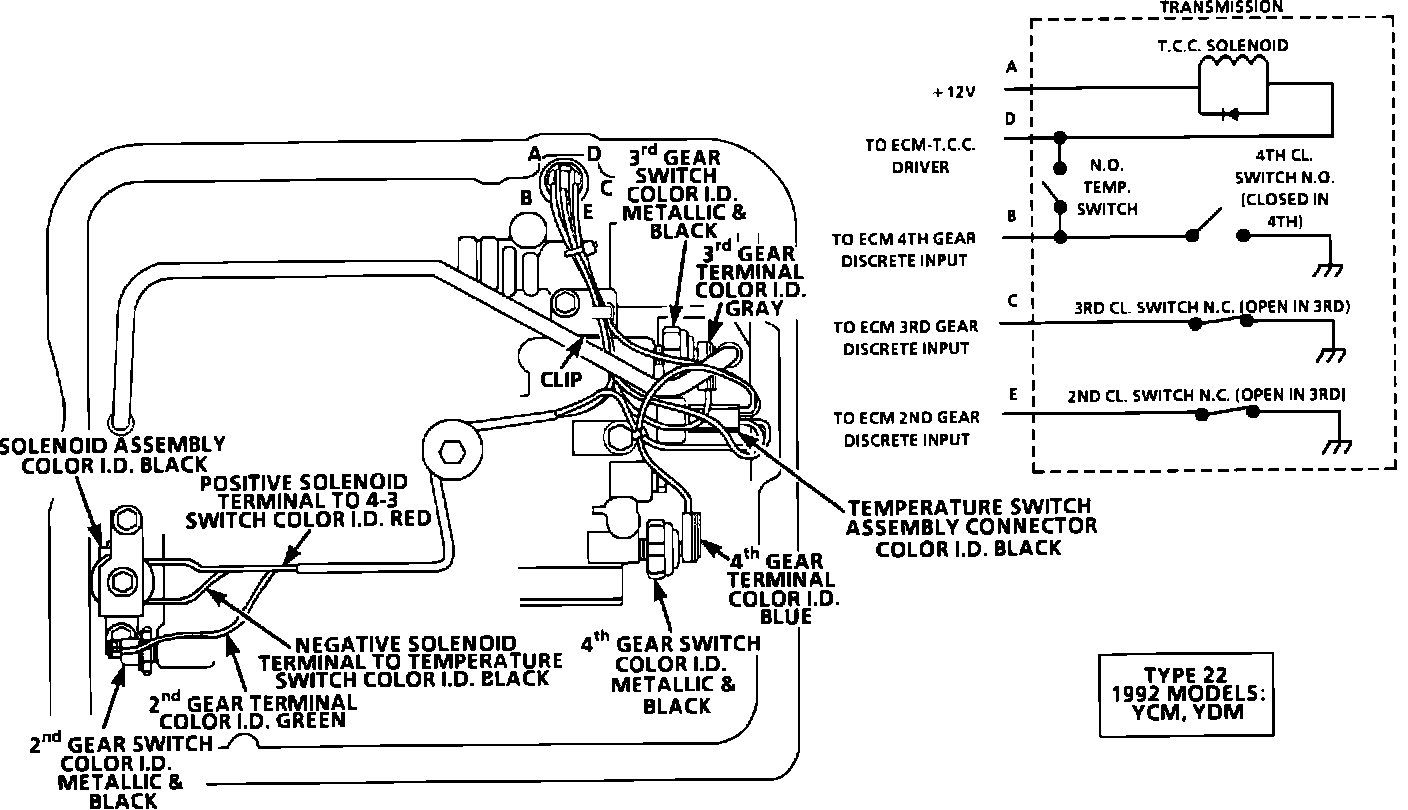

4L60 Trans Electrical Components Locations/Schematic Diagram (Type 22):

4L60-TYPE 22
