PROM - Cold Start Stall

Number: 92-351-6E

Section: 6E

Date: APRIL 1993

Corporate Bulletin No.: 376503

ASE No.: A1, A8

Subject:
COLD START STALL

Model and Year:
1992 C/K TRUCKS AND G-VAN WITH 5.0L ENGINE

CONDITION:

Some owners of 1992 model year C/K trucks and G vans with 5.0 liter V8 engines (VIN H) may comment of engine cold start stall. The potential stall generally occurs when the throttle is slightly opened.

CAUSE:

Initial cold start stalling was due to lean fueling during cold start operation.

CORRECTION:

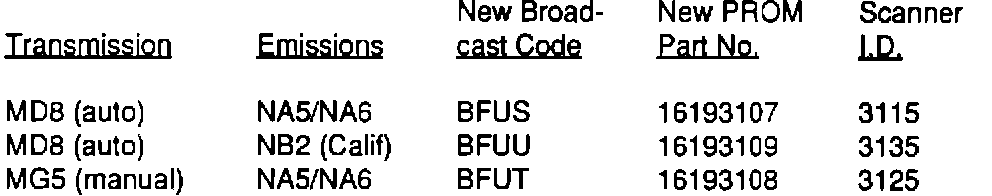

If normal diagnostics and service procedures do not correct the above condition, a revised calibration PROM should be installed (see illustration).

Parts are expected to be available April 19, 1993.

Use Labor Operation: T0500

Labor Times: C/K: 0.6 hour
G: 0.5 hour
