Coolant Temperature Sensor/Switch (For Computer): Service and Repair

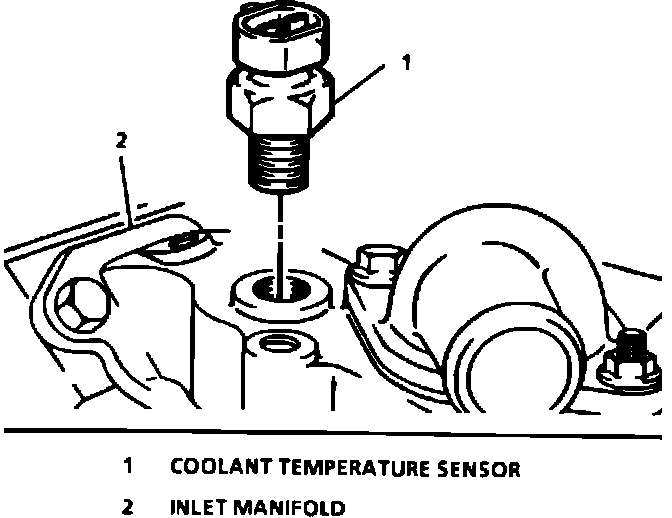

Coolant Temperature Sensor:
Remove or Disconnect: 1.
Negative battery cables
2.
Drain cooling system below level of sensor
3.
Electrical connector
4.
Coolant sensor
Install or Connect: 1.
Coolant sensor
2.
Electrical connector
3.
Refill coolant system
4.
Negative battery cables
