Harness Connector

ECM/PCM pin - voltage references not available at the time of this release. Only connector/terminal identification is provided.

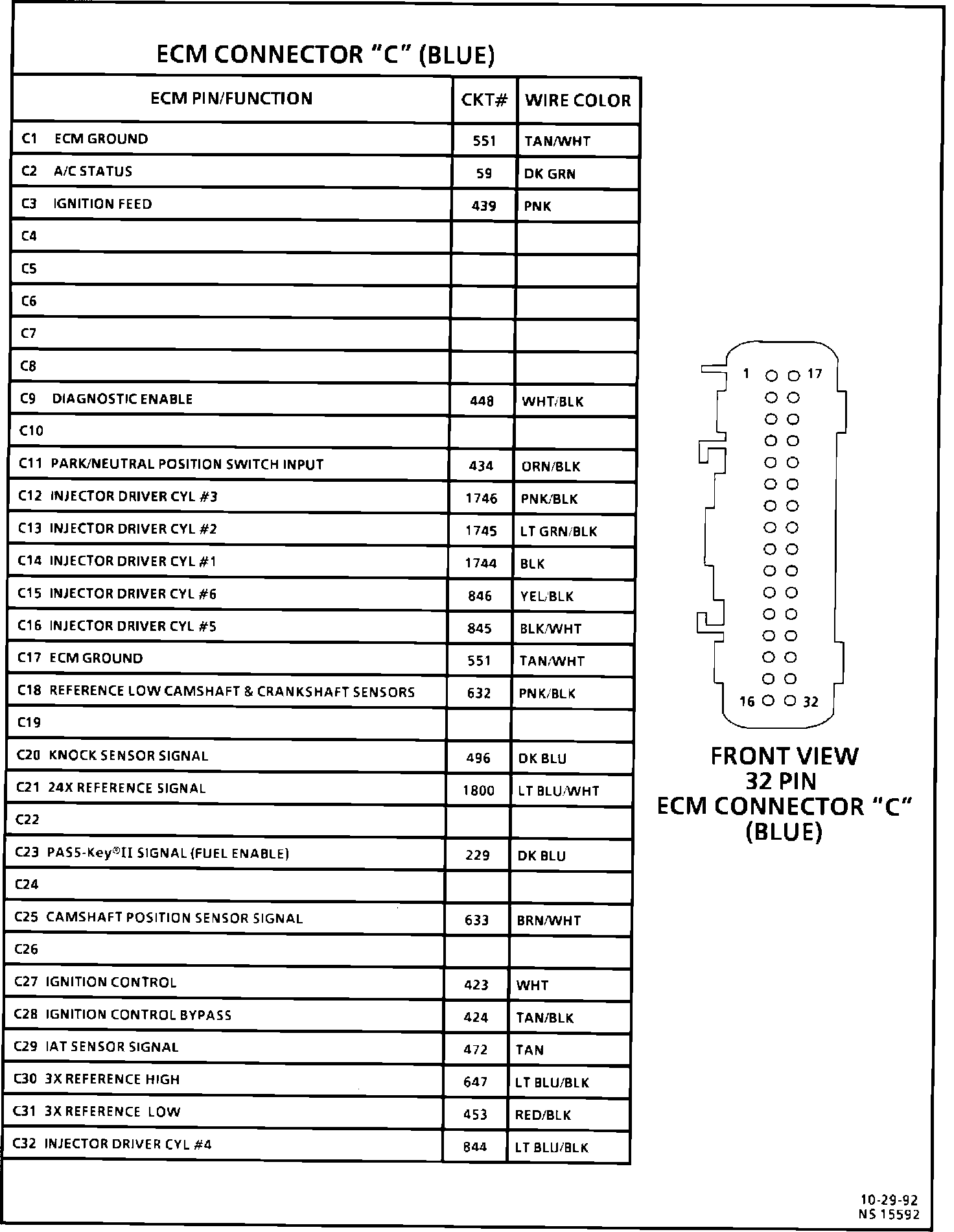

Control Module Connector And Terminal ID (1 Of 3):





PART 1 OF 3

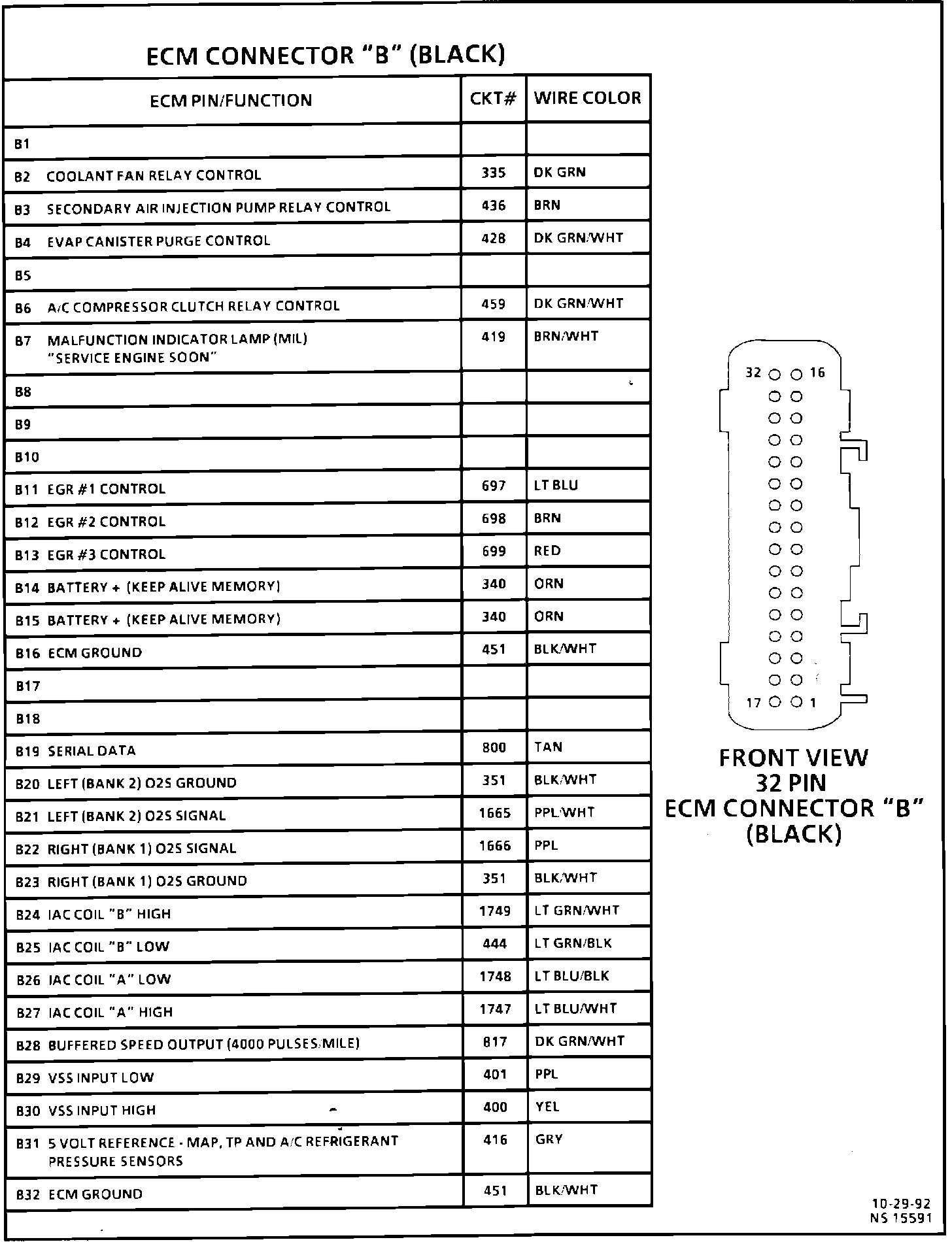

Control Module Connector And Terminal ID (2 Of 3):





PART 2 OF 3

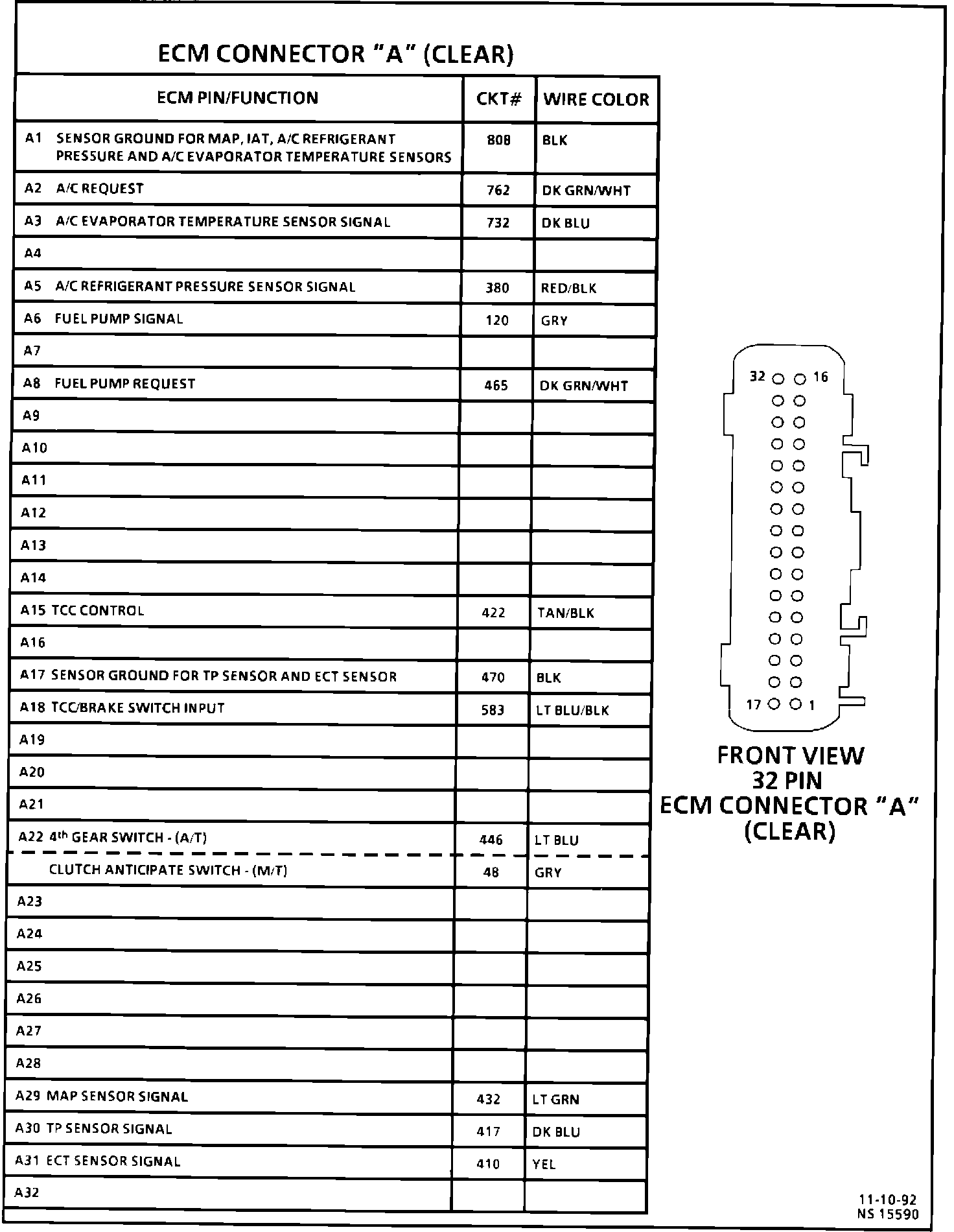

Control Module Connector And Terminal ID (3 Of 3):





PART 3 OF 3
