Electronic Ignition Module
ELECTRONIC IGNITION MODULETools Required: -
J 25034-B Power Steering Pump Pulley Remover
-
J 25034-5 Adapter
Remove or Disconnect 1.
Power steering pump pulley (229) using J 25034-B and J 25034-5.
2.
Power steering pump bracket retaining bolts.
3.
Power steering pump bolts (228) and pump (225).
4.

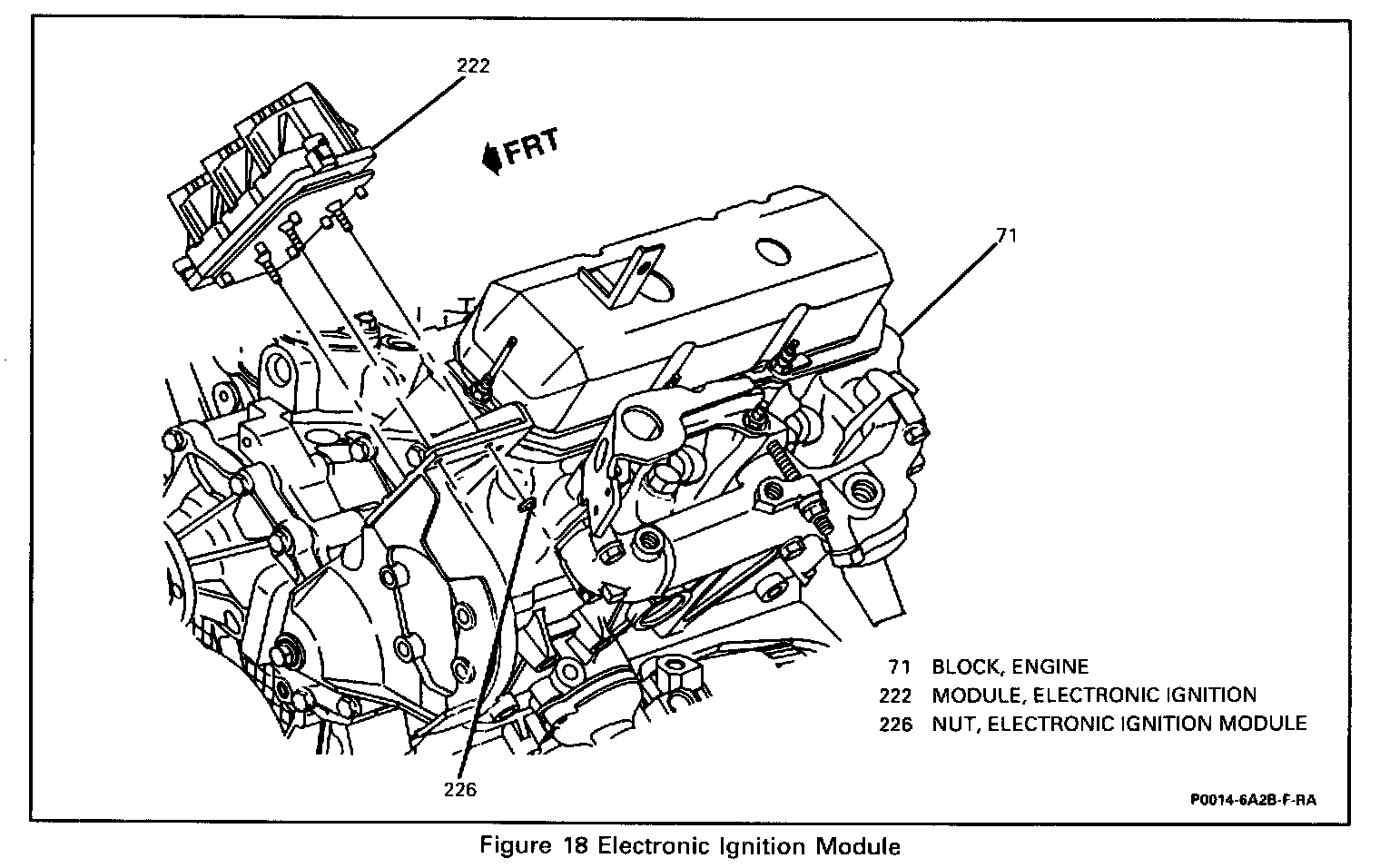

Electronic ignition module nuts (226) and electronic ignition module (223).
