Ignition Coil: Service and Repair

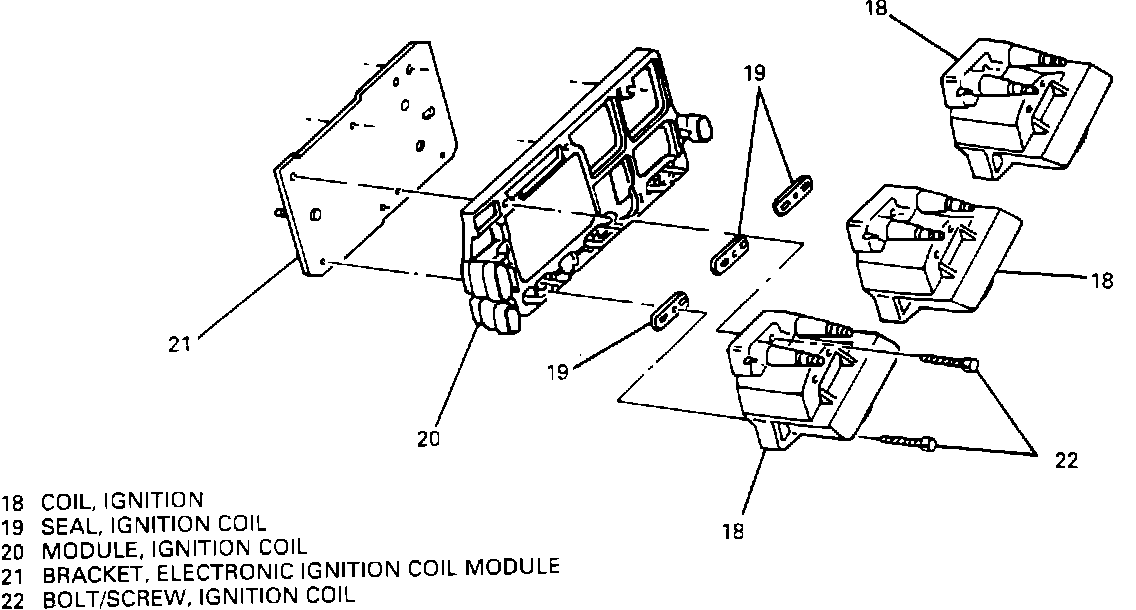

Ignition Coils And Module:
Remove or Disconnect: 1.
Remove spark plug wires
2.
Remove 2 screws securing coil to
ignition control module 3.
Remove coil
Install or Connect: 1.
Install coil
2.
Install and tighten 2 screws
Torque Value: 4-5 N-m (40 lb.in.)
3.
Connect spark plug wires
