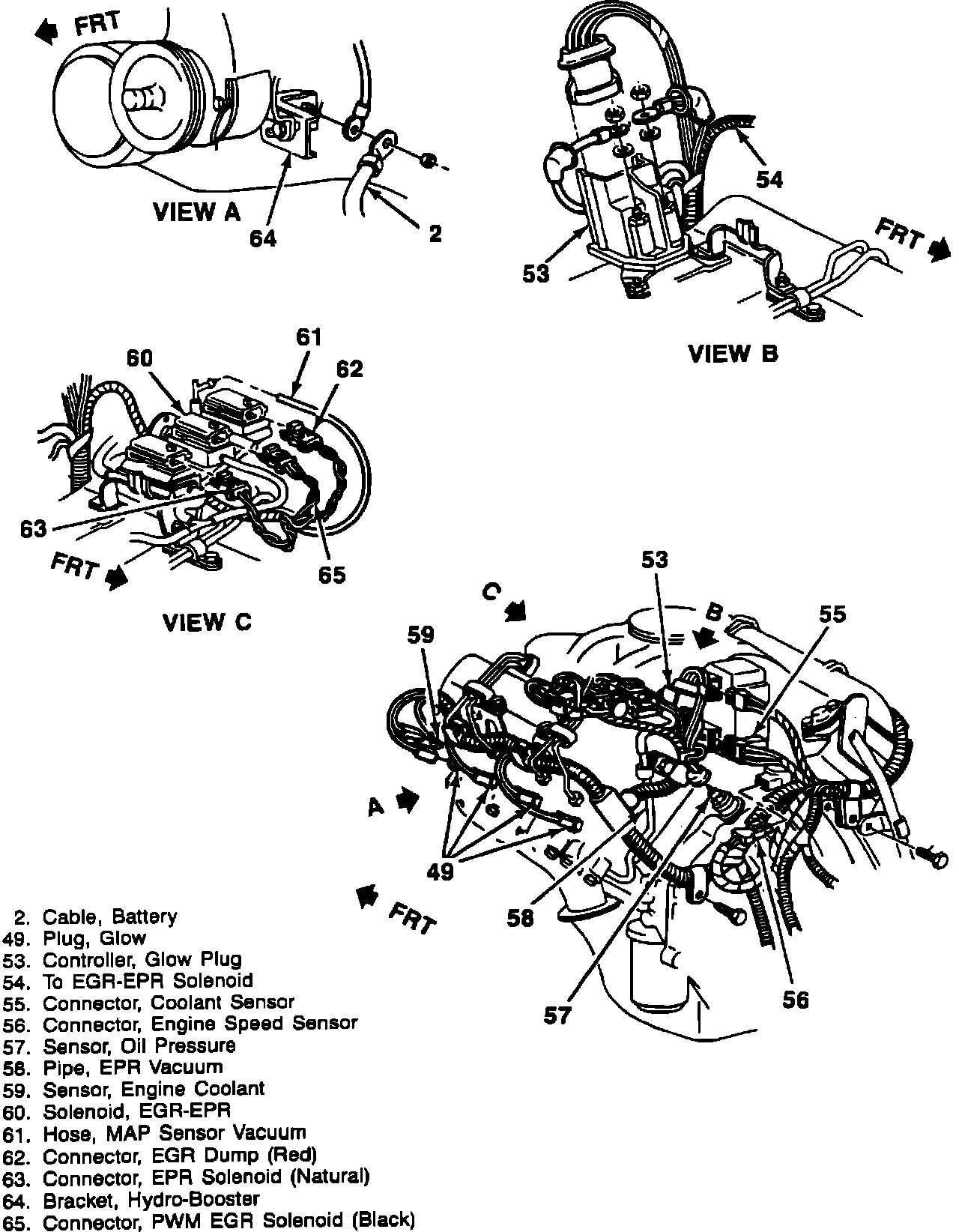

Left Side View

Pictorial View:

2. Cable, Battery
49. Plug, Glow
53. Controller, Glow Plug
54. To EGR-EPR Solenoid
55. Connector, Coolant Sensor
56. Connector, Engine Speed Sensor
57. Sensor, Oil Pressure
58. Pipe, EPR Vacuum
59. Sensor, Engine Coolant
60. Solenoid, EGR-EPR
61. Hose, MAP Sensor Vacuum
62. Connector, EGR Dump (Red)
63. Connector, EPR Solenoid (Natural)
64. Bracket, Hydro-Boost
65. Connector, PWM EGR Solenoid (Black)
