Engine Speed Sensor: Service and Repair

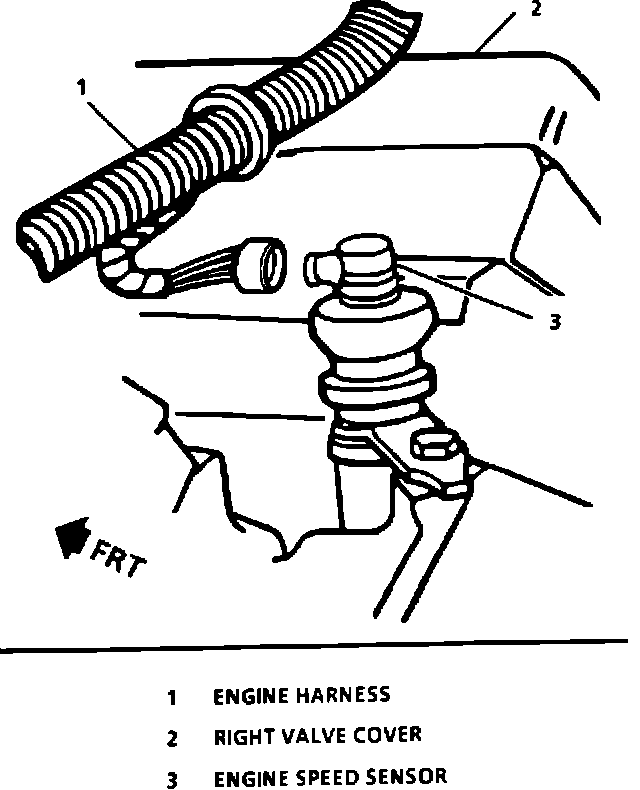

Engine Speed Sensor:

REMOVE OR DISCONNECT:
1. Negative battery cables
2. Engine speed sensor electrical connector
3. Clamp
4. Engine speed sensor

INSTALL OR CONNECT:
1. Engine speed sensor assembly and gasket
2. Clamp
3. Electrical connector
4. Negative battery cables
