Condenser HVAC: Service and Repair

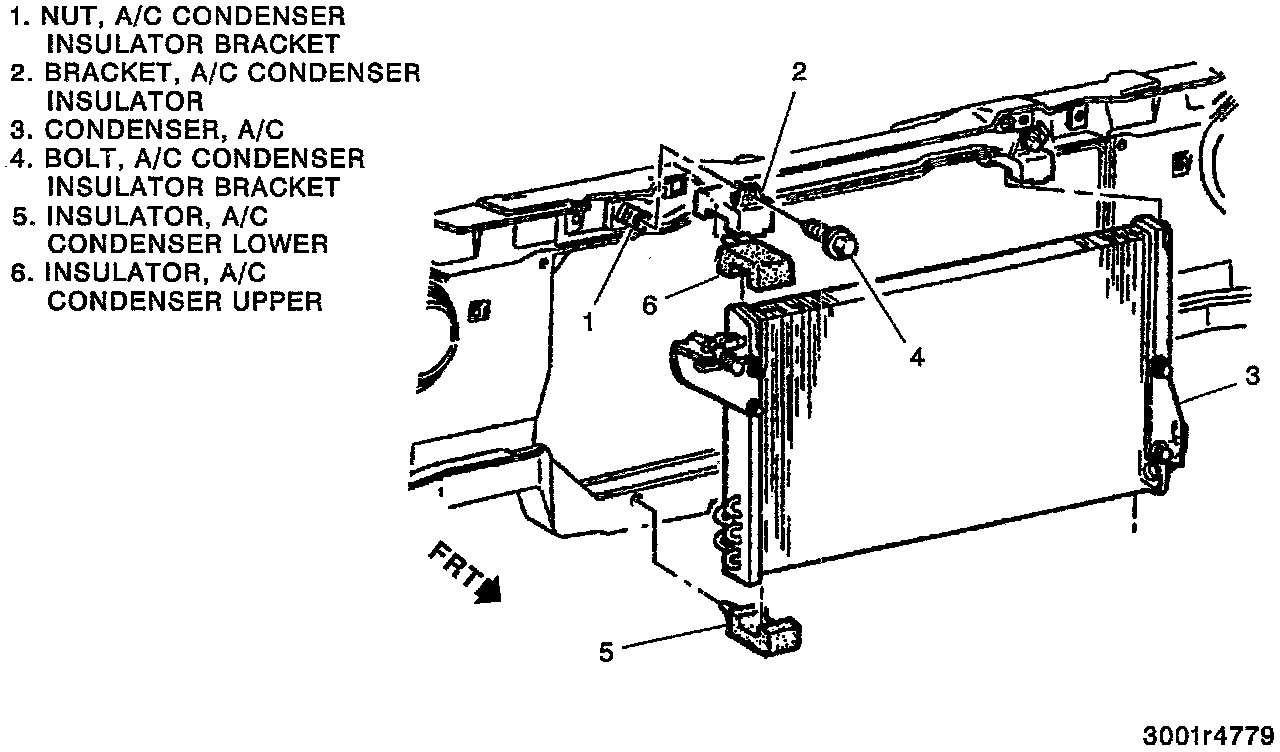

Condenser:




Evaporator Tube:






REMOVE OR DISCONNECT
1. Discharge and recover refrigerant from the system.
2. Grille and front-end panel.
3. Radiator bar support.
4. Compressor and condenser hose from the condenser.
5. Evaporator tube from the condenser.
6. Insulator bracket bolts.
7. Insulator brackets.
8. Upper insulators.
9. Condenser.

INSTALL OR CONNECT
1. Condenser. Refer to Refrigerant Oil Distribution, if replacing the condenser. Capacity Specifications
2. Upper insulators.
3. Insulator brackets.
4. Insulator bracket bolts.
^ Tighten bolts to 27 N.m (20 lbs. ft.).
5. Evaporator tube to the condenser.
6. Compressor and condenser hose to the condenser.
7. Radiator bar support.
8. Grille and front-end panel.
9. Refrigerant to the system.
^ Check the system for leaks.
